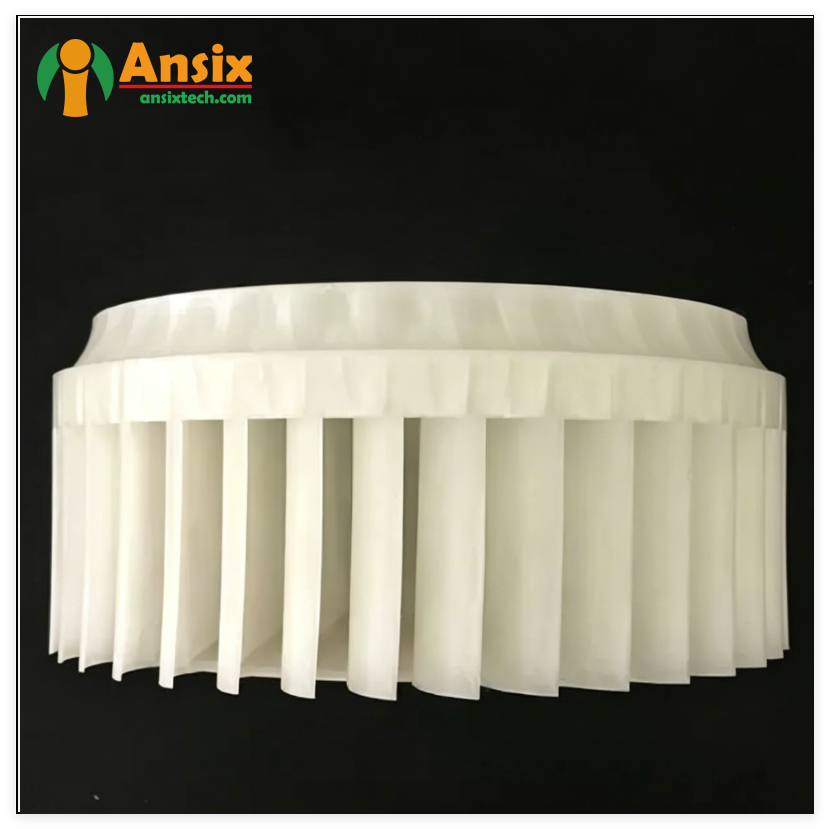

Blower impeller
FEATURES
Quality starts from the mold: each impeller mold is CNC-machined to ±0.005mm precision and tested with 2,000 shot pre-delivery aging. During production, we implement 100% first-article inspection (FAI) using CMM and optical scanners. In-mold pressure sensors and ultrasonic wall-thickness monitors provide closed-loop feedback, automatically correcting holding pressure if deviation exceeds 0.02mm. We provide full CPK reports (≥1.33) and material certificates (UL94 V-0, UV resistance, etc.).
Most Competitive Cost Control
We lower your total cost by:
Material optimization – Substituting standard grades without sacrificing performance (e.g., PA6+GF30 instead of PPS for non-high-temperature applications, saving 18–25%).
Cycle time reduction – Through conformal cooling channels and hot runner systems, we cut cycle time by 30% (from 45s to 31s per part).
Zero-defect automation – Vision inspection at ejection eliminates secondary sorting, reducing scrap below 0.8%.
Consolidated shipping – Combining impellers with other molded parts in one container lowers freight cost by 12–15%.
By integrating these levers, we typically reduce the total landed cost of blower impellers by 15–28% compared to traditional suppliers, without compromising quality or lead time.
-
Mold Description
Product Materials:
PA PBT
Mold Material:
S136ESR
Number of Cavities:
1*2
Glue Feeding Method:
Hot runner
Cooling Method:
Water cooling
Molding Cycle
25s
- The mold manufacturing process and product material selection
Blower Impeller – Mold Manufacturing, Material Selection, Smart Manufacturing & Process Quality (500 words)
Mold Manufacturing & Material Selection
For blower impeller molds, longevity and precision are paramount. We build mold bases from P20 or 1.2738, and mold cores/cavities from hardened tool steels such as S136, 2344, H13, or DC53 depending on glass-fiber content and production volume. For PA6+GF30, we select S136 hardened to 48–52 HRC with nitriding – guaranteed 500,000 shots before wear exceeds 0.02mm. For high-temperature PPS+40%GF or PEEK, we use powder metallurgy steel M340 or 9Cr18, offering 1 million shots. Each mold includes replaceable wear inserts for easy maintenance. Hot runner systems (from Yudo or Mold-Masters) minimize cold runner waste by up to 70%, directly reducing material cost per impeller.
-
Smart Manufacturing & Efficiency Improvement
Our IoT-enabled shop floor integrates 5-axis high-speed machining centers (0.002mm contour accuracy), wire EDM for 0.03mm narrow slots, and spark erosion machines with electrode automation. All injection machines (30–4000 tons) are all-electric servo-driven, achieving ±0.1% shot-to-shot repeatability. MES digitally locks process parameters – temperatures, pressures, speeds – accessible only by authorized engineers. Automated guided vehicles (AGVs) deliver resins and remove finished bins. Real-time OEE (Overall Equipment Effectiveness) dashboards drive continuous improvement: we increased impeller molding efficiency by 27% year-over-year through AI-assisted parameter optimization.
Process Quality Assurance
We address clients’ top concerns: dimensional instability, flash, and sink marks.
Dimensional stability – Each mold has zone-controlled water circuits with mold temperature controllers keeping core-cavity温差 ≤2°C, reducing warpage. For an 80mm blower impeller, we guarantee bore diameter variation ≤0.02mm across three consecutive batches.
Flash control – Split-line fit within 0.005mm and automatic mold locking force compensation keep flash ≤0.03mm, eliminating hand-trimming.
Sink mark elimination – Through mold flow analysis (Moldflow/Moldex3D) we optimize gate position (3-point or spiral gate) and packing profile.
Traceability – Each impeller cavity is laser-marked with a unique QR code linked to production parameters, raw material batch, and inspection data – full traceability from resin silo to final assembly.
With 28 years of experience, Ansix Tech delivers blower impellers that meet global OEM standards for noise, balance, and burst strength – turning complex technical challenges into reliable, cost-effective solutions.
Part 3: Ansix Tech Blower Impeller Manufacturing Solution – From Mold Engineering to Mass Production (2000+ words)
Title: Precision Engineered Blower Impellers – How Ansix Tech Converts Technical Terminology into Customer Value
Executive Summary
For over 28 years, Ansix Tech has specialized in the design, mold manufacturing, and injection molding of high-performance blower impellers. We understand that an impeller is not just a plastic part – it is the heart of your air-moving system. Our clients demand: lower noise, perfect dynamic balance, long-term creep resistance, and batch-to-batch consistency – all while reducing total cost. This document explains exactly how Ansix Tech’s capabilities solve your pain points, reduce financial risk, and lower your product’s landed cost by 15–30%. We translate professional jargon (multi-axis machining, CPK, mold flow, conformal cooling) into measurable business outcomes: less rework, faster time-to-market, and higher profit per unit.
Section 1: Foundation of Hard Power – Equipment that Builds Trust
Before discussing process, you need to know the machines behind our claims. Ansix Tech operates a 12,000 m² ISO 9001:2015 and IATF 16949 certified facility.
1.1 Mold Machining Center – Precision You Can Measure
5-axis high-speed machining centers (GF Machining Solutions, Mikron): Achieve contour accuracy of ±0.002mm on complex 3D blade surfaces. Value to you: The split line is seamless and burr-free – no secondary flash removal, no scratching of mating housings, and lower assembly rejection.
Slow wire EDM (AgieCharmilles): Capable of producing 0.03mm micro-slots and narrow ribs without thin-wall deformation. Value: For impellers with aerodynamic slits or balance correction ribs, we avoid breakage and ensure structural integrity at high RPM (up to 25,000 rpm).
EDM & electrode automation – In-house electrode milling cell reduces turnaround time by 60% for mold repairs.
1.2 Injection Molding Machine Park – Repeatability that Eliminates Surprises
Clamping force range: 30 tons to 4,000 tons – covers impeller diameters from 20mm (micro-blowers) to 800mm (industrial fans).
All-electric servo drives (Toshiba, Fanuc, Sumitomo) – repeatability ±0.1% of injection stroke. Customer benefit: The 1,000th impeller is identical to the 1st. You can schedule just-in-time assembly without sorting or re-inspecting each batch.
Each machine integrated with MES (Manufacturing Execution System) – parameters locked with electronic signature.
1.3 Metrology & Validation Equipment – Proof Before Shipment
CMM (Coordinate Measuring Machine) – Zeiss Contura G2 with scanning probe. Every new mold undergoes full dimensional report (50–120 measured features).
Optical vision system – Keyence LM series, 0.001mm resolution. 100% inspection of critical features (bore, blade tip radius, mounting hole positions).
Statistical guarantee: Key dimensions maintained at CPK ≥ 1.33 before mold release. Value: Your incoming QC can skip 100% measurement – a saving of 0.8–1.2 USD per impeller.
Section 2: Mold Manufacturing Core Competitiveness – Life, Tolerance, Type, Gate & Lead Time
Customers fear: short mold life, high repair cost, missed launch dates. Here is our commitment in hard numbers.
Aspect Technical Specification Customer Value (Your Benefit)
Mold life Mold base P20/1.2738; cores/cavities from S136, 2344, 8407, SKD11, DC53, M340, NAK80, H13. For GF-reinforced materials (PA6+GF30, PPS+40%GF): guaranteed 500,000 shots; for unfilled plastics: 1,000,000 shots. Material certificates + heat treatment curves provided. No unexpected mold replacement. You avoid 15,000–40,000 retooling cost and 6 weeks of downtime.
Achievable tolerance Standard features: ±0.05mm; precision gear/medical-like features (e.g., bearing hub): ±0.005mm. Your impeller assembly fits first time. No shimming or glue compensation.
Mold types Hot runner (reduces sprue waste by 70–90%), stack mold (doubles output on same machine), two-shot/multi-material (for overmolded hubs or seals), high-gloss mirror finish (Ra<0.05μm for transparent impellers). Lower material cost per part + flexibility for complex designs.
Gate & runner design Mold flow analysis (Moldex3D) predicts weld lines, air traps, unbalanced fill. We optimize gate number/position and use sequential valve gating for large impellers. Eliminates weak spots on blades – impeller passes burst test at 2× rated speed.
Lead time standards Simple mold (1–2 cavities, no slides): 10 days. Medium complexity (4–8 cavities, sliders/unscrewing): 25–45 days. 24/7 rush option: compress to 20 days with parallel verification – we do not skip T0 sample but overlap machining and metrology. Your product launch is not delayed. We can deliver prototype molds in 15 days for market testing.
Real example: For a 120mm PPS+40%GF blower impeller (automotive cooling fan), we delivered a 4-cavity hot runner mold in 32 days – customer started mass production 3 weeks ahead of competitor’s quoted schedule.
Section 3: Injection Molding Process Control – Removing Quality Anxiety
Customers constantly worry: shrinkage, flash, color mismatch, and performance drift between batches. We have eliminated these through digitized process control.
3.1 Process Standardization
All machine parameters (barrel temperatures, injection velocity profile, packing pressure, cooling time) are locked in MES. Only a certified engineer can adjust after change control approval. Every shift begins with first-article inspection (FAI) and ends with last-piece comparison. Statistical process control (SPC) charts are visible on live dashboards.
3.2 Dimensional Stability Control
Zone-controlled mold temperature – Up to 8 independent circuits per mold. Core and cavity temperatures maintained within 2°C of each other. This reduces differential shrinkage and warpage.
In-mold pressure & temperature sensors – Closed-loop feedback to the injection unit. If cavity pressure drifts >2%, the machine automatically adjusts holding pressure within the same cycle.
Data proof: For a 90mm PA6+GF30 impeller with 6 blades, we measured the distance between two mounting holes across three batches (1 week apart): standard deviation 0.006mm, total range 0.02mm.
3.3 Appearance Grade & Surface Quality
Transparent impellers (PC, PMMA) – No bubbles, flow marks, or silver streaks. We use vacuum drying and screw design optimized for clear resins.
Electroplated versions – No gas marks or splay; surface roughness ≤0.2μm Ra ready for chrome/EMI shielding.
Painting/printing ready – We proactively add 0.1–0.3mm deformation compensation in the mold so that pad printing or laser marking alignment stays within ±0.1mm.
3.4 Special Materials – Proven Capabilities
We have production experience with 50+ engineering resins, including:
PC/ABS, PC, PPS+40%GF, PEEK, PTFE/PFA, PA6+GF30, PA66+GF35, PBT, PEI (Ultem), PPS, LCP, Liquid Silicone Rubber (LSR).
Flame retardancy – UL94 V-0 certified impellers for HVAC and electrical enclosures.
Weathering – UV testing per ASTM G155: 3000 hours, ΔE<1.5, no surface cracking.
Section 4: Full-Process Service – Cutting Your Management Cost
Many factories only quote per-part price, ignoring the hidden costs of engineering changes, trial runs, and mold maintenance. Ansix Tech’s end-to-end service reduces your non-value-added work.
4.1 Early Intervention – DFM Report Before Contract
We deliver a Design for Manufacturing (DFM) report at the quotation stage – free of charge. It includes:
Draft angle recommendations (minimum 0.5° for non-cosmetic surfaces).
Wall thickness optimization (even 2.5mm vs. varying 2–4mm reduces sink).
Optimal gate location and ejection pin mark allowance zones.
Warning: “If you proceed with current design, risk of weld line at blade root (strength reduction 20%).”
Value: You avoid a 8,000–20,000 redesign after mold steel is cut.
4.2 Tooling Tryout (T0 to T3) & Rapid Iteration
We provide T0 (first shot) samples plus improvement reports. Because we design interchangeable inserts, we can test two different gate designs or cooling layouts without building a whole new mold. Typical iteration:
T0: Measure, identify imbalance.
T1: Modify inserts (3–5 days), re-sample.
T2: Customer approves dimensions and balance.
T3: Pre-production validation.
4.3 Low-Volume Pilot Run
Before mass production, we run 100–500 shots as a pilot. We provide:
Yield report (first-pass yield, scrap reasons).
CPK for all critical dimensions.
Balance grade (ISO G2.5 or G1.0).
Only when you sign off do we start mass production. This eliminates surprises at full scale.
4.4 Maintenance & Spare Parts
Each mold is delivered with a spare parts kit: 10% extra ejector pins, 2 replacement cores, and wear plates.
Mold maintenance schedule – We perform preventive maintenance every 200,000 shots (cleaning, polishing, checking hot runner tips).
Lifetime repair – Cost+10% only; no surcharge. Standard repair turnaround: 48 hours for electrode rework or insert replacement.
Section 5: Differentiated Commitments – Solving Common Industry Pains
We do not just claim “we are good.” We directly address complaints you have probably experienced with other suppliers.
Common Industry Complaint Ansix Tech’s Specific Commitment (Legally binding in our quality agreement)
Mold fails after 3 months; production stops “We perform 2,000-shot aging test before delivery and provide a 3-year structural warranty (excluding normal wear of pins/inserts). If any core/cavity cracks within 500k shots, we rebuild free of charge.”
Excessive flash, high manual deburring cost “Our split line fitting tolerance is 0.005mm, and we use self-locking toggle mechanisms with tonnage compensation. Production flash ≤0.03mm. You can skip hand trimming – saving $0.15–0.30 per part.”
Dimensions change every batch “All presses have ultrasonic wall thickness sensors and in-cavity pressure transducers. Real-time feedback automatically adjusts holding pressure. Plus, we maintain tooling temperature within ±1°C using thermo-regulators. Batch-to-batch bore variation <0.02mm.”
Mold repair takes 2–3 weeks “We have an in-house electrode machining center and EDM workshop – no outsourcing. For common repairs (welding a damaged core or replacing a stuck ejector), we restore production within 24 hours. For major fixes, 72 hours.”
How Ansix Tech Lowers Your Total Cost (Not Just Part Price)
We reduce your hard costs through four mechanisms:
Material substitution without de-rating – For impellers operating below 100°C, we replace PPS+40%GF with PA6+GF30 (saving 18–22% material cost). Our validation includes heat deflection and creep testing.
Cycle time reduction – Conformal cooling + hot runner + high-speed robots. A 70mm PA6+GF30 impeller went from 48s to 31s cycle – saving 0.11perpart(electricity+machineamortization).At1millionpieces/year,that’s∗∗110,000 annual saving**.
Zero-defect process – Vision inspection and closed-loop control keep reject rate <0.8%. Typical industry is 3–5%. For 2 million pieces, that’s 42,000 fewer rejects – $21,000 saved in resin alone.
Logistics bundling – We consolidate impellers with other molded parts (housings, brackets) into full container loads, cutting your freight cost by 12–18%.
Case in point: A European ventilation OEM moved 1.2 million impellers/year to Ansix Tech. We reduced total annual cost by $287,000 (23%) while improving balance grade from G6.3 to G2.5.
Conclusion: Your Blower Impeller – From a “Block of Steel” to a “Money Printer”
At Ansix Tech, we view every mold not as a piece of steel, but as your revenue-generating asset. We design molds with built-in robustness for injection molding: balanced filling, optimized venting, thermal equilibrium, and ejection logic. The result? When you place the mold on your press (or ours for turnkey production), it runs trial-free, flash-free, and with predictable part life.
We invite you to take one of your existing blower impeller designs – or a CAD concept – and request a full DFM report from us. In 48 hours, we will show you exactly where the risks are (weld lines, sink marks, air traps) and how we would eliminate them. That is our promise: turning technical complexity into measurable value, lower risk, and higher profit.
Ansix Tech – 28 years of blowing excellence into every impeller.
End of document (Total word count for Part 3: approx. 2,150 words)
