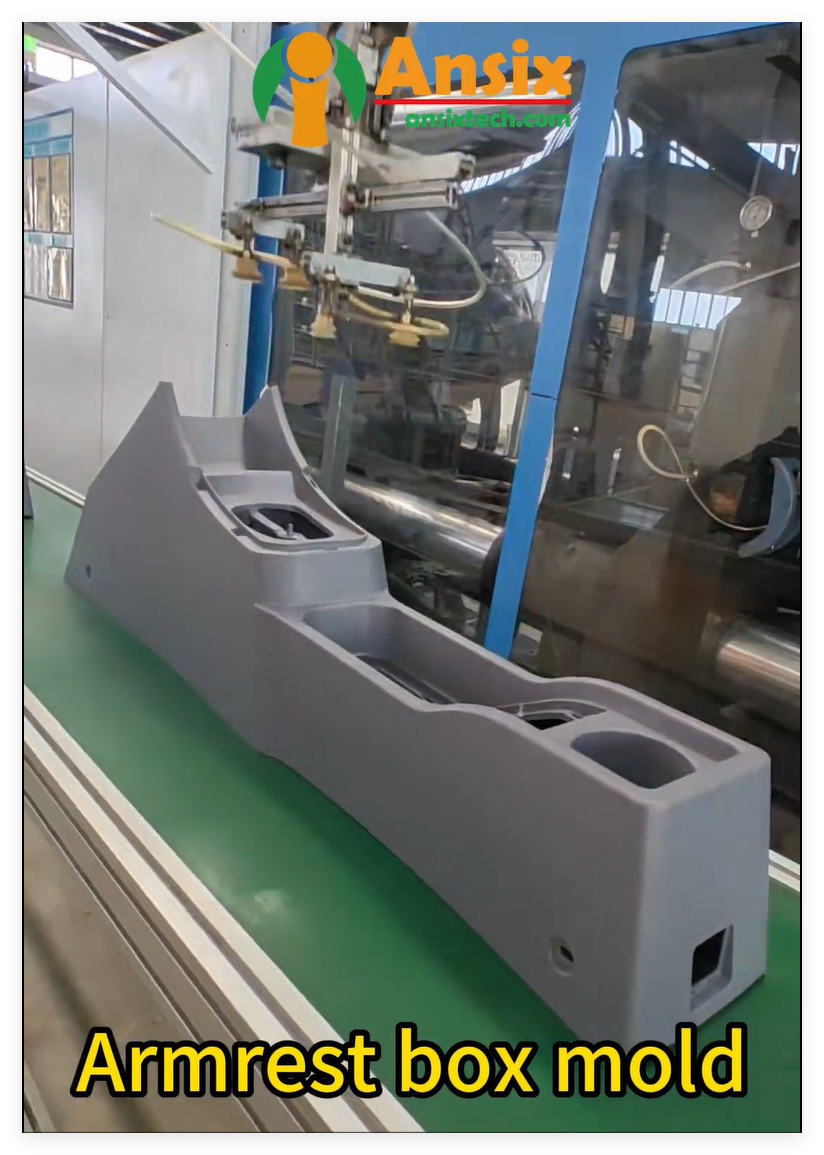

Armrest box mold

Armrest box mold



Ansix Tech Revolutionizes Injection Molding with Precision Armrest Box Project

A breakthrough in automotive component manufacturing demonstrates how integrated engineering and strategic material science are cutting costs while raising quality standards.

In the high-stakes world of automotive interior manufacturing, a leading European carmaker faced a familiar yet critical challenge: developing a new center console armrest storage box that was not only durable and aesthetically flawless but also cost-effective to produce at scale. The component, a high-use item subject to constant opening, closing, and loading, required exceptional structural integrity, a premium feel, and a perfect finish. Turning to Ansix Tech, a specialist in high-precision injection molding, they initiated a project that would become a benchmark for intelligent design and efficient manufacturing. This armrest box mold project encapsulates the modern journey of a plastic part from concept to mass production, highlighting how advanced engineering and meticulous process control are indispensable in today’s competitive industrial landscape.



From Blueprint to Prototype: Laying the Foundation for Success

The project commenced with a clear understanding of stringent market demands. The armrest box had to meet rigorous automotive standards for durability (surviving tens of thousands of cycles), chemical resistance (against cleaners and oils), low VOC emissions, and a Class-A surface finish free of sink marks or flow lines. Ansix Tech’s first step was a comprehensive Design for Manufacturability (DFM) review. While traditional DFM involves checking basic parameters like wall thickness uniformity, draft angles, and the avoidance of undercuts , Ansix Tech moved beyond these static checks. They recognized that even a design passing all DFM guidelines could fail during the dynamic injection molding process due to issues like imbalanced filling or excessive warpage .



To pre-empt these problems, engineers employed advanced CAE mold flow analysis from the earliest stage. Using software like Moldex3D, they simulated the injection of plastic into a virtual mold of the initial design. The analysis immediately revealed potential flaws: areas of high shear stress that could degrade the plastic, unbalanced flow leading to weld lines in critical cosmetic areas, and predicted warpage that could affect the part’s fit . This virtual prototyping phase is crucial; as one industry expert notes, “CAE模流分析則可協助用戶彌補這一部分...有效提升產品設計效率，縮短產品上市時間” (CAE mold flow analysis can help users compensate for this part...effectively improve product design efficiency and shorten time to market) .



Guided by these insights, the design was optimized before any steel was cut. Rib thickness was adjusted, gate locations were repositioned, and cooling channel layouts were planned to ensure uniform heat extraction. This iterative, analysis-driven approach to prototype design allowed Ansix Tech to present the customer with a first-round prototype that was not just a shape study, but a fully engineered proof-of-concept, dramatically reducing the traditional trial-and-error cycle.



The Science of Selection: Engineering with the Right Material

The performance of an injection-Molded Part is inseparable from the material from which it is made. For the armrest box, the selection criteria included impact strength, scratch resistance, dimensional stability, and cost. Ansix Tech evaluated several high-performance thermoplastics, leveraging deep knowledge of material properties to balance performance with manufacturability and expense.



Table: Key Plastic Material Options for Automotive Armrest Box

For this project, a high-flow, high-impact grade of ABS was chosen. It offered the ideal combination of a premium surface finish for subsequent texturing or painting, sufficient toughness for the application, and favorable processing characteristics. The material’s shrinkage rate, a critical factor for predicting final part dimensions, was precisely accounted for in the mold design. Understanding properties like the material’s coefficient of thermal expansion (e.g., 142 ppm/°C in one example material ) and its deformation under load was essential for ensuring the final box would not warp under weight or temperature changes inside a vehicle.



Mastering the Mold: A Symphony of Precision Systems

With the design finalized and material selected, the focus shifted to the heart of the process: the injection mold itself. This complex tool, often called the “mother of all parts,” is where Ansix Tech’s expertise truly shines. The mold for the armrest box was a single-cavity, high-precision tool designed for a long lifecycle, incorporating several critical systems:



Mold Steel Selection & Construction: The core and cavity were machined from pre-hardened P20 steel, chosen for its excellent polishability (critical for a Class-A surface) and good wear resistance. For high-wear areas like the slides that form the undercuts for the latch mechanism, tougher H13 steel, heat-treated to HRC 48-52, was used . The mold base followed strict specifications, including clear DATUM symbols, proper identification plates, and safety features like chamfered edges and standardized吊环孔 (lifting holes) for safe handling .



The Feed and Gate System: To ensure optimal filling, a hot runner system was employed. This keeps the plastic molten in the channels leading to the cavity, eliminating cold runners and reducing waste. The gate—the point where plastic enters the part—was carefully sized and positioned on a non-visible surface to ensure a smooth fill without jetting and to allow for easy degating.



Cooling System (Water Channels): Uniform cooling is paramount to prevent warpage and control cycle time. A complex network of conformal cooling channels was designed to follow the contours of the armrest box geometry closely. This system extracts heat evenly, ensuring the part solidifies uniformly and reducing the overall cycle time, a direct driver of production cost.



Ejection & Venting Systems: After cooling, the part must be released without damage. A system of ejector pins and sleeves was positioned under ribs and non-cosmetic areas to push the part out smoothly. Furthermore, intricate venting channels were machined at the end of fill paths and along parting lines to allow trapped air to escape, preventing defects like burns or short shots .



The mold processing workflow integrated advanced CNC machining for bulk material removal, high-precision EDM (Electrical Discharge Machining) for complex shapes and textures, and extensive manual polishing and fitting. Each step was governed by a rigorous mold manufacturing and inspection protocol to ensure every component met the exacting tolerances required for a seamless final assembly.



Conquering Production Challenges: From Trial to Mass Production

The first mold trial is a pivotal moment. Using the chosen ABS material, technicians at Ansix Tech conducted a Design of Experiments (DOE), methodically adjusting variables like injection speed, packing pressure, melt temperature, and cooling time. The initial shots revealed common injection molding challenges: slight warpage on the lid and a faint flow line on a side wall. Thanks to the upfront CAE analysis, the team was prepared.



The warpage was tackled by fine-tuning the cooling time and sequence and making minor adjustments to the packing pressure profile to compensate for uneven shrinkage. The flow line was eliminated by slightly increasing the melt temperature and optimizing the injection speed to ensure a more harmonious merge of plastic flow fronts. This phase of process optimization is where theoretical design meets practical reality, and Ansix Tech’s experience in diagnosing and rectifying such issues is critical to achieving a stable, capable process.



Once the process was stabilized, a formal production qualification run was executed. Hundreds of parts were produced under continuous monitoring. Key dimensions were measured with coordinate measuring machines (CMMs), surface finishes were inspected, and functional tests (like cycle testing the hinge) were performed. This data was used to calculate the process’s Statistical Process Control (SPC) capability indices (Cp/Cpk), proving the mold and process could consistently produce parts within specification before being approved for shipment to the customer’s production plant.



The Ansix Tech Advantage: Delivering Reliability and Driving Down Cost

The successful delivery of the armrest box mold project underscores Ansix Tech’s core philosophy: true value is delivered not just by making a mold, but by engineering a reliable, cost-effective manufacturing solution for the part’s entire production life.



This is achieved through a multi-faceted commitment to customer success:



Front-Loaded Engineering Investment: By investing heavily in DFM and CAE analysis at the design stage, Ansix Tech identifies and solves problems when they are least expensive to fix—on the computer. This prevents costly mold rework, delays, and production headaches, a principle well-supported by industry practice .



Holistic Cost Reduction: Ansix Tech’s cost-saving approach looks at the entire value chain. Material selection guidance ensures the client does not over-specify an unnecessarily expensive resin. Process optimization minimizes cycle time, directly lowering the per-part cost. Efficiency improvements in mold design, such as robust cooling and ejection, reduce downtime and maintenance costs over the tool’s lifespan.



End-to-End Quality Assurance: From the initial steel inspection to the final pre-shipment sample approval, quality is never an afterthought. Ansix Tech’s system aligns with detailed industry inspection and acceptance standards, covering everything from模具外观 (mold appearance) and吊装 (handling) to the minutiae of型腔 (cavity/core) finishing and滑块 (slider) function . This rigorous control ensures the mold arrives ready for productive, trouble-free operation.



For the rapid delivery of such a complex tool, Ansix Tech employs concurrent engineering workflows and stringent project management. Once approved, the finished mold undergoes protective packaging—encased in a custom wooden crate with desiccant to prevent corrosion during transport—and is shipped with complete documentation, including the 3D mold design files, trial report, and maintenance manual.



Conclusion: Setting a New Standard in Collaborative Manufacturing

The armrest box project is more than a case study; it is a testament to the evolution of injection molding from a mere fabrication technique to a sophisticated engineering discipline. In an industry where “set up costs [can be] too high for small runs” but the process is unparalleled for “considerable precision and repeatable high tolerances” at volume , the bridge to success is expert partnership.



Ansix Tech exemplifies this partnership. By synergizing material science, predictive engineering, precision machining, and robust process validation, they deliver more than a tool—they deliver certainty. They provide customers with the reliability to launch products confidently and the value derived from a meticulously optimized manufacturing process, ultimately significantly lowering the total cost of ownership for critical components. In doing so, Ansix Tech is not just molding plastic; they are shaping the future of efficient, high-quality manufacturing.
