Precision Engineering Meets Cost Efficiency: Inside Ansix Tech's Brine Shrimp Tube Manufacturing Revolution

In the highly competitive world of precision injection molding, a single project can exemplify an entire company's philosophy. Ansix Tech's recent brine shrimp storage and collection tube mold project has become a case study in how cutting-edge engineering can drive down costs without compromising quality, setting a new standard for the industry.

In the specialized world of aquaculture and scientific research, the humble brine shrimp plays a surprisingly vital role. These tiny crustaceans serve as essential live feed for fish farms and as valuable specimens for laboratory studies. Their storage and collection demand specialized equipment that is both precisely functional and economically viable. For Ansix Tech, a leader in precision injection molding, the challenge of manufacturing these components became a showcase of their entire engineering philosophy—where every design decision, material choice, and process optimization is scrutinized through the dual lenses of performance and cost-efficiency.



The brine shrimp storage and collection tube project, developed for a leading aquaculture equipment supplier, exemplifies how modern manufacturing transcends simple part production. It represents a holistic partnership where the molder’s expertise fundamentally shapes the product's success. From the initial CAD model to the final packaged shipment, Ansix Tech deployed a comprehensive strategy that married scientific molding principles with strategic business insights, ultimately delivering a superior product at a reduced total cost.



1 The Engineering Blueprint: From Concept to DFM Validation

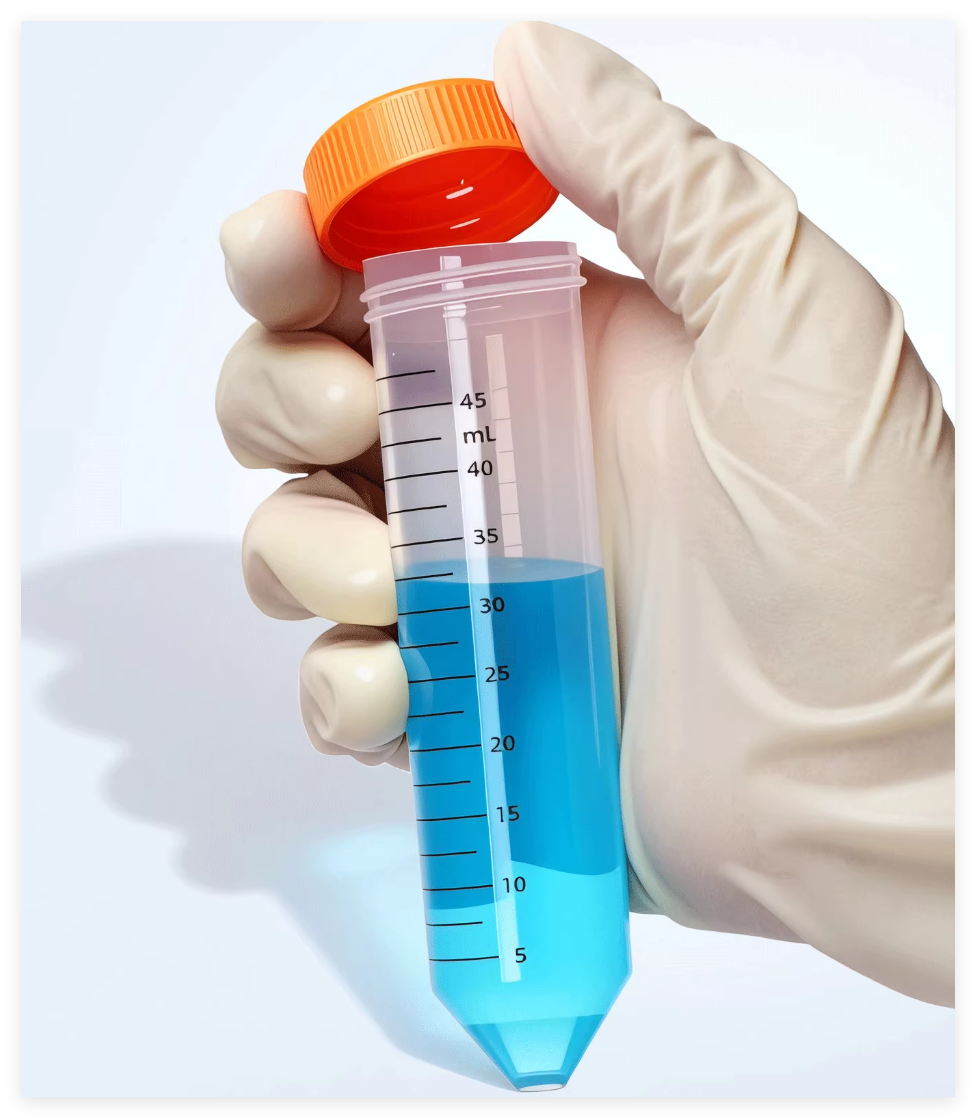

The project began not with steel and plastic, but with pixels and parameters. The client’s initial design for the storage tube—a cylindrical container with integrated handling features—and the collection tube—a funnel-like component with fine filtration elements—presented several classic injection molding challenges. Ansix Tech's engineering team immediately engaged in a collaborative Design for Manufacturability (DFM) review, a critical phase where up to 80% of a product’s final cost is determined.



Adhering to foundational DFM principles was paramount. The team’s first action was to enforce uniform wall thickness across both components. As industry guidelines state, maintaining consistent walls (typically 1–3 mm) is essential to prevent defects like warping, sink marks, and internal stresses during cooling. For the storage tube, this meant strategically relocating external reinforcement ribs. Inspired by designs in seafood transport containers, the team specified ribs that protruded outward, ensuring the crucial internal surface remained perfectly smooth—a non-negotiable requirement to prevent injury to delicate brine shrimp.



Furthermore, a minimum draft angle of 1.5 degrees was applied to all vertical surfaces. This slight taper, often overlooked in early designs, is critical for ensuring clean, damage-free part ejection from the mold. Simultaneously, sharp corners were replaced with fillets of at least 0.5 mm radius. This simple change reduces stress concentrations in the final plastic part and, just as importantly, improves the flow of molten plastic during injection, reducing the pressure required to fill the mold.



The culmination of this phase was a comprehensive Mold Flow Analysis (MFA). This sophisticated simulation software predicted how the plastic would behave inside the mold. Engineers analyzed fill patterns, identified potential weld lines (weak spots where melt fronts meet), and pinpointed areas at risk of air traps or excessive shrinkage. By virtually correcting these issues before cutting any steel—such as repositioning gates and optimizing cooling channel layouts—Ansix Tech eliminated costly, time-consuming mold rework. This digital validation is the cornerstone of their "right-first-time" manufacturing approach, directly translating to lower development costs and faster time-to-market for the client.



2 Strategic Material Selection: Balancing Performance and Economics

Selecting the right plastic material is a decisive factor that influences part performance, manufacturability, and ultimate cost. For the brine shrimp tubes, the operational environment—constant exposure to saltwater, biological matter, and requiring repeated sterilization—dictated a narrow field of candidates.



After rigorous testing, Ansix Tech recommended Polypropylene (PP) for the primary components. PP offers an exceptional balance of chemical resistance, durability, and favorable processing economics. Its low density translates to more parts per kilogram of raw material, a direct cost saving. More importantly, PP’s excellent flow characteristics allow it to fill thin-walled sections and complex geometries more easily, enabling the use of lower injection pressures and reducing wear on the mold itself.



For critical, high-wear components like the collection sieve, a glass-filled nylon was specified. The addition of glass fibers dramatically increases the material’s stiffness, dimensional stability, and resistance to abrasion. While this engineering-grade material carries a higher per-kilogram cost, its longevity and performance in the demanding application prevent frequent replacement, offering a lower total cost of ownership for the end-user.



Ansix Tech’s cost-saving acumen was particularly evident in their procurement strategy. Instead of opting for premium, tightly-specified resin, they worked with material suppliers to select a "wide-specification" grade of PP. This material, while perfectly suited for the application, has a slightly broader range of acceptable properties (like melt flow index) and is therefore less expensive. To manage the inherent variability of this resin, the company relied on its robust process controls and cavity pressure sensors to automatically adjust molding parameters in real-time, ensuring consistent part quality despite material fluctuations.



Table 1: Key Material Properties for Brine Shrimp Tube Components

3 The Heart of the Process: Precision Mold Design and Fabrication

With the design and material finalized, the focus shifted to creating the mold—the high-precision, steel tool that would define the production of thousands of parts. Ansix Tech views a mold not merely as a part-forming tool, but as a complex "pressure vessel and heat exchanger".



Steel selection was the first critical decision. For the majority of the mold cavities and cores, a pre-hardened P20 tool steel was chosen. It provides an excellent balance of machinability, polishability, and durability for high-volume PP production. For the intricate, fragile core pins that formed the sieve’s micro-holes, a more expensive hardened H13 steel was used. Its superior wear resistance ensures these delicate features maintain their precision over the entire production run, avoiding costly downtime for mold repairs.



The mold's efficiency is largely dictated by its cooling system. Ansix Tech engineers designed a conformal cooling channel layout that followed the contours of the part geometry as closely as possible. This maximizes heat extraction, which is critical because approximately 80% of the injection molding cycle is dedicated to cooling. By implementing a turbulent water flow and connecting the mold to high-performance temperature controllers, the team achieved a faster, more uniform cooling rate. This directly shaved seconds off each cycle—a saving that, multiplied over hundreds of thousands of cycles, represents a massive reduction in energy and machine time costs.



The runner and gate system was engineered for minimal pressure loss and material waste. A hot runner system was employed for the storage tube, eliminating the solid plastic sprue and runners associated with cold runners. This means 100% of the injected plastic is used to make saleable parts, drastically reducing scrap. The gates—the entry points where plastic enters the part cavity—were carefully sized and positioned to ensure balanced filling without visual defects or excessive shear stress on the material.



Finally, a robust ejection system was designed. It incorporated numerous, strategically placed ejector pins and sleeves to apply even force across the part, ensuring it released cleanly from the mold without distortion or sticking, even at the aggressive cycle times targeted for production.



4 Mastering the Cycle: Process Optimization and Validation

The transition from a finished mold to volume production is a science in itself. Ansix Tech follows a rigorous Scientific Molding approach to develop a stable, repeatable, and optimized process.



The initial Process Validation followed a meticulous protocol. Technicians began by establishing a baseline with conservative parameters, then systematically refined each variable:



Melt & Mold Temperature: Optimized to ensure complete flow without degrading the polymer.



Injection Speed & Pressure: Profiled to fill the cavity smoothly (preventing "jetting") while using the minimum necessary pressure.



Packing & Holding Time: Precisely calculated to compensate for material shrinkage without over-packing the mold.



Cooling Time: The single largest time component, was minimized to the point where the part was rigid enough to eject without distortion.



The goal was to find not just a single workable setting, but a robust process window. This is the range within which parameters can fluctuate (due to normal material or machine variances) without producing defective parts. A wide process window, achieved through expert setup, is a primary defense against future scrap and downtime.



A key optimization was cycle time reduction. By leveraging the efficient cooling system and fine-tuning every sequential step—from mold closing and injection to ejection—the team minimized non-productive time. Reducing the cycle by even two seconds can increase output by thousands of parts per month, spreading fixed costs over more units and directly lowering the client’s piece-part price.



5 Embedded Quality and Seamless Delivery

Quality control at Ansix Tech is not a final inspection but a process-embedded discipline. From the first shots in the T1 trial mold, quality engineers were involved. Using coordinate measuring machines (CMM), they verified that critical dimensions like tube diameter, sieve hole size, and assembly interfaces were within the tight tolerances specified by the client’s drawings.



During production, quality is built into the process through continuous monitoring. Cavity pressure sensors inside the mold provide a fingerprint of every single shot. If a cycle deviates from the established pressure curve—indicating a potential issue like a partial blockage or variation in material viscosity—the machine can be programmed to automatically reject that part and alert an operator. This "in-mold" quality assurance prevents defects from moving downstream, eliminating the massive costs associated with sorting, rework, or customer returns.

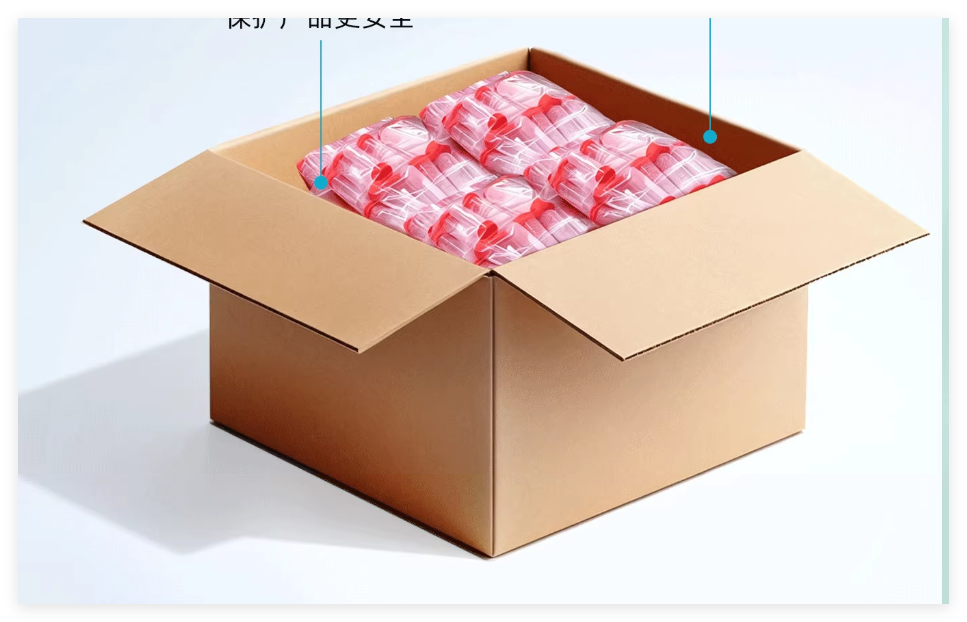

The final logistical step, packaging and delivery, was also engineered for efficiency and value protection. Parts were automatically sorted and placed into custom, recyclable cartons that provided secure cushioning during transit. Ansix Tech’s integrated logistics team ensured rapid dispatch, leveraging their supply chain partnerships to meet the client’s just-in-time delivery requirements without expedited shipping fees. This end-to-end control eliminates hidden costs and surprises.



6 The Ansix Tech Advantage: A Partnership for Value

The brine shrimp tube project underscores that Ansix Tech’s value proposition extends far beyond operating injection molding machines. It is a comprehensive engineering partnership dedicated to driving out cost at every conceivable point.



Their cost-reduction strategy is multifaceted:



Strategic Material Science: Recommending fit-for-purpose materials and leveraging wide-spec resins without compromising performance.



Preventative Digital Engineering: Using DFM and Mold Flow Analysis to eliminate costly errors before manufacturing begins.



Mold-Focused Efficiency: Designing molds for fast cycling, minimal scrap, and long-term durability.



Scientific Process Control: Developing robust, automated processes that maximize yield and consistency.



Total Cost Transparency: Partnering with clients to understand and minimize the total cost of ownership, not just the unit price.



“Every project is an opportunity to refine our formula for delivering uncompromising quality at a competitive cost,” says a senior Ansix Tech engineer. “The brine shrimp tubes are a perfect example. By integrating our design, material, and processing expertise from day one, we created a more reliable product for the end-user and a more profitable one for our client. That’s the true measure of value in modern manufacturing.”



In an industry where margins are tight and competition is global, Ansix Tech demonstrates that the path to success is not through cutting corners, but through smarter engineering, deeper collaboration, and an unwavering commitment to building value into every single component they produce.
