Engineering Excellence: How Ansix Tech Transforms Cable Clamp Production Through Advanced Injection Molding

In an era where efficiency and cost-effectiveness are paramount for manufacturing competitiveness, the injection molding industry stands as a critical pillar of modern production. For components as ubiquitous and demanding as cable management solutions, the journey from raw polymer to a reliable, high-volume product is a testament to precision engineering and strategic optimization. This article delves into the comprehensive process behind Ansix Tech's manufacturing of the Cable Clamp - 8P, a project that exemplifies how deep technical expertise, from material science to Mold Design and process control, can dramatically reduce component costs while ensuring unwavering quality and rapid delivery.

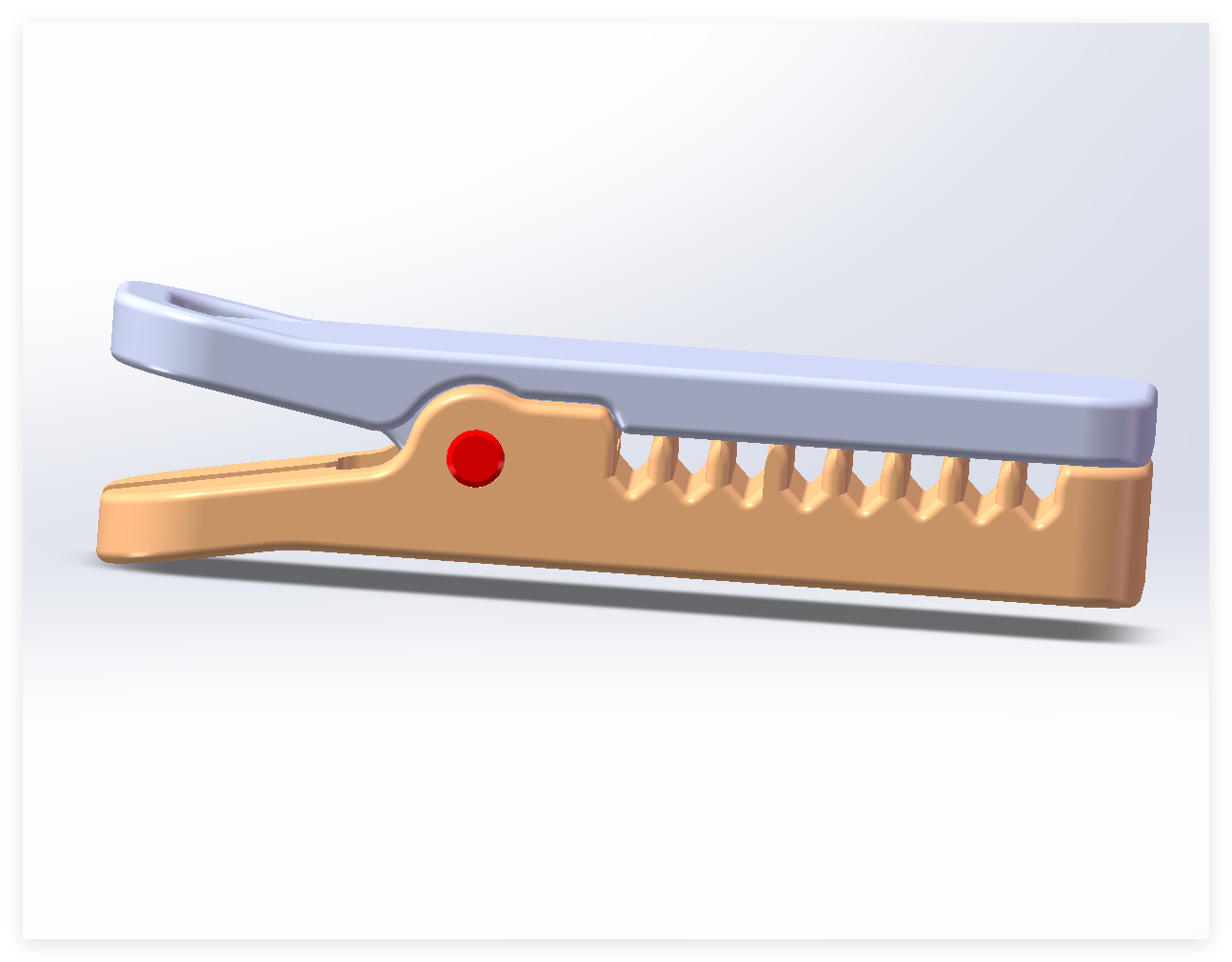

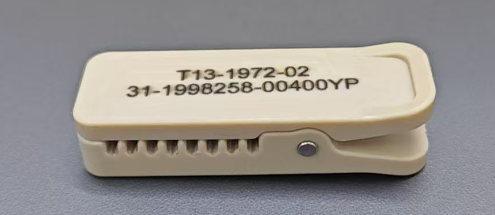

The Blueprint: Strategic Design and Prototyping for the Cable Clamp - 8P

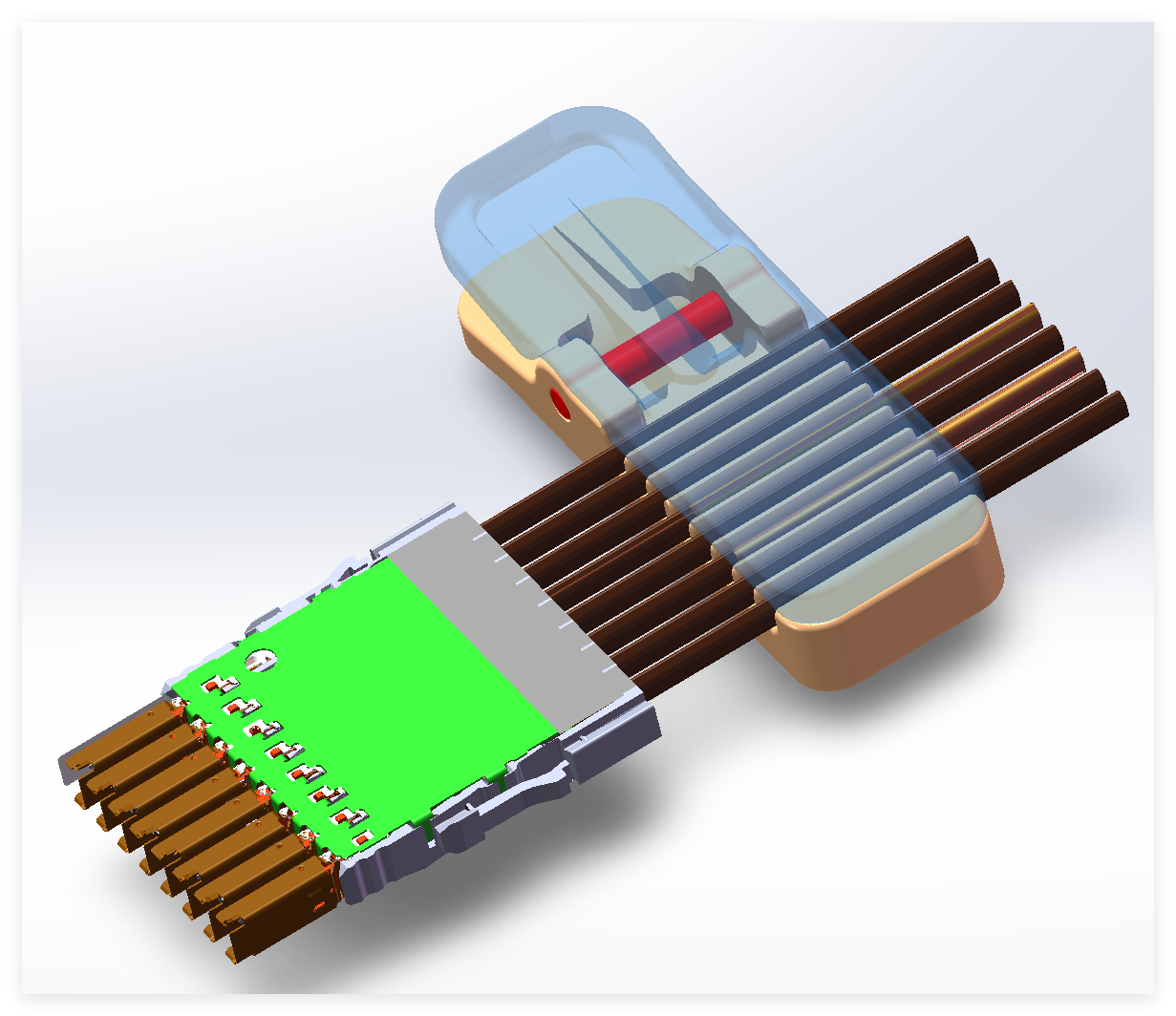

The genesis of any successful injection-Molded Part lies in its design. For the Cable Clamp - 8P, designed to securely bundle and route multiple cables in automotive or industrial electronics, initial concepts prioritized functionality, manufacturability, and cost. Ansix Tech’s engineers began by adhering to foundational plastic design principles: simplifying geometry, ensuring uniform wall thickness to prevent warping or sink marks, and incorporating adequate draft angles for smooth ejection from the mold.



Prototyping and design verification formed the critical bridge between concept and reality. Using advanced 3D printing and initial soft tooling, multiple design iterations were physically produced and tested. This phase rigorously verified the clamp’s snap-fit mechanics, strain relief on cables, and long-term durability under vibration. Crucially, it also identified potential manufacturing pain points early, allowing for adjustments before costly hard tooling was committed. This front-loaded investment in verification, a practice sometimes overlooked in rushed projects, is a cornerstone of Ansix Tech's philosophy to "do it right the first time," preventing expensive redesigns and delays later.



The Foundation: Scientific Material Selection

Selecting the optimal plastic material is a multifaceted decision that directly impacts performance, cost, and manufacturability. For the Cable Clamp - 8P, Ansix Tech employed a systematic selection strategy, evaluating materials against a comprehensive set of criteria.



*Table: Key Material Selection Criteria for Cable Clamp - 8P*

After thorough analysis, including chemical soak tests to ensure compatibility with end-use environments, a glass-fiber reinforced polyamide (PA66-GF) was chosen. This material offers an exceptional balance: the polyamide base provides toughness, chemical resistance, and a high melting point, while the glass fiber reinforcement significantly enhances tensile strength, stiffness, and dimensional stability. This choice prevents the deformation that could occur with unreinforced plastics under constant spring pressure and thermal cycling, ensuring the clamp maintains its grip throughout its service life. Furthermore, by avoiding over-specification (e.g., using a more expensive high-temperature specialty polymer unnecessarily), Ansix Tech secures reliable performance at a minimized material cost.



The Digital Forge: Mold Flow Analysis (DFM) and Precision Mold Design

Before a single piece of steel is cut, the mold is born and refined in the digital realm. Mold Flow Analysis (DFM) is an indispensable tool in Ansix Tech's arsenal. For the Cable Clamp - 8P, engineers simulated the flow of molten PA66-GF into the mold cavity. This analysis predicted potential issues like air traps, weld lines (which can weaken the part), and uneven cooling. By optimizing the gate location—the entry point of plastic into the cavity—and adjusting wall thickness transitions digitally, the team ensured a balanced fill, minimizing internal stresses and reducing the risk of defects, which directly translates to higher yield rates and lower scrap costs.



The mold design itself is a masterpiece of mechanical engineering. Key aspects for the 8P clamp included:



Cooling System: Often the most critical factor for cycle time and part quality. Ansix Tech moved beyond traditional drilled channels. By leveraging additive manufacturing (3D printing), they created conformal cooling channels that follow the precise contours of the clamp's geometry. This allows for uniform and rapid heat extraction, cutting cooling time—which constitutes 50-70% of the total cycle—by up to 30% in comparable projects.



Gating System: A hot-runner system was selected for the 8P project. This system keeps the plastic molten in the channels between the machine nozzle and the cavity, eliminating solid sprues and runners. This reduces material waste (a direct cost saving), allows for more cavities in the mold for higher output, and enables cleaner, automatic degating.



Ejection System: Given the clamp's intricate snap-fit features, a carefully designed ejection system using multiple pins and blades was implemented to apply even, controlled force without damaging the delicate parts.



From Steel to Cavity: Mold Manufacturing and Cost Control

Transforming the digital design into a hardened steel mold presents significant challenges. Machining complex, hardened tool steel to micron-level precision requires high-end CNC equipment and deep expertise. The intricate conformal cooling channels, possible only through 3D printing, add another layer of manufacturing complexity but are justified by their performance payoff.



Ansix Tech's mold manufacturing workflow is a streamlined symphony of Computer-Aided Manufacturing (CAM) programming, precision milling, electrical discharge machining (EDM) for fine details, and meticulous polishing. Steel selection is strategic: a premium hardened tool steel like H13 is used for core and cavity inserts due to its excellent wear resistance, polishability, and ability to withstand the abrasive nature of glass-filled materials over hundreds of thousands of cycles.



Cost control is rigorously managed at every stage. A dedicated "mold cost budget table" is created at project onset, and every design decision is evaluated against it. This includes:



Design for Machinability: Avoiding deep, narrow pockets that require slow, small-diameter tools, and specifying larger radii on non-cosmetic surfaces to allow for faster machining with larger cutters.



Standardization: Utilizing standard mold bases and components wherever possible.



Process Optimization: Employing automated programming for operations like deep-hole drilling to reduce programming time and human error.



The Art of the Process: Injection Molding and Optimization

With the mold mounted in a high-precision injection molding machine, the challenge shifts to process optimization. The primary goals are maximizing efficiency (output per hour) and minimizing unit cost while maintaining flawless quality.



Key challenges for the Cable Clamp - 8P included managing the high viscosity and abrasive nature of the glass-filled PA66, preventing fiber orientation from causing anisotropic shrinkage, and ensuring the delicate snap-fits formed perfectly every time. Ansix Tech’s process engineers tackled these through a data-driven approach:



Parameter Fine-Tuning: They found the "sweet spot" where barrel temperature is high enough to ensure good flow but not so high as to degrade the polymer; where injection pressure and speed fill the mold completely without causing excessive shear stress.



Energy Optimization: Monitoring and optimizing back pressure and screw rotation to reduce the machine's energy consumption, a significant portion of operational cost.



Uptime Maximization: Implementing quick mold-change systems and using effective purging compounds to minimize downtime during material or color changes.



The integration of the advanced conformal cooling system directly addressed the largest time sink. By ensuring turbulent water flow (Reynolds number >4000) in the cooling channels for maximum heat transfer, and precisely controlling mold temperature with dedicated units, Ansix Tech achieved a cycle time reduction of over 25% for the Cable Clamp - 8P. This efficiency gain is a direct lever on cost-per-part, allowing more units to be produced per day without additional capital expenditure.



Vigilance and Value: Quality Assurance and Rapid Delivery

Quality is not inspected in; it is built into the process. For the Cable Clamp - 8P, Ansix Tech's quality control regime is exhaustive. It begins with incoming material checks to verify resin specifications. During production, Statistical Process Control (SPC) monitors critical parameters like cycle time, injection pressure, and cavity temperature in real-time. Each batch of parts undergoes rigorous inspection against a detailed Quality Inspection Standard, which includes:



Dimensional Checks: Using coordinate measuring machines (CMM) to verify critical snap-fit dimensions and overall geometry.



Visual Inspection: Under controlled lighting, inspectors look for defects such as short shots, burns, sink marks, or flash, referencing strict Acceptable Quality Level (AQL) standards.



Functional Testing: A percentage of clamps are subjected to assembly tests with cables and simulated vibration to validate performance.



This multi-layered approach ensures that only parts meeting the highest standards are packaged. Packaging is designed for both protection and efficiency, often using reel or blister packaging that facilitates automated assembly at the customer's facility. Finally, Ansix Tech's commitment to rapid delivery is supported by a lean supply chain and real-time order tracking. The company may even employ third-party unloading surveillance at delivery points to verify the product arrives in perfect condition, providing an additional layer of assurance for the customer.



Conclusion: The Ansix Tech Advantage – Reliability and Radical Cost Efficiency

The journey of the Cable Clamp - 8P from a design file to a box of finished parts ready for installation encapsulates the modern injection molding ethos. Ansix Tech distinguishes itself not merely as a parts supplier, but as a solutions partner that leverages deep industry experience to deliver exceptional value.



This value is most tangibly reflected in the significant reduction of the total cost of ownership for their customers. By making scientifically-informed material choices, Ansix Tech avoids over-engineering and waste. Through revolutionary mold design featuring conformal cooling, they slash cycle times and boost productivity. With relentless process optimization, they minimize energy use and scrap rates. Every step in this integrated workflow is scrutinized for efficiency gains.



The result is a reliable, high-performance component like the Cable Clamp - 8P, delivered with consistency and speed, at a cost that enhances the customer's own market competitiveness. In the precision-driven world of injection molding, Ansix Tech demonstrates that the most sophisticated engineering is ultimately in the service of one simple, powerful goal: delivering uncompromising quality at a radically optimized cost.
