Precision Under Pressure: Ansix Tech's Injection Molding Mastery Drives Innovation in Critical Carbon Canister Valves
By Industrial Technology Insights
In the intricate world of automotive emission control, a small, often-overlooked component plays an outsized role in environmental protection: the carbon canister solenoid valve. As global emissions regulations tighten and the automotive industry accelerates its evolution, the demand for more reliable, efficient, and cost-effective versions of this part is surging. Leading this charge is Ansix Tech, a specialist in high-precision injection molding, whose comprehensive approach—from material science to intelligent manufacturing—is setting new standards for the production of these critical valves, significantly lowering costs while ensuring unwavering performance.

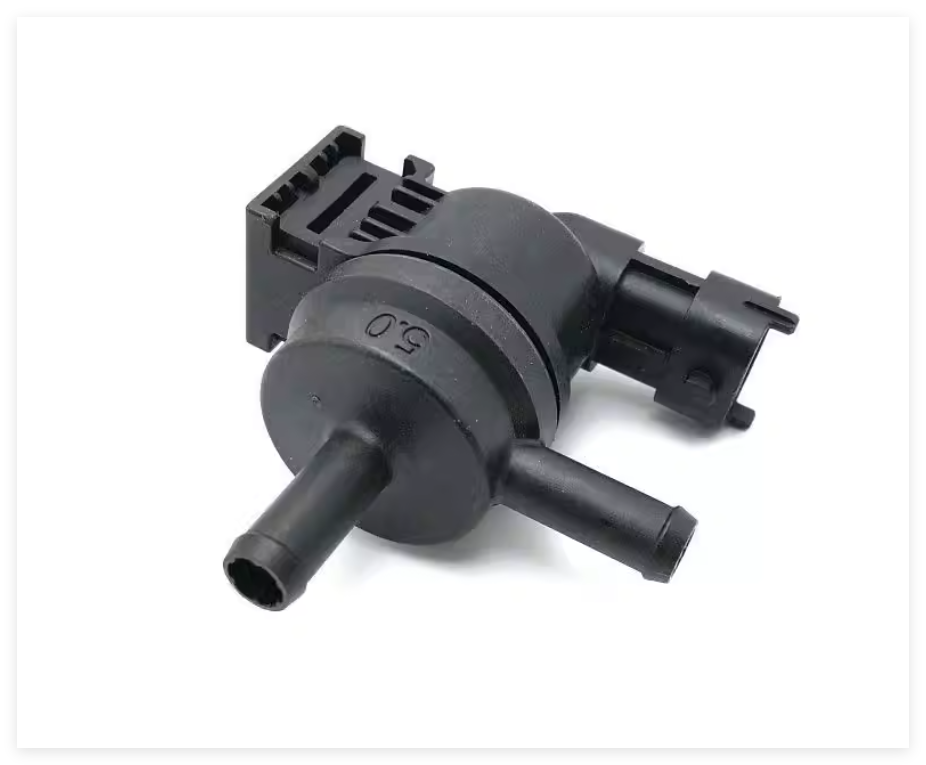

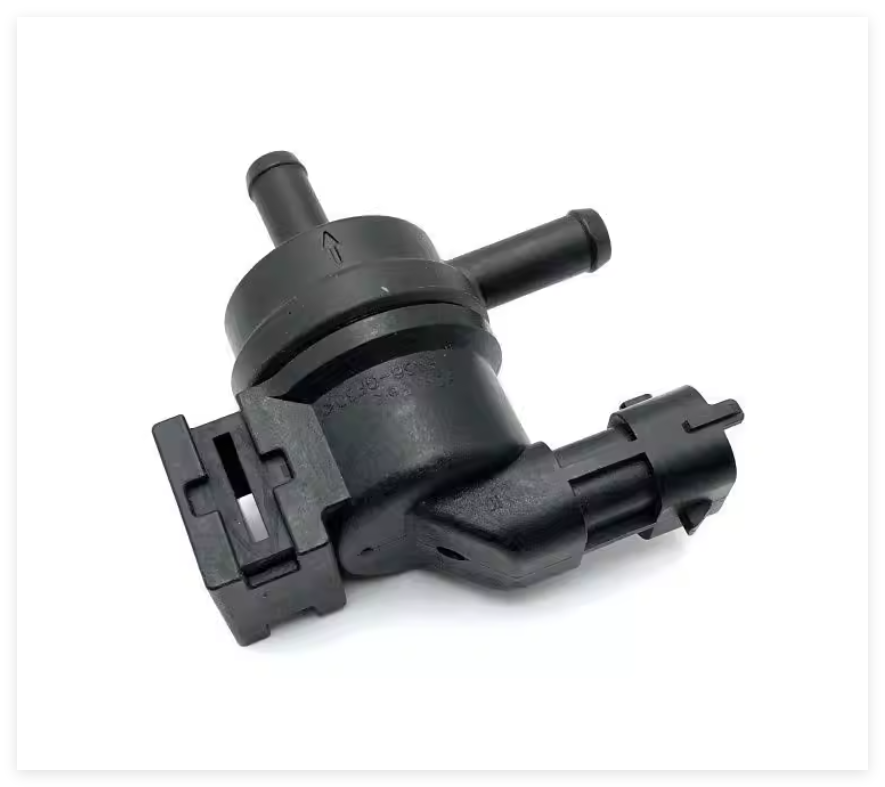

The carbon canister solenoid valve is a vital component of a vehicle's evaporative emission control (EVAP) system, preventing gasoline vapors from escaping into the atmosphere. Its function is deceptively simple but operationally demanding: it must open and close with precision under a wide range of temperatures and pressures to purge stored fuel vapors into the engine for combustion. This places extreme demands on its design and manufacture, where even minor defects in sealing or performance can lead to system failure and increased emissions.
Market Imperatives and Technical Specifications: A Landscape of High Stakes
The market for carbon canister control valves is experiencing robust growth, driven by stringent global emissions standards and an expanding global vehicle fleet. With projections indicating continued expansion through 2030, the pressure is on manufacturers to deliver components that meet exacting performance criteria at competitive prices. The technical specifications for these valves are uncompromising, defining a narrow window for success that Ansix Tech has mastered.
Operational Extremes: The valve must function flawlessly across a temperature spectrum from -40°C to 150°C, enduring both frozen winters and scorching engine bay heat.
Sealing Perfection: Leakage is not an option. Standards mandate near-zero internal and external leakage rates, requiring micron-level precision in sealing surfaces.
Endurance and Reliability: Valves must withstand 600 hours of continuous durability testing, intense vibration, thermal cycling, and mechanical shock without degradation in performance.
Electrical and Acoustic Performance: They must operate reliably within a wide voltage range, handle overvoltage spikes, and maintain low noise levels during operation.
These are not mere guidelines but the foundational requirements Ansix Tech’s project team integrates into every phase of design and production, ensuring that each valve component, particularly its core plastic housing and structural parts, is molded to perfection.
The Foundation of Performance: Strategic Material Selection
The choice of plastic material is the first and most critical determinant of the valve's performance, cost, and manufacturability. For components facing high under-the-hood temperatures, chemical exposure to fuels, and requiring long-term dimensional stability, standard plastics are insufficient. Ansix Tech’s engineers conduct a rigorous selection process, often focusing on high-performance engineering thermoplastics.
High-Performance Material Options for Valve Components
For many carbon canister valve applications, Ansix Tech has found that glass-fiber reinforced PPS or high-temperature nylon (PA) offers the optimal balance of performance, processability, and cost. The reinforcement enhances stiffness and dimensional stability, which is crucial for maintaining sealing integrity under thermal cycling. This strategic selection avoids the over-engineering and excessive cost of premium materials like PEEK, while ensuring all performance standards are met or exceeded—a direct application of Ansix Tech's philosophy of driving value.
Engineering Precision: The DFM and Mold Design Crucible
With material selected, the focus shifts to transforming the valve's digital design into a physical mold capable of mass-producing perfect parts. This is where Ansix Tech's expertise in Design for Manufacturing (DFM) and advanced mold engineering becomes a decisive advantage.
Mold Flow Analysis (DFM): Before any steel is cut, Ansix Tech utilizes sophisticated simulation software like Moldex3D to simulate the injection molding process. This virtual prototyping identifies potential issues—such as air traps, weld lines in critical areas, uneven filling, or excessive shrinkage—long before they become costly mold modifications. Engineers can optimize gate location (where the plastic enters the cavity), runner systems, and cooling layouts to ensure balanced flow and minimal stress within the part.
Critical Mold Systems Design:
Cooling System: Often accounting for over 50% of the cycle time, efficient cooling is paramount for cost control. Ansix Tech designs conformal cooling channels that follow the part's contours, ensuring rapid and uniform heat extraction. This minimizes cycle times and prevents differential cooling that causes warping.
Gating System: For a valve housing, a pin-point or submarine gate is often chosen to leave a small, clean mark. Its location is strategically placed to ensure strong weld lines are away from sealing surfaces and to facilitate automatic de-gating.
Ejection System: Given the potential for deep draws or thin ribs in valve designs, a multi-pin ejection system is carefully planned to apply even force without distorting the delicate part upon release from the mold.
Mold Steel Selection: The mold itself is a masterpiece of durability. Core and cavity blocks are typically machined from pre-hardened or through-hardened tool steels like H13 or S136, chosen for their excellent polishability, wear resistance, and ability to withstand the abrasive nature of glass-filled plastics over hundreds of thousands of cycles.
Conquering Challenges and Optimizing the Process: The Path to Affordability
The injection molding of such a high-specification part is fraught with challenges. Warpage due to uneven material shrinkage is a primary concern, as it can compromise the flatness of sealing flanges. Sink marks over thicker sections and brittleness in overly thin areas are other common pitfalls.
Ansix Tech's methodology tackles these head-on through a closed loop of simulation, prototyping, and process refinement:
Prototype & Verification: Initial molds are used to produce functional prototypes. These undergo rigorous testing—not just dimensional checks, but also pressure decay leak tests and thermal cycling—to validate the design and material choice against the stringent product standards.
Process Optimization for Cost & Efficiency: This is where Ansix Tech delivers exceptional value to customers. Their optimization focuses on three pillars:
Maximizing Cooling Efficiency: By ensuring turbulent flow in cooling channels and preventing mineral scaling, they extract heat faster, directly reducing cycle time and cost-per-part.
Intelligent Energy Management: Process parameters like packing pressure, back pressure, and barrel temperatures are fine-tuned to the minimum required, reducing energy consumption without sacrificing quality.
Minimizing Downtime: Through standardized procedures, preventive maintenance, and strategic use of purging compounds for material changes, Ansix Tech ensures machines and molds spend more time producing profitable parts.
Quality, Delivery, and the Ansix Tech Commitment
Quality control is embedded throughout the manufacturing journey. From Statistical Process Control (SPC) monitoring of critical dimensions during production to 100% final inspection for leaks and function, every valve is guaranteed to meet specifications. Post-production, specialized compartmentalized packaging is employed, where each valve is housed in its own protective cell within a larger container, preventing contact and damage during logistics—a practice supported by industry-specific packaging innovations.
Ansix Tech’s integrated expertise in material science, precision mold engineering, and lean manufacturing processes culminates in a powerful value proposition for customers. By making intelligent choices at the material stage, leveraging simulation to prevent costly errors, and relentlessly optimizing the production cycle for speed and efficiency, Ansix Tech doesn't just manufacture a component. They engineer reliability and significant cost savings into every carbon canister solenoid valve they produce.
In an industry where performance is regulated and cost is competitive, Ansix Tech’s holistic approach demonstrates that the path to market leadership is paved with deep technical knowledge, a commitment to innovation, and an unwavering focus on delivering tangible value.
