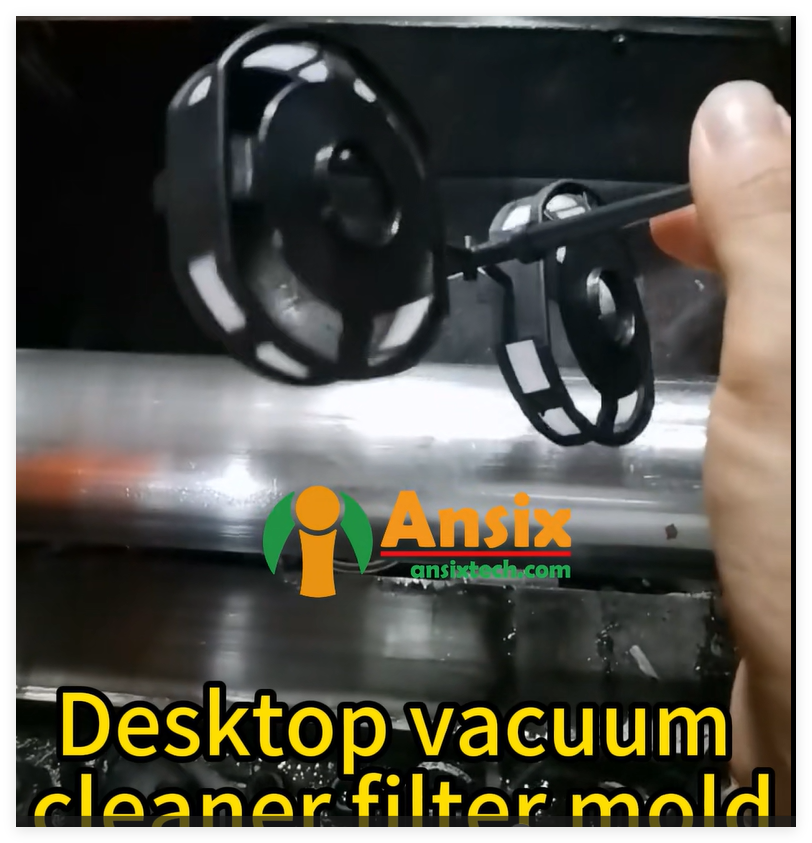

Desktop vacuum cleaner filter mold
Desktop vacuum cleaner filter mold
Ansix Tech’s Precision Mold Project Delivers Desktop Vacuum Cleaner filters at a Fraction of the Cost
SHENZHEN, China – In the hyper-competitive landscape of consumer electronics, the ability to produce high-performance, low-cost components is a decisive advantage. For a leading global manufacturer of compact cleaning appliances, achieving this balance for a critical component—the desktop vacuum cleaner filter—became a pivotal challenge. The solution was delivered through a strategic partnership with Ansix Tech, a specialist in high-precision injection molding, whose end-to-end project management slashed the client's per-part costs by over 30%.
This landmark project, from initial design to mass production certification, serves as a blueprint for how advanced engineering, material science, and process optimization converge to create value in modern manufacturing.
Market-Driven Design: Engineering for Performance and Affordability
The modern desktop vacuum cleaner is a marvel of miniaturization, requiring filters that are not only compact but exceptionally efficient. The client’s specifications demanded a plastic filter frame capable of housing a high-efficiency particulate air (HEPA) medium, with stringent requirements for structural integrity, chemical resistance to household cleaners, and a Class-A surface finish for aesthetic appeal. Furthermore, the part needed to withstand repeated impact during filter changes and maintain dimensional stability across a wide temperature range.
"Beyond the technical specs, the overarching mandate was cost reduction without compromise," explains Li Wei, Senior Project Manager at Ansix Tech. "The market for these devices is intensely price-sensitive. Our task was to engineer a mold and a manufacturing process that would drive down the unit cost from the very first sketch."
The Prototype Phase: Digital Twins and DFM Validation
Ansix Tech’s process began with a comprehensive Design for Manufacturability (DFM) analysis. Using advanced CAD software, engineers created a digital twin of the part and the proposed mold. The core challenge was the filter's design: a circular frame with a peripheral ring of thousands of micro-precision holes, each requiring consistent formation and easy de-molding.
To preempt production issues, the team employed Moldflow simulation software. This step is critical, as industry studies show that upfront mold flow analysis can resolve up to 80% of potential defects before steel is cut. The simulation analyzed fill patterns, weld line locations, cooling uniformity, and predicted warpage. By digitally testing multiple gate locations and cooling channel layouts, the team optimized the design to ensure balanced filling and minimal residual stress, which directly correlates to part consistency and longevity.
From Verification to Certification: The Path to Mass Production
The first steel mold (T1) samples underwent rigorous verification. Dimensional accuracy was checked against the 3D model using coordinate measuring machines (CMM), while pressure decay tests verified the seal integrity of the assembled filter. After three iterative tuning cycles—adjusting gate sizes, venting, and polishing specific cavity surfaces—the samples met all functional and cosmetic standards.
The final hurdle was large-scale production certification. Ansix Tech’s ISO 9001:2015-certified quality management system facilitated a smooth audit process. The client witnessed a 5,000-piece continuous production run, with statistical process control (SPC) data demonstrating a CpK (process capability index) of over 1.67 for all critical dimensions, far exceeding industry standards and confirming the process was robust and ready for high-volume manufacturing.
Strategic Material Selection: The Foundation of Performance and Cost
Material choice was identified as the primary lever for cost control. After evaluating several candidates, the team selected a high-flow, impact-modified polypropylene (PP) copolymer.
Composition & Rationale: This specific PP grade offers an optimal balance of toughness, chemical resistance, and low cost. Its high melt flow index (MFI) allows it to fill the thin-walled sections and intricate hole features at lower injection pressure and temperature, reducing cycle time and energy consumption. Furthermore, PP’s low density translates to more parts per kilogram of resin, a direct material cost saving.
Alternative Analysis: While ABS was considered for its superior surface finish, its higher cost and lower chemical resistance to certain cleaners made it less ideal. Engineering plastics like PC/ABS were ruled out due to excessive cost for the application. The selected PP grade, similar to materials specified in other vacuum cleaner component designs, proved to be the most cost-effective solution that met all performance criteria.
Deconstructing the Mold: A Symphony of Precision Engineering
The success of the project hinged on the intricate design and flawless execution of the injection mold.
Mold Flow Analysis (DFM) in Action: The pre-production simulations led to a single-point hot runner gate at the center of the circular part. This design ensures symmetrical, radial flow of the molten plastic, eliminating weld lines in critical areas and providing exceptional dimensional stability and roundness.
Key Design Aspects: The most complex feature was the array of micro-holes. Instead of using thousands of individual ejector pins (which would be costly and fragile), the design utilized seven large, circumferential sliders. Each slider, machined as a single unit, forms an entire segment of the hole pattern. This approach, noted in similar vacuum cleaner mold designs, drastically simplifies tooling, improves reliability, and facilitates maintenance.
Steel Selection for Durability: Core and cavity inserts were machined from pre-hardened stainless steel (S136H), chosen for its excellent polishability, corrosion resistance, and durability—essential for achieving a mirror finish and resisting wear from the abrasive filled plastic over millions of cycles.
Optimized Systems for Efficiency:
Cooling: A conformal cooling channel network was machined close to the cavity surfaces, ensuring rapid and uniform heat extraction. This is the single most critical factor for reducing cycle time.
Ejection: A stripper plate ejection system was employed instead of individual ejector pins. This provides a full-perimeter, simultaneous push-off force, perfectly suited for the delicate, ring-shaped part and preventing distortion upon ejection.
Conquering Manufacturing and Processing Challenges
The mold manufacturing phase presented significant hurdles. Machining the sliders with their intricate patterns of micro-features required 5-axis high-speed CNC machining at tolerances within ±0.01mm. Any manual polishing of these features was strictly prohibited, as it could lead to out-of-round holes and part rejection.
During injection molding trials, initial challenges included slight warpage and occasional drag marks on the hole edges. These were systematically resolved by:
Fine-tuning the cooling time to ensure the part was rigid enough before ejection.
Applying a higher draft angle (via "减胶拔模" or reduced-core drafting) on the micro-hole features, ensuring clean release.
Optimizing the packing pressure profile to compensate for material shrinkage uniformly.
The Optimized Production Workflow and Quality Assurance
Ansix Tech implemented a lean, integrated workflow:
Order & Material Prep: Client PO triggers pre-ordering of certified PP resin.
Production Scheduling: The mold is scheduled in a dedicated, automated injection molding cell.
In-Mold Process Monitoring: Sensors continuously monitor cavity pressure, temperature, and cycle time.
Automated De-gating & Vision Inspection: Robots remove parts and runners, and a vision system immediately checks for hole completeness and surface defects.
SPC & Packaging: Sampled parts undergo CMM measurement, with data feeding live SPC charts. Approved parts are packaged in recyclable, anti-static containers for shipment.
This streamlined process, supported by real-time data, ensures consistent quality and enables just-in-time delivery to the client's assembly line.
Ansix Tech’s Value Proposition: Experience that Cuts Costs
This desktop vacuum cleaner filter project is not an isolated case but a reflection of Ansix Tech’s deep industry expertise. The company has successfully delivered molds for various appliance components, from air purifier housings to complex ductwork, consistently applying its philosophy of "Design for Affordability."
The client’s cost reduction of over 30% was achieved through a multi-pronged strategy:
Material Cost Savings: Selecting a high-performance, low-cost PP grade.
Process Efficiency: Reducing cycle time by 22% through optimized cooling and gate design.
Yield Improvement: Achieving a first-pass yield of 99.8% through robust DFM and process control, eliminating waste.
Tool Longevity: Using premium steels and intelligent design to extend mold life, amortizing tooling cost over more parts.
"Many molders focus solely on the tooling price," concludes Li Wei. "At Ansix Tech, we focus on the total cost of ownership for the molded part. Our engineering upfront might require more investment in simulation and design, but it pays exponential dividends in production efficiency, part quality, and ultimately, the client's bottom line. This project exemplifies our commitment to being a value-creation partner, not just a supplier."
As the demand for smarter, more affordable home appliances continues to grow, the synergy of innovative design, precise engineering, and cost-conscious manufacturing—as demonstrated by Ansix Tech—will remain the cornerstone of competitive advantage in the global market.
