Precision in the Palm of Your Hand: How Ansix Tech Masters the Science of Effervescent Tube Cap Molds
In the high-stakes world of pharmaceutical and nutraceutical packaging, the humble effervescent tube cap is a masterpiece of precision. It must seal perfectly, open easily, and protect its contents from moisture with unwavering reliability. Behind every successful cap is an equally sophisticated injection mold—a tool where engineering excellence meets mass production. Leading this specialized field is Ansix Tech, a mold manufacturer whose deep expertise in effervescent tube cap molds is helping clients navigate stringent standards, complex designs, and relentless cost pressures. This article delves into Ansix Tech's comprehensive approach, from initial design to rapid delivery, highlighting how the company delivers unparalleled reliability and value.
- The Blueprint: Design and Market Requirements
The journey begins with a clear understanding of the end goal. Effervescent tube caps are not generic closures; they are functional components subject to rigorous standards for moisture barrier properties (often requiring desiccant integration), thread engagement, tamper evidence, and compatibility with automated filling lines. Ansix Tech’s process starts by aligning with these product standards, which often include ISO 15378 for pharmaceutical packaging and customer-specific protocols for leak testing and closure force.
The development path is methodical:
Prototype Design: Using advanced CAD software (UG, CATIA, SOLIDWORKS), engineers create 3D models that are then subjected to Design for Manufacturability (DFM) analysis. This early virtual prototyping identifies potential manufacturing issues long before steel is cut.
Manufacturing Validation: The first physical mold is put through a rigorous testing protocol. Initial shots are measured against critical dimensions, closure functionality is tested, and material compatibility is verified.
Mass Production Certification: Only after the mold consistently produces parts that meet all quality and performance benchmarks across a statistically significant run is it certified for full-scale production. This disciplined gate-approval process ensures that the tool is production-ready from day one.
- The Foundation: Strategic Material Selection
Choosing the right plastic is paramount. The material must offer the right balance of stiffness, moisture resistance, cost, and processability. Ansix Tech guides clients through this selection, often recommending commodity plastics like Polypropylene (PP) and Polyethylene (PE) for their excellent chemical resistance, food-safe properties, and cost-efficiency.
For demanding applications, Ansix Tech leverages specialized grades from partners like SABIC, which offers optimized polymers for caps and closures. These include:
SABIC® PP grades (e.g., PCGH10, PCGR25): Known for high purity and consistency, ideal for medical dispensers.
SABIC® HDPE grades (e.g., PCG453, PCG3054): Offer high impact resistance, low warpage, and short molding cycles.
The selection is never arbitrary; it is a calculated decision that balances part performance with total system cost, a cornerstone of Ansix Tech’s value proposition.
- The Digital Twin: Mold Flow Analysis (DFM)
To avoid costly physical trial-and-error, Ansix Tech employs comprehensive mold flow analysis. This computer simulation predicts how molten plastic will fill, pack, and cool within the mold cavity. By creating a "digital twin," engineers can:
Optimize gate locations to ensure balanced filling.
Identify and eliminate potential defects like weld lines, air traps, and short shots before machining begins.
Simulate cooling patterns to minimize cycle time and part warpage.
This predictive engineering is a primary reason Ansix Tech Molds often achieve production-ready status with minimal rework, saving clients significant time and capital.
- Anatomy of a Precision Tool: Key Mold Design Aspects
The design of the mold itself is where theory transforms into reality. For a multi-cavity effervescent cap mold, every system must be meticulously planned:
Cavity & Core Design: Built to form the cap's intricate internal threads and external features with micron-level accuracy.
Gating System: A pin-point or submarine gate is typically used to leave a minimal, cosmetically acceptable mark on the cap. The system is designed for automatic degating.
Runner System: A cold runner system is common, though hot runners are evaluated for high-volume projects to reduce material waste.
Cooling System: This is the heartbeat of mold efficiency. Ansix Tech utilizes conformal cooling channel designs, which follow the contour of the part more closely than traditional drilled channels. Studies show such optimization can improve cooling performance and reduce cycle time by up to 30%.
Ejection System: A combination of ejector pins and sleeves is designed to cleanly demold the delicate caps without causing stress marks or distortion.
- The Backbone: Steel Selection for Durability
The mold must withstand millions of cycles under high pressure and temperature. Ansix Tech selects mold steels based on production volume and material abrasiveness. While traditional P20 and H13 steels are workhorses for many applications, the company increasingly employs advanced pre-hardened alloys and powder metallurgy steels for superior wear resistance and thermal conductivity. For critical components like cores in thin-walled sections, materials with high edge retention are chosen to maintain precision over the tool's entire lifespan.
- Navigating the Pitfalls: Injection Molding Challenges
Producing a perfect cap is fraught with potential defects. Ansix Tech’s process expertise is geared toward preventing common issues:
Short Shots (Incomplete Filling): Caused by premature resin solidification or trapped air. Countermeasures include optimizing gate size, increasing resin temperature, and ensuring proper venting.
Warpage: Uneven cooling is a primary culprit. This is addressed through the optimized conformal cooling system and balanced filling patterns identified in mold flow analysis.
Flash (Excess Material): Resulting from excessive injection pressure or worn mold parting lines. Robust mold construction and precise process control are the first lines of defense.
- The Path to Perfection: Processing Workflow & Optimization
Ansix Tech’s manufacturing workflow is a streamlined, digitally integrated chain:
Design & DFM Approval
Precision Machining (CNC, EDM)
Mold Assembly & Initial Tryout
Process Optimization on the injection molding machine, fine-tuning parameters like holding pressure, time, and cooling.
Sample Approval & Stability Run
Final Certification & Packaging
Process optimization is continuous. By analyzing data from each step, Ansix Tech identifies opportunities to reduce cycle times—the single biggest driver of part cost. A 1-second reduction, multiplied over millions of cycles, translates to massive savings.
- The Guarantee: Quality Control and Assurance
Quality is not inspected in; it is built in. Ansix Tech implements a multi-layered QC regime:
Statistical Process Control (SPC): Key production parameters are monitored in real-time to detect and correct deviations before they cause defects.
First-Article and In-Process Inspection: Critical dimensions are verified using CMMs and optical comparators at defined intervals.
Preventive Mold Maintenance: A scheduled maintenance program ensures the mold remains in peak condition, preventing unplanned downtime.
- The Final Mile: Packaging and Rapid Delivery
Understanding that time-to-market is critical, Ansix Tech has optimized its logistics. Finished molds are meticulously prepared for shipment: each mold is coated with anti-rust oil, wrapped in stretch waterproof film, and securely packed in a standard wooden box with all spare parts included. Coupled with established freight partnerships, this allows Ansix Tech to offer reliable rapid delivery, turning a complex capital tool into a readily available production asset for clients worldwide.
- The Ansix Tech Advantage: Experience, Reliability, and Value
Ansix Tech’s deep industry experience in effervescent tube cap molds is its defining asset. This expertise manifests in a steadfast commitment to reliability—delivering molds that perform consistently from the first shot to the millionth. More importantly, Ansix Tech is fundamentally driven to provide value, which it achieves by significantly reducing the total component cost for clients through three key levers:
Intelligent Material Selection: Guiding clients to the most cost-effective polymer that meets performance needs, avoiding over-engineering.
Process Optimization: Relentlessly focusing on cycle time reduction and yield improvement to drive down the per-part cost.
Efficiency by Design: Engineering molds for durability, easy maintenance, and fast cycling, which lowers operational costs over the tool's entire life.
In an industry where precision, speed, and cost are inextricably linked, Ansix Tech stands out as a partner that masters all three. By combining cutting-edge digital engineering with profound practical know-how, the company doesn't just manufacture molds; it delivers certified manufacturing solutions that empower clients to compete and win in the demanding global marketplace. The effervescent tube cap, a small but vital component, is a testament to the large-scale innovation and unwavering commitment to customer success that defines Ansix Tech.
Ansix Tech Co Ltd

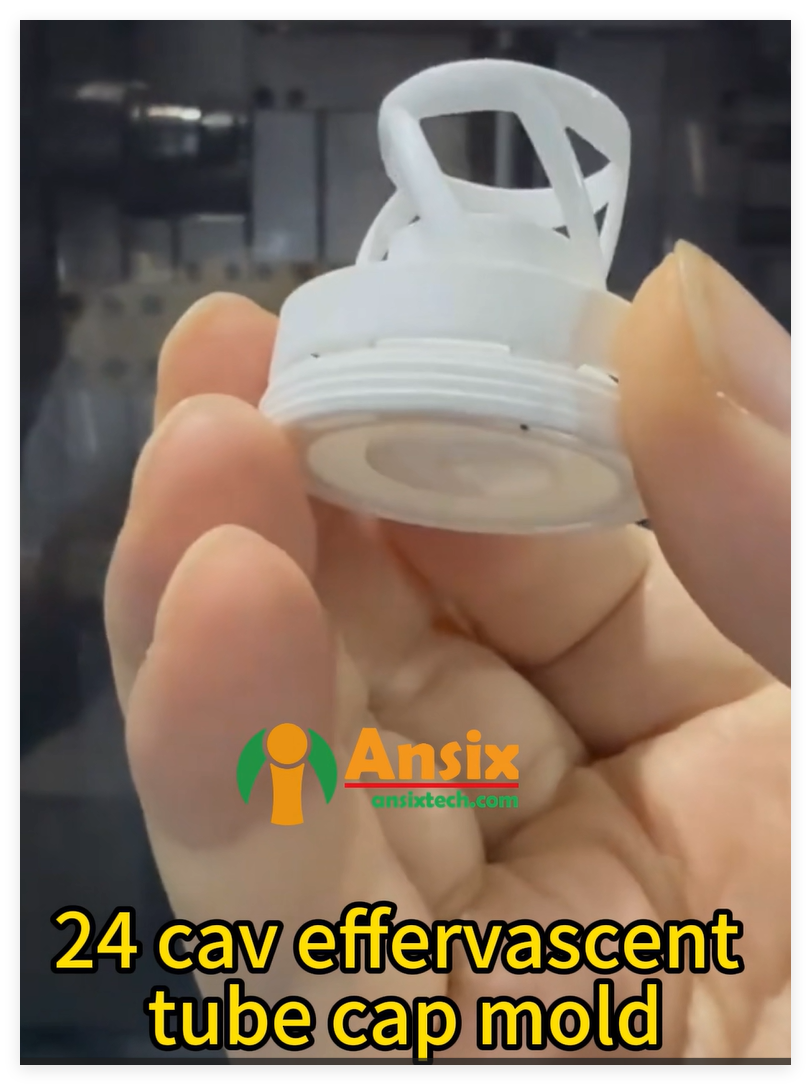

If you have any plans related to 24 cav effervascent tube cap mold , you can contact us at any time. We will turn your ideas into reality, let you realize your dreams, and obtain large orders from the market. Our contact information is info@ansixtech.com. Or contact our CTO, mail: stephen@ansixtech.com
