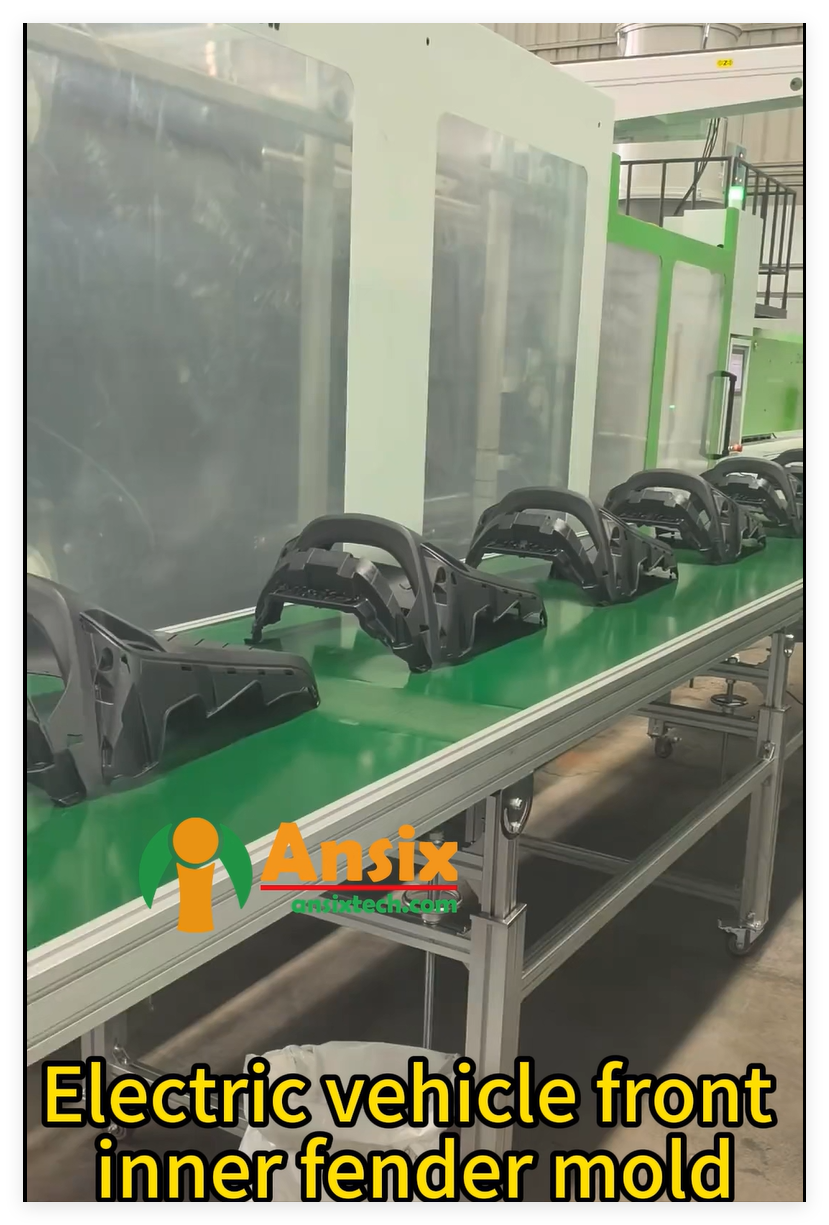

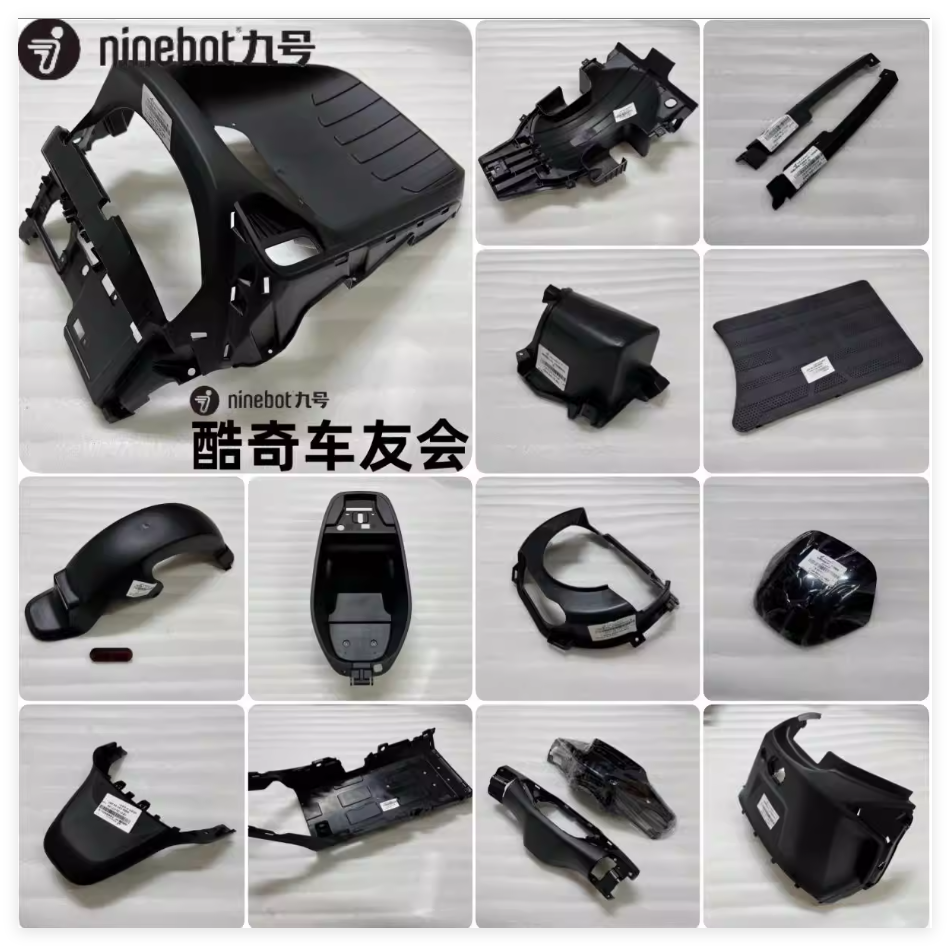

Electric vehicle front inner fender mold
Electric vehicle front inner fender mold
Beyond the Mold: How Precision Engineering Drives Down EV Component Costs
The rapid electrification of the global automotive fleet has triggered a quiet revolution far removed from battery cells and electric motors: the science of high-precision, large-scale plastic injection molding. At the heart of this transformation are critical yet often unseen components like the front inner fender, a part that protects sensitive electronics and chassis elements from road debris and weather. Producing this part profitably and reliably at a massive scale is a formidable engineering challenge, one where Advanced Mold manufacturing makes the difference between market leadership and obsolescence. Specialists like Ansix Tech are proving that through integrated design, material science, and process mastery, it is possible to deliver superior quality while significantly reducing the total cost of ownership for electric vehicle (EV) manufacturers.
- The Critical Role and Stringent Demands of the EV Front Inner Fender
The front inner fender, or wheelhouse liner, is far more than a simple splash guard. In modern EVs, it acts as a primary defense for battery cables, sensor wiring, and suspension components against water, salt, gravel, and extreme temperature fluctuations. Consequently, its design and production are governed by a stringent set of requirements that exceed those for traditional vehicles.
Market and Design Requirements:
The part must achieve a delicate balance between lightweight design—to preserve precious battery range—and structural durability. It requires precise fitment within tight body panel gaps and must maintain dimensional stability under a wide range of thermal conditions, from summer heat to winter cold. standards derived from leading manufacturers specify that critical connection points, such as mounting bosses, must have a length of no less than 13mm to ensure secure assembly, while wall thickness for key structural areas is mandated to be at least 2.6mm to prevent warping and sink marks.
The Development Gateway: From EVT to MP
Bringing such a component to market follows a rigorous, phase-gated process often termed EVT-DVT-PVT-MP (Engineering Validation, Design Validation, Production Validation, Mass Production). Each phase serves as a critical checkpoint:
EVT: Initial prototypes, often from soft tools or CNC machining, validate basic form, fit, and function.
DVT: Parts from near-production-grade molds undergo comprehensive testing, including thermal cycling, impact resistance, and material weathering tests.
PVT: A pilot run validates the manufacturing process, tool stability, and final product quality before the commitment to full-scale production.
MP: The commencement of high-volume manufacturing with a certified, optimized process and tool.
The mold itself is the foundational enabler of this entire journey. A poorly designed or built tool can create insurmountable bottlenecks, cost overruns, and quality failures at any of these stages.
- Strategic Material Selection: The First Cost-Saving Frontier
Ansix Tech's approach to cost optimization begins at the material level, analyzing both the plastic for the part and the steel for the mold.
Component Material Science:
For the fender itself, the industry typically chooses between Modified Polypropylene (PP) and Acrylonitrile Styrene Acrylate (ASA). Each offers distinct trade-offs:
Ansix Tech engineers work with clients to select the optimal material based on the vehicle's performance targets, aesthetic requirements, and total cost model, often finding that the higher raw material cost of ASA is offset by eliminating the entire painting process.
Mold Steel Selection:
The choice of mold steel directly impacts upfront cost, maintenance cost, and production uptime. Ansix Tech utilizes premium pre-hardened steels and high-chrome content steels for key components. Advanced alloys incorporating elements like chromium (1.8-2.5%), molybdenum (1.3-1.8%), and vanadium (0.7-1%) are specified for cores and cavities subject to high wear, ensuring a longer lifespan and consistent part quality over production runs exceeding 500,000 cycles.
- Engineering the Perfect Mold: A Symphony of Systems
A production mold is a complex machine integrating multiple systems that must work in perfect harmony.
Predictive Engineering with Mold Flow Analysis (DFM):
Before any steel is cut, Ansix Tech employs advanced Moldflow simulation to de-risk the design. This virtual prototyping predicts how the plastic will fill, pack, and cool within the tool. Engineers can identify and rectify potential issues like air traps, weld lines (which create weak points), and uneven cooling—the primary cause of warpage and extended cycle times. This digital validation is a non-negotiable step to avoid costly mold rework.
Core System Design for Efficiency and Quality:
Cooling System: As cooling accounts for 50-70% of the total cycle time, its design is paramount for cost control. Ansix Tech designs conformal cooling channels that follow the part's contours, ensuring uniform and rapid heat extraction. Maintaining turbulent water flow (Reynolds number >4000) within these channels is critical for maximizing heat transfer efficiency.
Gating & Runner System: The design of the gate (where plastic enters the cavity) influences aesthetics and strength. Submarine or pin-point gates are often used for automatic degating. A balanced hot runner system ensures material is delivered to multiple cavities at the same temperature and pressure, guaranteeing consistency across all parts.
Ejection System: Given the fender's large, thin-walled geometry, a robust and precisely balanced ejection system is vital. Multiple ejector pins, sleeves, and even air poppets are strategically placed to release the part smoothly without distortion or damage.
- Conquering Production Challenges and Optimizing the Process
The transition from a validated mold to a high-yield, efficient production line is where Ansix Tech's operational excellence shines.
Key Manufacturing Challenges:
Dimensional Warpage: The part's large surface area makes it susceptible to uneven shrinkage. This is mitigated by the synergistic combination of accurate mold flow analysis, a precision-machined mold, and a tightly controlled process.
Surface Defects: Sink marks over ribs or gloss variations are unacceptable. Solutions include optimizing rib design (thickness less than 60% of the main wall) and perfecting cooling uniformity.
Consistency at Volume: Maintaining micron-level precision over millions of cycles requires a world-class mold, stable processing parameters, and preventive maintenance.
Process Optimization for Cost Control:
Ansix Tech implements a multi-objective optimization strategy, treating parameters like injection speed, packing pressure, and cooling time as a interconnected system to be tuned. The goals are:
Minimize Cycle Time: Primarily by optimizing cooling channel performance and reducing unnecessary packing pressure.
Maximize Energy Efficiency: Analyzing the energy consumption of the screw motor and heaters to find the optimal balance between barrel temperature (which reduces viscosity) and injection pressure.
Maximize Uptime: Implementing quick mold change (QMC) systems and disciplined purging procedures to minimize downtime during material or color changes.
- Ensuring Quality and Speeding Delivery
Quality is engineered into the process from the start. Ansix Tech's in-house laboratory performs dimensional checks using coordinate measuring machines (CMM) and validates material properties against international standards like ROHS and REACH. During production, statistical process control (SPC) monitors key parameters in real-time, ensuring every part is within specification.
The rapid delivery process is underpinned by a parallel workflow. While the mold is being machined, the quality assurance protocols, packaging designs (often using custom recyclable racks to prevent transit damage), and production documentation are prepared simultaneously. This integrated project management, certified under ISO 9001 quality and ISO 14001 environmental management systems, ensures a seamless handoff from tool validation to the first shipment of production parts.
- Conclusion: Delivering Reliability and Value in the EV Era
In the capital-intensive race to electrify transportation, controlling the cost and quality of thousands of components like the front inner fender is a decisive competitive advantage. Ansix Tech exemplifies how a deep integration of material science, predictive engineering, and precision manufacturing creates value that flows directly to the customer's bottom line. By focusing on the total cost of ownership—through longer mold life, higher production efficiency, eliminated secondary operations, and flawless quality—they provide more than just a tool or a part. They deliver reliability, speed, and a tangible reduction in the cost per vehicle, proving that in the evolving landscape of automotive manufacturing, mastery of the mold is a superpower.
