Ansix Tech Drives Innovation and Cost Savings in EV Reversing Motor Manufacturing

FOR IMMEDIATE RELEASE



Shenzhen, China – December 1, 2025 – In the competitive landscape of electric vehicle (EV) component manufacturing, efficiency, reliability, and cost are paramount. Ansix Tech, a leader in precision injection molding, is setting a new industry standard with its comprehensive manufacturing process for electric vehicle reversing motors. This integrated approach, from digital design to rapid delivery, not only ensures superior part quality but also significantly drives down component costs for OEMs, providing a critical competitive edge in the fast-paced EV market.



Introduction

In the fast-paced urban life, the convenience and comfort of travel are increasingly valued. Electrically Commutated Motor, with its innovative design and technology, not only broadens the freedom of the city but also provides a new travel experience. This electric vehicle integrates advanced technology, materials, processes, and interactive design to provide a multi-dimensional intelligent experience that combines emotion and function.

Project Objectives

Our goal is to create an electric vehicle that is not only technologically advanced but also unparalleled in user experience. This product needs to break through the tradition in design and ensure that every user can feel its unique charm through user experience testing.

Design & Development Process

The R&D team has conducted in-depth research on current market demands and technological trends, ensuring that the Electrically Commutated Motor is at the forefront of technology and design.

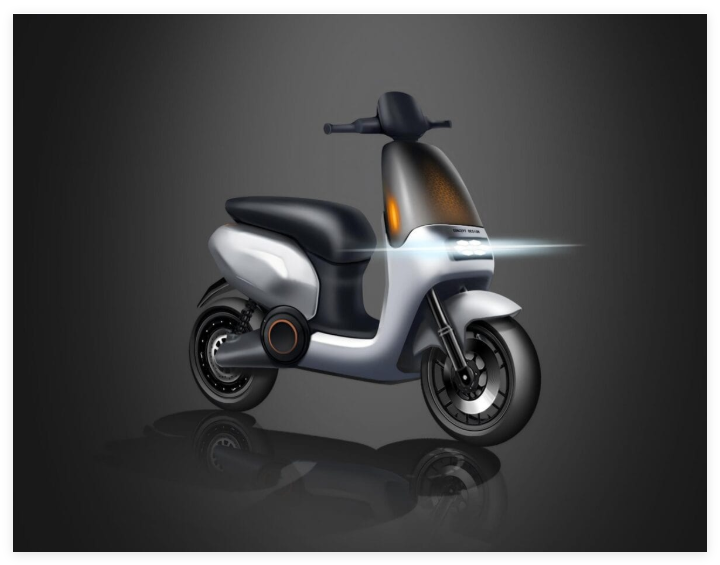

The vehicle’s exterior design adopts a streamlined structure, which is not only aesthetically pleasing but also reduces wind resistance, improving driving efficiency.

In terms of material selection, we utilized lightweight and high-strength composite materials to ensure the vehicle’s durability while significantly reducing the weight of the body.

Challenges and Solutions

One of the major challenges during the development process was how to provide an innovative user interaction experience while maintaining the vehicle’s performance. We addressed this issue by adopting the latest touch control technology and a customized user interface, making operation more intuitive. To enhance driving safety and comfort, we also innovated the seat and suspension systems.

Final Product Features

The Electrically Commutated Motor features the following notable characteristics:

• Advanced electric drive technology, providing a powerful and smooth driving experience.
• Lightweight and high-strength body materials, optimizing the vehicle’s performance and reducing energy consumption.
• User-friendly interactive interface, including an intuitive touchscreen and intelligent navigation system, making driving more enjoyable.
• Stylish appearance design, in line with modern urban style, highlighting personality.

Phase 1: Digital-First Design and Simulation

The journey of an Ansix Tech reversing motor housing begins not on the factory floor, but in a sophisticated virtual environment. Mirroring modern EV powertrain development philosophies, Ansix Tech starts with a meticulous design input phase, closely collaborating with clients to translate vehicle-level requirements—such as NVH (Noise, Vibration, and Harshness) targets, installation space constraints, and waterproofing grades—into precise component specifications .



Leveraging advanced simulation software, engineers perform multiphysics coupling analysis, integrating electromagnetic, thermal, and structural evaluations from the outset . This proactive simulation identifies potential issues like uneven cooling-induced warpage or electromagnetic interference susceptibility long before any physical tooling is created. Such a simulation-led strategy is crucial for avoiding costly late-stage design changes and forms the bedrock of Ansix Tech's commitment to "right first time" manufacturing .



Phase 2: Agile Prototyping and Design Validation

To bridge the gap between digital models and physical reality with unprecedented speed, Ansix Tech employs a tiered rapid prototyping strategy. For initial form, fit, and functional checks, FDM/FFF 3D Printing using engineering-grade materials like PETG offers a cost-effective and swift solution, producing parts in hours rather than weeks .



For higher-fidelity prototypes that more accurately mimic the final injection-Molded Part's mechanical properties and surface finish, Ansix Tech utilizes SLS (Selective Laser Sintering) technology. SLS-printed nylon (PA12) components are durable enough for rigorous functional testing, including gear meshing and mounting checks, providing invaluable feedback without the delay and expense of soft tooling . This risk-frontloading approach validates both the product design and the manufacturability of complex features early in the cycle, de-risking the subsequent high-investment phases .



Phase 3: Strategic Material Selection and DFM Analysis

The performance and cost of the final motor housing are heavily influenced by material choice. Ansix Tech’s engineers select plastic resins based on a rigorous analysis of requirements such as dimensional stability, chemical resistance, flame retardancy (UL94), and long-term thermal aging performance. Advanced materials like high-flow, glass-filled PBT or Nylon are often chosen for their excellent stiffness, creep resistance, and ability to withstand the under-hood environment of an EV .



Concurrent with material selection, a detailed Design for Manufacturability (DFM) analysis is conducted. This report is a critical blueprint that dictates the success of the mold. It meticulously plans the gate location—often placed at one-third the length of a long housing to prevent size disparity between ends—and analyzes optimal runner systems and ejection pin placement to avoid marking on critical surfaces . Crucially, it defines the parting lines and necessary actions like side sliders or lifters for features that create undercuts, ensuring the part can be cleanly ejected from the mold .



Phase 4: Precision Mold Design and Engineering

The mold itself is where Ansix Tech's expertise truly shines. The design focuses on several core systems:



Cooling System: This is the heart of cycle time optimization and part quality. Ansix Tech moves beyond traditional straight-drilled channels by implementing parametric conformal cooling channels. These 3D-shaped waterways follow the contour of the part geometry, enabling uniform and efficient heat extraction, which directly reduces cooling time—the largest segment of the injection cycle . Simulation ensures turbulent flow (Reynolds number between 4000-8000) for maximum heat transfer efficiency without excessive pumping energy .



Gating and Runner System: Designed based on mold flow analysis, the system ensures balanced filling to minimize internal stresses and volumetric shrinkage variation, which are root causes of warpage.



Ejection System: A robust yet precise ejection system is designed with sufficient pins in appropriate locations to ensure consistent, damage-free part release, even from deep ribs or complex geometries .



Mold steel selection is strategic. For high-volume production molds, premium H13 hot-work tool steel is often selected for its excellent toughness, thermal fatigue resistance, and polishability . This choice extends mold life and maintains part quality over millions of cycles.



Phase 5: Advanced Manufacturing and Process Challenges

Mold manufacturing at Ansix Tech follows a streamlined workflow: initial rough machining of the steel block, followed by precision CNC machining and Electrical Discharge Machining (EDM) for complex cavities and fine details . A critical and delicate step is the heat treatment process, where the mold is hardened to achieve the necessary surface durability. Ansix Tech employs an accelerated cooling process post-heat treatment to enhance the steel's properties efficiently .



One of the foremost challenges in molding EV motor housings is managing dimensional stability against crystalline material shrinkage and residual stress. Furthermore, achieving a perfect seal for waterproof ratings often requires ultra-precise flatness on sealing surfaces, which can be compromised by uneven cooling or packing pressure.



Phase 6: Process Optimization for Efficiency and Cost

Ansix Tech's integrated approach yields dramatic gains in process optimization. The conformal cooling system alone can reduce the cooling cycle by up to 30% or more, directly increasing production throughput . For instance, a case study showed a production cycle reduction from 52 seconds to 36 seconds, boosting daily output by 28% .



Cost control is engineered at every stage:



Material Efficiency: Through precise gate and runner design and regrind management, material usage is minimized.



Energy Reduction: Faster cycles and efficient cooling systems lower per-part energy consumption.



Scrap Reduction: A stable, well-designed process drastically reduces startup scrap and production rejects.



Phase 7: Rigorous Quality Assurance and Rapid Delivery

Quality control is embedded throughout the process. First-article inspections using Coordinate Measuring Machines (CMM) are standard. During production, Statistical Process Control (SPC) monitors critical dimensions. Components undergo a battery of tests, including IP67/IP68 waterproof validation, burst pressure tests, and long-term thermal cycling, mirroring the stringent reliability and durability testing seen in full EV powertrain validation .



For packaging, Ansix Tech uses custom-designed, recyclable thermoformed trays that prevent transit damage and facilitate automated assembly line handling.



The entire process is geared toward rapid delivery. By front-loading validation with digital simulation and rapid prototyping, and utilizing advanced mold manufacturing techniques, Ansix Tech compresses the traditional lead time from design freeze to mass production-ready parts. The ability to produce bridge tools via metal 3D printing or high-performance SLS molds allows for early pilot production runs, enabling customers to begin system integration and testing while the high-volume production mold is being finalized .



Impact and Results

Since the launch of the Electrically Commutated Motor, customers have expressed high recognition and appreciation for our design services. Our design has not only enhanced the product’s market performance but also significantly strengthened the brand’s competitiveness.



Conclusion

Through this collaboration, we have not only demonstrated our professional capabilities in electric vehicle design but also deepened our cooperative relationship with the client. The Electrically Commutated Motor design project has become an important milestone for our company in terms of design innovation and customer service, laying a solid foundation for future projects.



Conclusion: Delivering Reliability and Value

Ansix Tech’s holistic mastery of the injection molding process for EV reversing motors translates into unparalleled value for customers. Their deep industry experience ensures that every decision—from material grade to gate size—is made with an understanding of the final application's harsh operating environment and reliability demands.



The ultimate value proposition is clear: significant component cost reduction. By optimizing material selection, pioneering cycle time reductions through conformal cooling, and maintaining exceptionally low scrap rates through precise process control, Ansix Tech directly improves the bottom line for EV manufacturers. In an industry where cost-per-component is a fierce battleground, Ansix Tech provides not just a part, but a partnership dedicated to driving efficiency, reliability, and sustainable value in the electric future.
