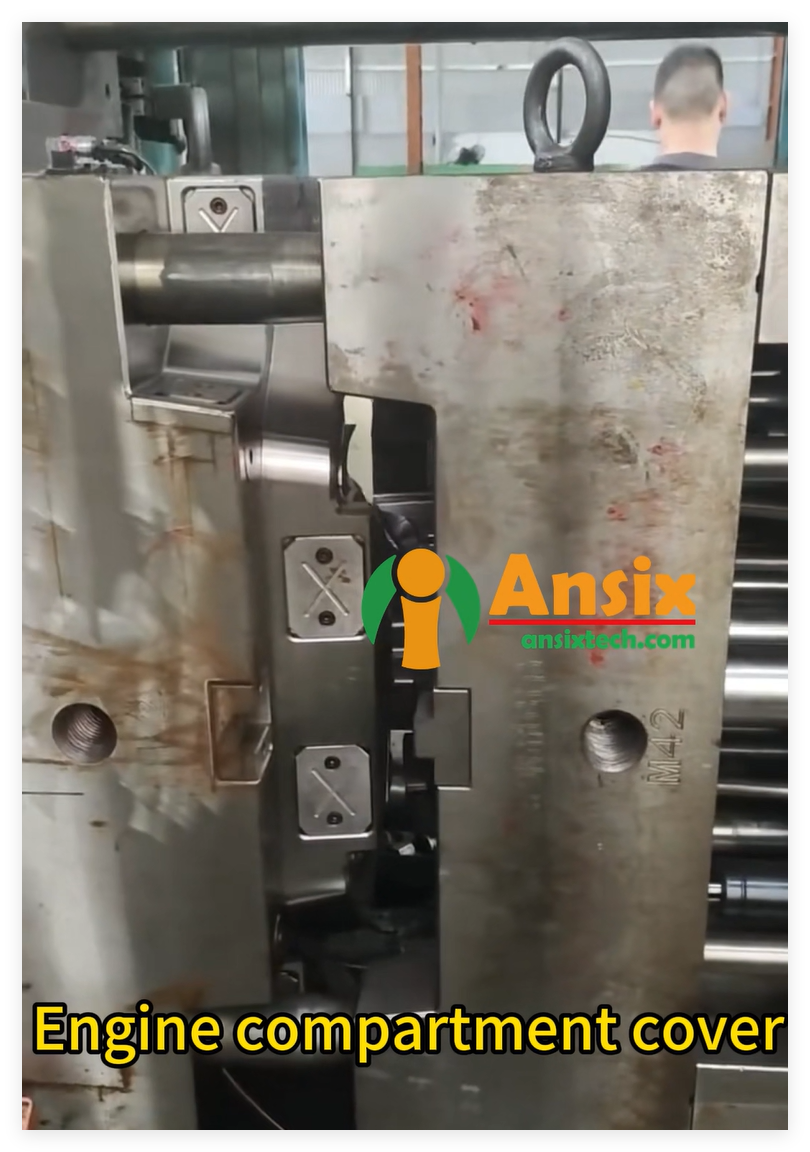

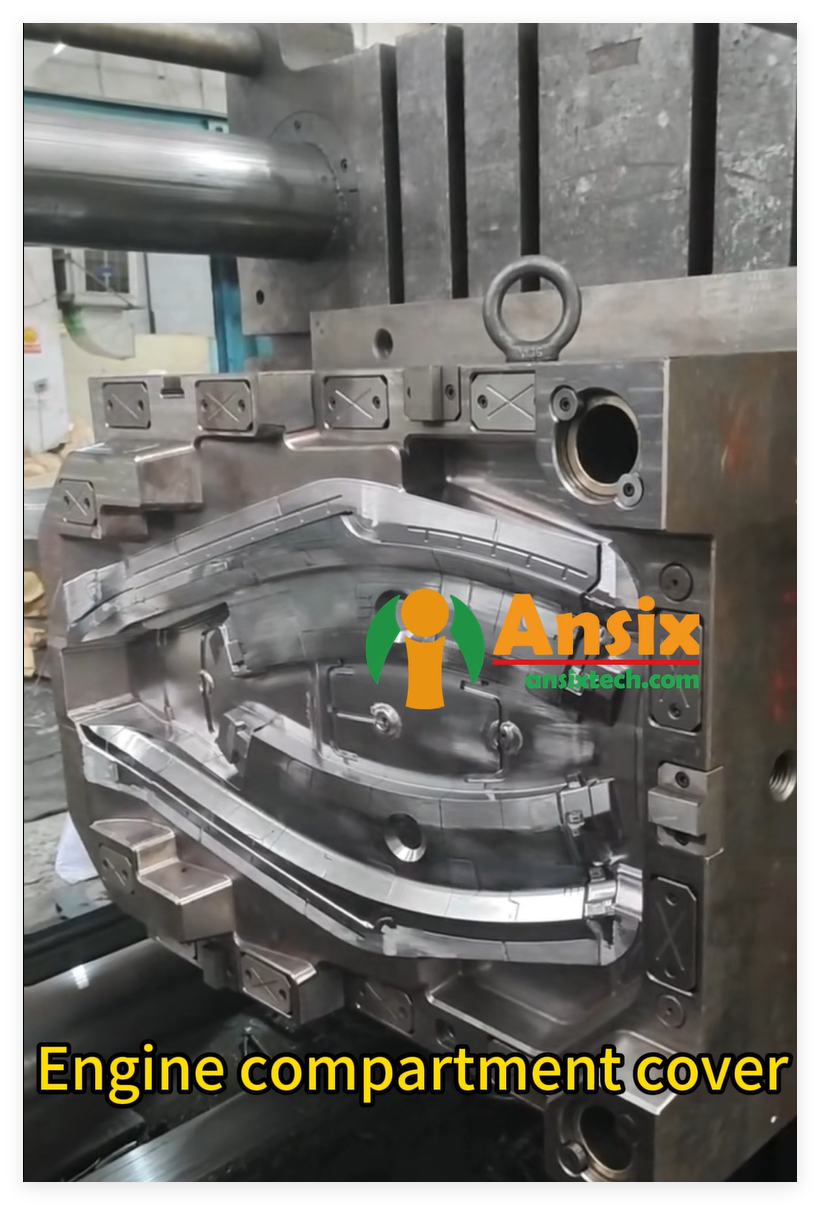

Engine compartment cover

Engine compartment cover



Engineering Excellence Under the Hood: How Ansix Tech Redefines Value in Engine Compartment Covers

In the competitive arena of automotive manufacturing, the engine compartment cover is a component of quietly critical importance. It must shield intricate electronics from extreme heat, dampen the roar of a running engine, and present a clean, branded appearance—all while being lightweight and affordable to produce. For one major automotive OEM, this complex balancing act became a significant challenge, until they partnered with Ansix Tech. Leveraging over 28 years of manufacturing expertise, Ansix Tech didn't just manufacture a part; they engineered a comprehensive solution that slashed the client's unit cost by over 20% while enhancing performance and guaranteeing on-time delivery. This project stands as a testament to how deep technical mastery and integrated process control can turn a standard component into a source of significant competitive advantage.



The Foundation of Value: Strategic Design and Material Science

The journey for a high-value engine cover begins long before molten plastic fills a mold. Ansix Tech's process is rooted in a proactive, collaborative design philosophy where approximately 70% of manufacturing costs are determined.



Design for Manufacturability (DFM) and Simulation: For the engine cover project, engineers conducted exhaustive DFM analysis, scrutinizing wall thickness for uniformity to prevent sink marks and warpage, applying optimal draft angles for clean demolding, and strategically planning for undercuts. This was augmented by Advanced Mold Flow Analysis (CAE). Using software like Moldex3D, they created a digital twin of the entire process, simulating plastic flow to predict and eliminate potential defects such as air traps, weld lines in critical structural areas, and warpage induced by uneven cooling. This virtual validation is a cornerstone of their method, dramatically reducing costly physical trial-and-error and accelerating time-to-market.



The Material Selection Imperative: The under-hood environment is punishing, demanding materials that withstand continuous high temperatures, exposure to oils and fuels, and maintain dimensional stability. Ansix Tech’s material scientists evaluated a range of high-performance polymers.



High-Temperature Nylons (PA6, PA66): Often glass-filled for added strength and rigidity, these are classic choices for under-hood applications due to good thermal and chemical resistance.



Polyphenylene Sulfide (PPS): A premium, high-temperature thermoplastic offering exceptional dimensional stability and flame retardancy for the most demanding applications.



Polypropylene (PP): For certain applications, a glass-reinforced polypropylene can provide an outstanding balance of performance and economics. It was a strategic choice for a structural canopy support rod, leading to major cost savings without compromising function.



For the engine cover, the selection process focused on choosing the least expensive material capable of reliably fulfilling all part functions. Through technical dialogue, Ansix Tech often helps clients avoid "over-engineering," potentially downgrading from a premium resin to a more cost-effective, tailored solution that meets all specifications.



Table 1: Key Considerations for Engine Cover Material Selection



Material Key Properties Typical Applications Cost & Process Impact

Glass-Filled Nylon (PA66) High strength, good heat & chemical resistance Structural covers, bearing caps Higher material cost, requires higher processing temps

Polyphenylene Sulfide (PPS) Exceptional thermal stability, flame retardant Near-engine components, connectors Premium cost, high processing temperature

Glass-Filled Polypropylene Good stiffness, chemical resistance, lower density Non-critical structural covers, shrouds Favorable cost, lower processing temp enables faster cycles

The Heart of Precision: Advanced Mold Design and Engineering

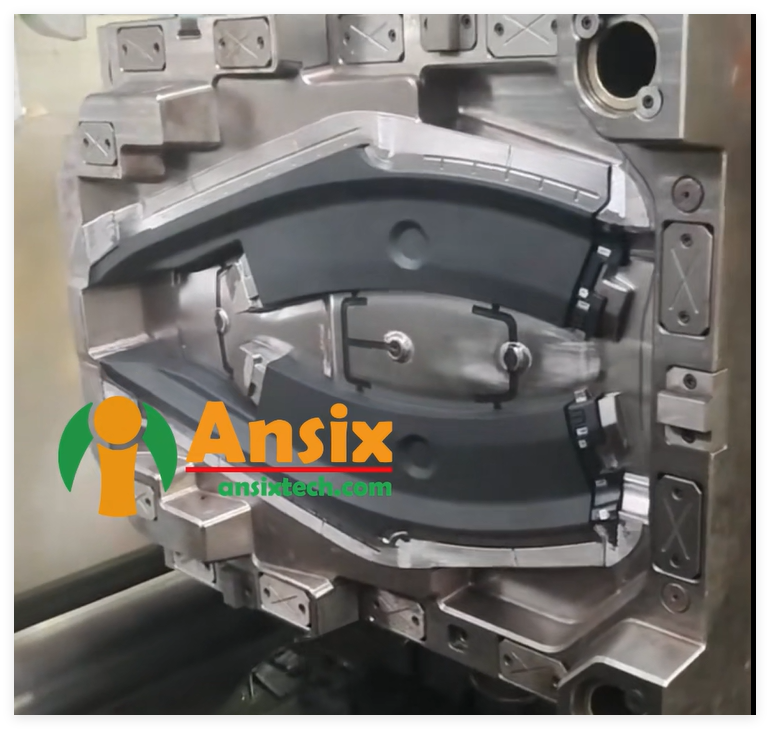

The mold is the precision instrument that transforms raw material into a finished part. Ansix Tech’s mold design is a symphony of interdependent systems, each engineered for peak performance, longevity, and efficiency.



Mold Steel Selection for Durability: The abrasive nature of glass-filled materials necessitates robust mold steel. For high-volume production like engine covers, Ansix Tech selects premium steels like pre-hardened H13 tool steel, known for its toughness and resistance to thermal fatigue, ensuring a long production life and consistent part quality over millions of cycles.



Revolutionary Cooling Systems – The Cycle Time Driver: Understanding that cooling consumes over 70% of the total injection cycle, thermal management is a primary focus. Ansix Tech employs conformal cooling channel design, where channels are 3D-printed to follow the exact contours of the part cavity at a consistent distance. Compared to traditional straight-drilled channels, this provides uniform heat extraction, which:



Reduces cycle times by up to 39%.



Minimizes part warpage by preventing uneven cooling.



Directly lowers the energy and time cost per part.



Optimized Gating and Ejection: The gate (where plastic enters the cavity) is strategically located using flow analysis to ensure balanced filling. Hot runner systems are often used to eliminate solid plastic waste (runners), ensuring all processed material becomes part of the saleable product. The ejection system is designed with a calculated array of pins or full-contour plates to apply even force, ejecting the large, often delicate cover without distortion or surface marks.

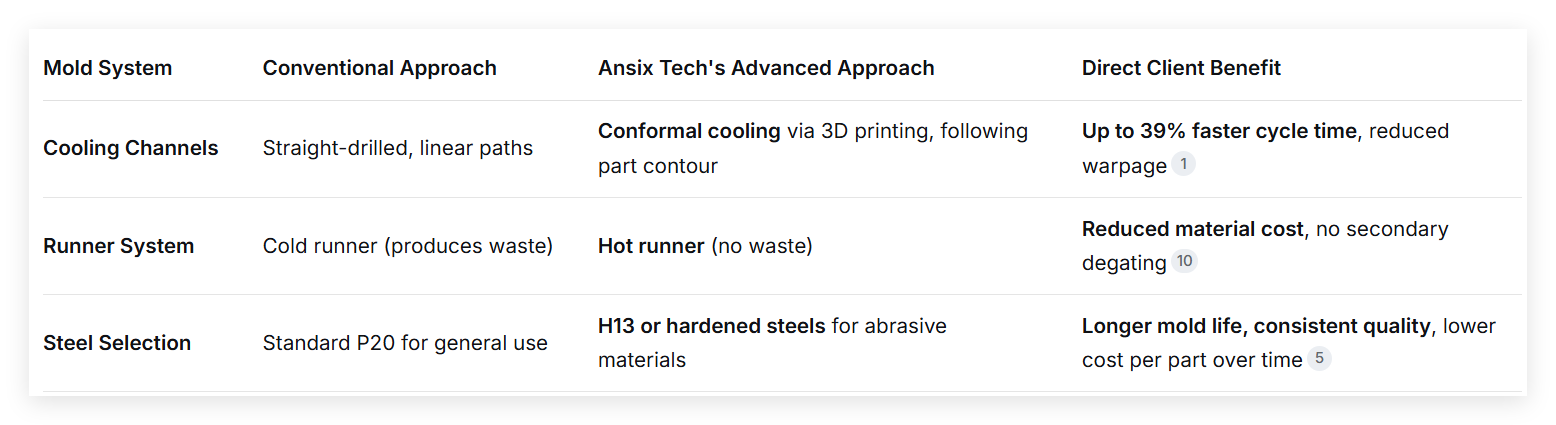

Table 2: Impact of Advanced Mold Design Features

Mastering the Process: Optimization, Quality, and Delivery

With the perfect mold built, Ansix Tech’s mastery shifts to the production floor, where scientific principles and smart manufacturing converge to guarantee quality and control costs.



Scientific Process Optimization: Moving away from tribal knowledge, Ansix Tech employs Decoupled Molding® and Scientific Molding principles. They establish a robust, data-driven process window by meticulously optimizing key parameters:



Fill Time/Speed: For balanced cavity pressure without stressing the material.



Pack/Hold Pressure: To compensate for material shrinkage without over-packing.



Cooling Time: Determined by cavity sensors, not guesswork, for maximum efficiency.



Temperature Control: Precise management of melt and mold temperature ensures consistent material flow and crystallization.



This approach creates a wide, stable process window that is resilient to minor material or environmental variations, drastically reducing scrap rates.



Integrated Quality Assurance: Quality is not inspected in; it is built into every step. Their Total Quality Management (TQM) system integrates real-time preventive monitoring. This includes:



First-Article Inspection (FAI) and Statistical Process Control (SPC) for continuous monitoring.



Automated Vision Systems and Coordinate Measuring Machines (CMM) for 100% verification of critical dimensions.



In-mold sensors providing a digital fingerprint for every shot, ensuring full traceability.



Packaging and Rapid Delivery: Ansix Tech understands that a perfectly molded part is only valuable if it arrives intact and on time. They streamline the End-of-Line (EOL) process with automated packaging, barcode scanning for tracking, and custom-designed protective packaging like clam-shell foam for delicate components. Their lean manufacturing flow and strategic logistics coordination support Just-in-Time (JIT) delivery, reducing clients' inventory costs.



Conclusion: A Partnership Engineered for Success

The engine compartment cover project exemplifies the core Ansix Tech value proposition: unmatched reliability and significant cost reduction are two sides of the same coin. By controlling and optimizing the entire value chain—from collaborative DFM and predictive simulation to strategic material science, precision mold making, and a lean, data-driven production process—Ansix Tech delivers more than components.



They deliver a tangible competitive advantage. The documented 20-22% reduction in unit part cost achieved for clients is engineered through material optimization, revolutionary cooling for faster cycles, scrap minimization via robust process control, and accelerated time-to-market. In an industry where margins are perpetually under pressure, partnering with Ansix Tech transforms a critical component from a cost center into a showcase of efficiency, reliability, and value.
