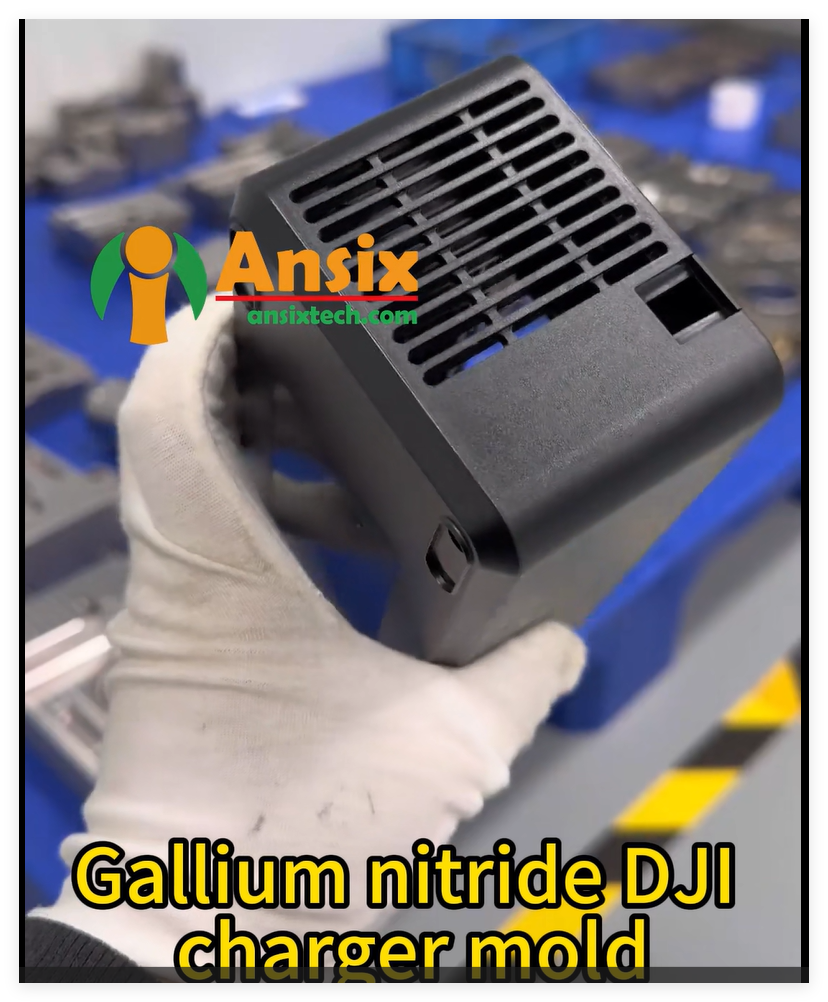

Gallium nitride DJI charger mold
Gallium nitride DJI charger mold
Advanced GaN Charger Production: How Specialized Injection Molding Enables Next-Generation Power Devices
In the rapidly evolving electronics sector, the shift from silicon to wide-bandgap semiconductors like Gallium Nitride (GaN) is unlocking unprecedented power efficiency and miniaturization. This transition, however, places extraordinary new demands on the physical packaging that houses and protects these advanced chips. Successfully bringing a product like DJI's high-performance GaN charger to market hinges not just on semiconductor innovation but equally on precision manufacturing of its plastic enclosure—a domain where injection molding expertise becomes critical.
Leading this convergence of electronics and advanced manufacturing is Ansix Tech, a firm that has positioned itself at the forefront of molding solutions for high-tech applications. The company's recent project to develop and mass-produce the mold for DJI's compact GaN charger encapsulates a holistic engineering philosophy, where cost control, reliability, and speed are engineered into the process from the very first design sketch.
- The Genesis: Design and Prototyping with the End in Mind
The project commenced with a collaborative design phase, where Ansix Tech's engineers worked in lockstep with DJI's product designers. The primary challenge was to create a sleek, robust, and compact housing that could effectively manage the significant heat generated by the GaN power components while meeting stringent aesthetic and dimensional tolerances.
Early prototyping leveraged 3D Printing and soft tooling for rapid design verification. While additive manufacturing (AM) allowed for quick iteration on form and fit, its limitations for final production—noted in industry assessments where achieving end-product properties and certification are key challenges—were clear. These prototypes were crucial for validating assembly sequences, user interface elements, and initial thermal performance before committing to the high cost of steel mold fabrication.
- The Material Science: Selecting Polymers for High-Power Duty
The choice of plastic material was paramount. Unlike standard chargers, a GaN-based device operates at higher frequencies and power densities. The selected material needed a high Comparative Tracking Index (CTI) for electrical safety, excellent thermal resistance to withstand proximity to heat sources, and high flowability to fill the mold's thin walls consistently.
Ansix Tech specified a high-performance, halogen-free flame-retardant (HF-FR) polycarbonate (PC) blend. This material composition offers an optimal balance:
High Heat Resistance: With a Heat Deflection Temperature (HDT) exceeding 125°C, it ensures dimensional stability under operational heat.
Inherent Flame Retardancy: Meets strict safety standards (e.g., UL94 V-0) without relying on halogenated additives, making it more environmentally sound.
Excellent Mechanical Strength: Provides the necessary rigidity and impact resistance to protect the sensitive internal GaN circuitry, which itself can be susceptible to performance issues from defects and thermal stress.
This strategic selection prevented over-engineering with prohibitively expensive exotic plastics, achieving reliability and safety at a manageable cost—a cornerstone of Ansix Tech's value proposition.
- The Digital Crucible: Mold Flow Analysis (DFM)
Before any metal was cut, the design underwent rigorous digital simulation. Using advanced Computer-Aided Engineering (CAE) software, Ansix Tech performed a comprehensive Mold Flow Analysis (DFM). This process simulated how the molten plastic would fill the mold cavity, predicting potential defects.
Gate Optimization: Analysts studied various gate (entry point) locations and sizes to ensure balanced filling, minimizing warpage and internal stresses—defects that could compromise the enclosure's integrity or lead to assembly issues later.
Cooling and Shrinkage Prediction: The software modeled the cooling phase to predict differential shrinkage, allowing engineers to tweak the mold design preemptively for perfect dimensional accuracy.
This digital validation phase is a powerful cost-saving tool. By identifying and resolving potential manufacturing issues in the virtual realm, Ansix Tech drastically reduces the cycle of costly physical mold modifications, aligning with industry best practices that use simulation to assess critical dimensions and assign realistic tolerances.
- Engineering the Mold: Core Systems and Steel Selection
The mold itself is a masterpiece of mechanical engineering, integrating several critical systems.
Key Aspects of the GaN Charger Mold Design:
For mold steel, Ansix Tech selected a pre-hardened, corrosion-resistant steel (such as P20 or 420SS). This offers an excellent balance of durability, polishability for a high-gloss finish, and resistance to the potentially corrosive compounds in flame-retardant plastics, ensuring a long production life with minimal maintenance.
- The Manufacturing Forge: Precision Machining and Challenges
Translating the digital design into a physical mold required high-precision CNC machining, EDM (Electrical Discharge Machining), and meticulous hand-polishing. A significant challenge was machining the conformal cooling channels, which feature complex curves impossible to create with traditional drilling. Ansix Tech utilized additive manufacturing (metal 3D printing) to fabricate these optimized cooling inserts, a technique validated in advanced packaging projects for high-power electronics.
Another hurdle was ensuring perfect ventilation in deep, narrow sections of the cavity to prevent trapped air or "burn" marks on the plastic—a defect that would be unacceptable on a consumer-facing product. This was addressed through micro-machined vents at strategic locations.
- Process Optimization: Tuning for Efficiency and Cost
With the mold completed, the focus shifted to the injection molding process itself. The goal was to achieve a short cycle time without sacrificing quality. Ansix Tech engineers employed a Design of Experiments (DOE) methodology, systematically varying key parameters—injection speed, pack pressure, melt temperature, and cooling time—to find the optimal process window.
This data-driven approach moves beyond trial-and-error, building a statistical model of the process to identify the most influential factors for consistent quality. The result was a robust process that maximized output (parts per hour) while minimizing energy consumption and material waste, directly contributing to lower per-unit costs for DJI.
- Vigilant Quality Assurance
Quality control was integrated throughout. In-mold sensors monitored pressure and temperature in real-time, ensuring process stability—a prerequisite for machine-independent quality control. For dimensional inspection, Ansix Tech used Coordinate Measuring Machines (CMM) to check critical dimensions on first-article samples against the digital CAD model.
Furthermore, drawing from methodologies in high-reliability sectors like power module packaging, Ansix Tech employed non-destructive testing techniques. While not identical to the ultrasound scanning used for detecting voids in liquid encapsulation materials, similar principles of rigorous validation ensure the molded parts are free from internal defects that could lead to field failure.
- Packaging and Rapid Delivery
The final molded charger housings were packaged using anti-static, recyclable materials in custom compartmentalized containers to prevent scratches or electrostatic discharge damage during transit. Ansix Tech's integrated supply chain and project management ensured a seamless handoff, facilitating just-in-time delivery to DJI's assembly lines, thereby reducing inventory costs and accelerating time-to-market.
Conclusion: Delivering Value Through Engineering Mastery
The successful execution of the DJI GaN charger mold project underscores a critical truth in modern electronics: the package is as vital as the silicon inside. Ansix Tech's comprehensive approach—from material science and digital simulation to precision machining and statistical process control—demonstrates how deep manufacturing expertise can be a strategic enabler for cutting-edge technology.
By front-loading engineering effort in the DFM phase, strategically selecting cost-effective high-performance materials, and optimizing the production cycle through DOE, Ansix Tech achieves its core mission: significantly lowering the total cost of ownership for its customers without compromising on quality or performance. As GaN technology continues its march from niche to mainstream, driving everything from fast chargers to electric vehicle systems, the ability to reliably and affordably encapsulate its potential will remain indispensable. In this high-stakes field, partners like Ansix Tech, which master the intricate dance of mold, material, and machine, will continue to power the devices that power our world.
