Ansix Tech Revolutionizes Medical Manufacturing: Precision Injection Molding for Guidewire Straighteners
Surgical Precision Meets Manufacturing Excellence

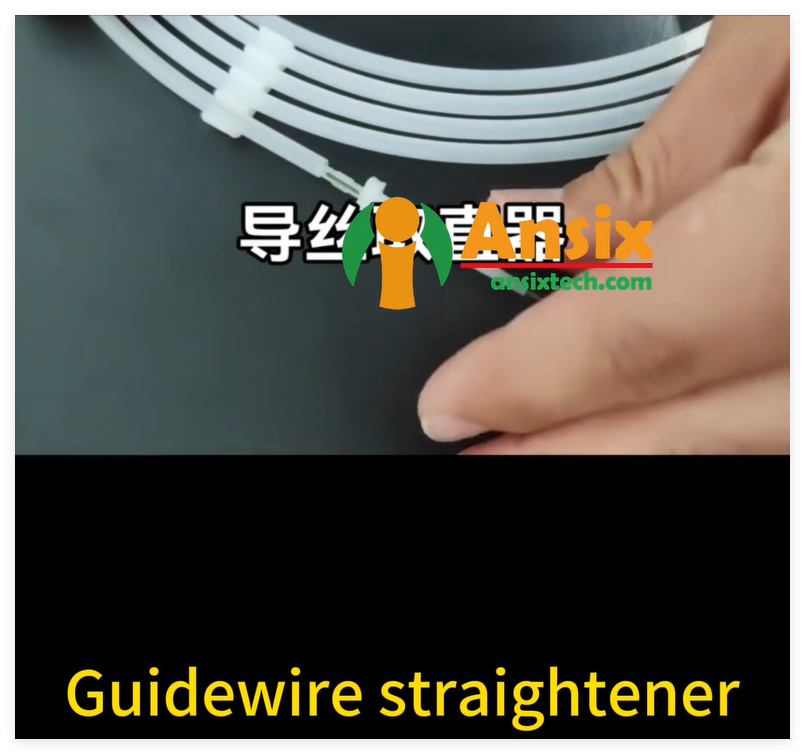

In the high-stakes environment of interventional cardiology and radiology, where multiple delicate guidewires snake through a patient's vasculature, a moment of confusion can have serious consequences. Guidewire straighteners—specialized, often color-coded plastic devices—are critical for organizing these vital tools, preventing tangles, and ensuring each wire is correctly identified on grayscale angiographic monitors. For medical device manufacturers, producing these small but complex components to exacting medical standards presents a formidable challenge. Ansix Tech, a leader in precision injection molding, has engineered a complete, optimized manufacturing solution that not only meets the stringent demands of the medical field but does so while significantly reducing production costs for its partners. This is the story of how advanced engineering, material science, and process innovation converge to create life-enhancing medical devices.
The Critical Design and Market Imperative
The need for guidewire organizers is not merely about convenience; it is a patient safety issue. During complex Percutaneous Coronary Intervention (PCI) procedures, physicians may use multiple guidewires simultaneously. As noted in research from the University of Ulster, these wires, regardless of manufacturer, are visually similar, creating "cognitive clutter" in the dim, high-pressure environment of an operating room. This uncertainty can lead to medical errors. An effective straightener must therefore fulfill a dual mandate: it must be a flawless physical product and an integral part of a safe surgical workflow.
Product standards for such devices are uncompromising. They must be biocompatible, sterilizable (via gamma radiation or EtO gas), and free of particulates or flash that could contaminate the sterile field. The straightener's clamping mechanism must hold guidewires of precise diameters (often as thin as 0.33mm or 1 French) securely without damaging their coatings or affecting their torqueability. Furthermore, the parts must exhibit exceptional dimensional stability and durability to withstand repeated use. Ansix Tech's development process begins with a deep collaborative analysis of these user needs and regulatory requirements, translating them into a prototype design that is validated through rigorous functional testing with clinical partners before any steel is cut.
Strategic Material Selection: The Foundation of Performance and Value
The choice of polymer is the first and most critical determinant of the component's performance, manufacturability, and final cost. Ansix Tech's engineers move beyond generic material classes to specify compounds tailored for the application.
High-Performance Thermoplastics: For core components requiring extreme chemical resistance during sterilization and long-term dimensional integrity, Ansix Tech often specifies Polyphenylene Sulfide (PPS). A bearing-grade PPS like Solvay Ryton BR42B (40% glass-filled) offers a continuous use temperature exceeding 220°C and inherent flame retardancy, making it ideal for parts exposed to aggressive cleaning agents and heat.
Balanced Engineering Materials: Where a combination of toughness, fatigue resistance, and cost-effectiveness is needed, Polyphthalamide (PPA) is a strong candidate. However, Ansix Tech carefully evaluates its limitations; standard PPAs can absorb moisture, which dramatically reduces their glass transition temperature (Tg) and mechanical properties in humid environments. For medical applications, a hydrolytically stable grade must be selected.
Optimized Composites: Ansix Tech excels at optimizing filler content. While glass fibers increase strength and stiffness, their abrasiveness can be a drawback. The company leverages data showing that glass content above approximately 33% can become abrasive to other components. By strategically using mineral fillers or aramid fibers, they achieve the required mechanical properties—such as wear resistance and reduced friction—without introducing unwanted abrasion, often at a lower material cost.
Table: Key Material Considerations for Guidewire Straightener Components
Engineering the Mold: From Digital Simulation to Precision Steel
With the design and material finalized, the focus shifts to creating the tool that will form it: the injection mold. Here, Ansix Tech employs a Design for Manufacturability (DFM) philosophy from the very start, ensuring the product design is optimized for the molding process to avoid costly revisions later.
Mold Flow Analysis (DFM) is the digital proving ground. Using advanced software like Moldex3D, engineers simulate the flow of molten plastic into the mold cavity. This virtual analysis identifies and resolves potential defects before manufacturing begins:
Filling Patterns: Ensuring uniform, balanced fill to prevent weld lines in high-stress areas.
Cooling Optimization: Modeling thermal dynamics to minimize cycle time and prevent warpage.
Gate Location: Determining the optimal point(s) for plastic entry to achieve the best cosmetic finish and mechanical properties.
Mold Design translates the validated simulation into a robust, producible tool. Key aspects include:
Mold Steel Selection: For medical-grade parts requiring a flawless finish and long tool life, premium hardened stainless steels (e.g., SS420, Stavax) are used for cavities and cores to resist corrosion and wear.
Cooling System: As cooling can account for 50-70% of the total cycle time, an efficient system is paramount. Ansix Tech designs conformal cooling channels that follow the part's geometry, ensuring rapid, uniform heat extraction. They maintain turbulent water flow (Reynolds number >4000) by ensuring adequate flow rates, which maximizes heat transfer efficiency.
Runner & Gate System: A hot-runner system is typically employed to eliminate material waste (solidified runners) and allow faster cycling. Valve gates are often used to ensure a clean, controllable fill and an optimal gate vestige.
Ejection System: Ejector pins are strategically placed to apply even force on thicker sections of the part without causing distortion or marks on critical surfaces. Proper draft angles (1-2° minimum) are incorporated on all vertical walls to facilitate clean ejection.
Mastering the Process: From Validation to Mass Production
Mold Manufacturing involves high-precision CNC machining, EDM (Electrical Discharge Machining), and polishing to micron-level tolerances. A critical challenge, akin to that described in wire-guiding patents, is ensuring perfect alignment and concentricity in molds that form precise channels for the guidewires. Any misalignment can create flash or drag, potentially damaging the simulated guidewire during testing.
The injection molding process for these parts presents unique hurdles. The thin walls and tight tolerances required for the guidewire channels demand precise control over injection speed and pressure to avoid shear-induced material degradation or incomplete filling. Process optimization is where Ansix Tech's expertise yields substantial cost savings for customers:
Efficiency Improvement: By utilizing mold flow data to optimize cooling, they minimize cycle time—the largest driver of unit cost. A 15% reduction in cycle time translates directly to a 15% increase in production capacity with the same machinery and labor.
Cost Control: Energy consumption is closely managed. Ansix Tech finds the "sweet spot" where barrel temperature is high enough to reduce melt viscosity (requiring less injection pressure) but not so high as to waste energy or degrade the polymer. They also implement scientific purging protocols to reduce material waste and downtime during color or material changes.
Quality Control is embedded throughout. From initial Manufacturing Validation runs that produce PPAP (Production Part Approval Process) samples to full Mass Production Certification, every batch is scrutinized. Dimensional checks are performed with coordinate measuring machines (CMM), and functional tests verify that the straighteners accept and release guidewires with the specified tolerance and force.
The Ansix Tech Advantage: Delivering Reliability and Value
Ansix Tech's commitment extends beyond mere manufacturing to becoming a reliability and value partner. Their deep industry experience allows them to anticipate pitfalls in medical device projects, from regulatory documentation to supply chain continuity.
The core of their value proposition is a holistic approach to cost reduction. They don't just quote on a print; they analyze the entire system:
Material Optimization: Recommending the most cost-effective material grade that meets all functional requirements, potentially saving 10-30% on raw material costs.
Process Optimization: Leveraging simulation and process monitoring to maximize yield, minimize scrap, and reduce energy consumption per part.
Efficiency Engineering: Designing molds for faster cycling and easier maintenance, and implementing quick-change systems to reduce machine downtime.
This integrated approach allows Ansix Tech to significantly lower the cost of most components for their customers, improving profitability without compromising the critical quality required for medical devices.

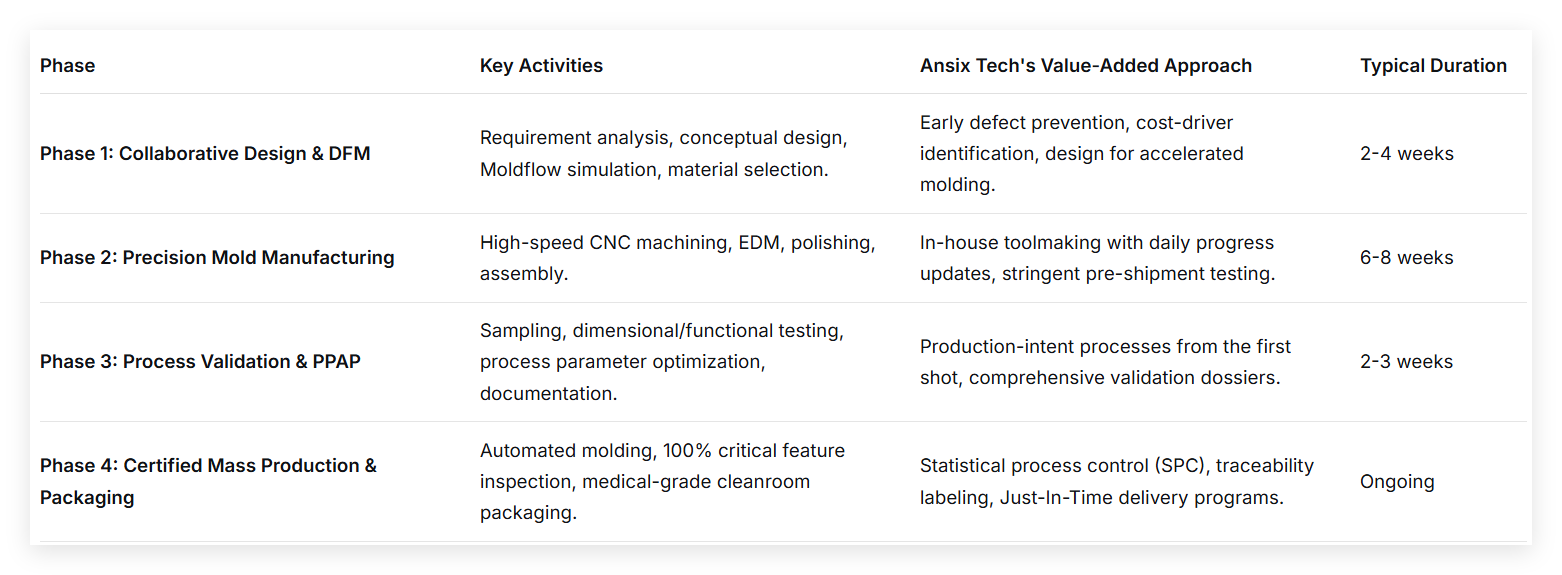

Table: Ansix Tech's Rapid Delivery Workflow for Medical Device Projects
Finally, packaging and delivery are executed with the same precision. Parts are handled in controlled environments, often bagged and packed according to medical device standards, and shipped within integrated supply chain programs to ensure customers have the components they need, when they need them.
Conclusion: Engineering Confidence into Every Component
In the intricate ecosystem of medical device manufacturing, the guidewire straightener is a testament to how a seemingly simple accessory embodies complex engineering challenges. Ansix Tech's project leadership in this field demonstrates that meeting the highest standards of quality and reliability is not at odds with driving down costs. Through strategic material science, predictive digital engineering, precision toolmaking, and optimized production processes, they deliver more than just parts—they deliver certainty, value, and a partnership dedicated to advancing medical care. In an industry where margins are tight and stakes are high, this engineered approach to injection molding is not just an advantage; it is a necessity.
