Revolutionizing Surgical Precision: How Ansix Tech Delivers High-Performance Hemostatic Clips at Unprecedented Value

From Digital Design to Sterile Delivery: An Inside Look at the Integrated Manufacturing Process Powering the Future of Minimally Invasive Surgery

In the high-stakes domain of surgical medicine, the unassuming hemostatic clip is a critical guardian of patient safety. These small, precision-engineered devices are deployed by the thousands daily to ligate blood vessels and control bleeding during minimally invasive procedures. The margin for error is zero, and the standards are astronomically high. Yet, for medical device OEMs, an equally pressing challenge exists alongside quality: the relentless pressure to reduce costs without compromise.



Enter Ansix Tech, a precision manufacturer whose deep expertise in medical-grade injection molding is transforming the economics of single-use surgical devices. Through its ANSIX Mold Workshop project, the company has engineered a holistic, value-driven manufacturing ecosystem specifically designed for complex medical components like hemostatic clips. By integrating advanced digital simulation, strategic material science, and lean, automated production, Ansix Tech is demonstrating that superior reliability and significant cost reduction are not mutually exclusive goals but achievable outcomes of smarter engineering.



1 Design & Prototyping: Laying the Foundation for Success and Savings

The journey of a hemostatic clip from concept to sterile package begins not on the factory floor, but in the digital realm. For a device that must perform with absolute reliability, the design phase is where both its functional integrity and its ultimate manufacturing cost are largely determined.



1.1 Navigating a Landscape of Rigorous Standards

A hemostatic clip is a Class II medical device, subject to stringent global regulations. Its design must satisfy exacting requirements for biocompatibility (ISO 10993), dimensional precision, mechanical strength, and compatibility with standard sterilization methods like Ethylene Oxide (EtO) or gamma radiation. Ansix Tech’s design process is guided by these standards from the outset, with teams well-versed in regulatory frameworks ensuring compliance is baked into the initial CAD models, streamlining the path to regulatory submission.



1.2 Digital Validation: Preventing Costly Errors Before They Occur

Ansix Tech’s proactive strategy centers on Design for Manufacturability (DFM) and Mold Flow Analysis (MFA). During DFM, engineers meticulously analyze the clip’s geometry—evaluating wall thickness uniformity, draft angles, and potential stress concentrators—to create a design that is inherently efficient to mold. Subsequent MFA simulation, using software like Autodesk Moldflow Insight, predicts how the chosen plastic resin will fill the mold cavity. This virtual testing identifies potential defects such as weld lines, air traps, or sink marks and allows for optimization of the gating system—the point where plastic enters the mold—to ensure perfect filling balance.



This heavy investment in upfront simulation is a cornerstone of Ansix Tech’s cost-reduction philosophy. By virtually eliminating the need for multiple, costly physical mold trials and reworks, they achieve first-pass success, saving clients substantial capital and months of development time.

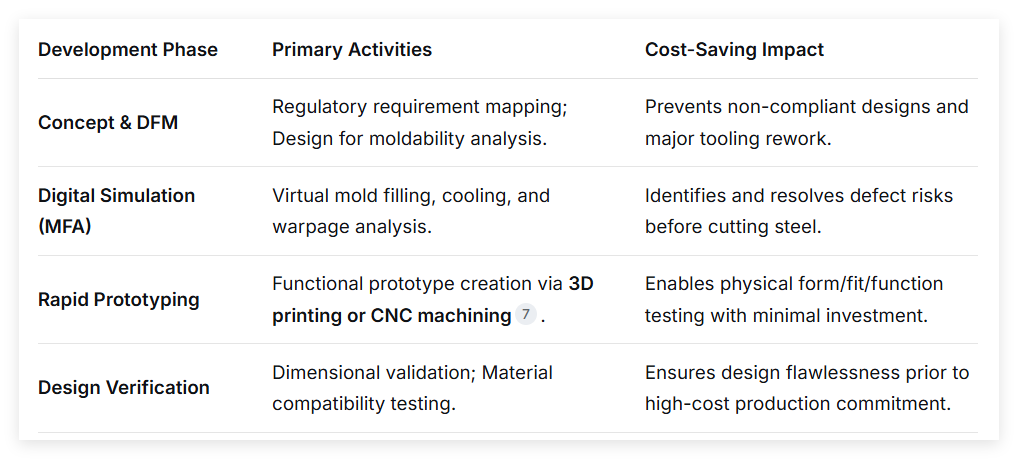

Table 1: Key Design & Prototyping Stages for Hemostatic Clips



2 The Science of Selection: Strategic Materials and Mold Engineering

The performance and cost of a hemostatic clip are inextricably linked to the polymers from which it is made and the steel mold that forms it. Ansix Tech approaches both selections with a value-engineering mindset.



2.1 Polymer Selection: Balancing Performance and Economics

The ideal material must be biocompatible, stiff yet capable of a controlled closure, and stable through sterilization. Common candidates include medical-grade Polycarbonate (PC), PEEK for ultra-high-performance applications, and specialty Polyethylenes. Ansix Tech’s material scientists don’t just select from a catalog; they perform a holistic analysis. For instance, a glass-filled polymer might offer higher strength at a lower cost than an unfilled premium resin, and its faster crystallization rate can lead to shorter cycle times—a direct driver of per-part cost reduction.



2.2 Mold Engineering: Building Efficiency into the Tool

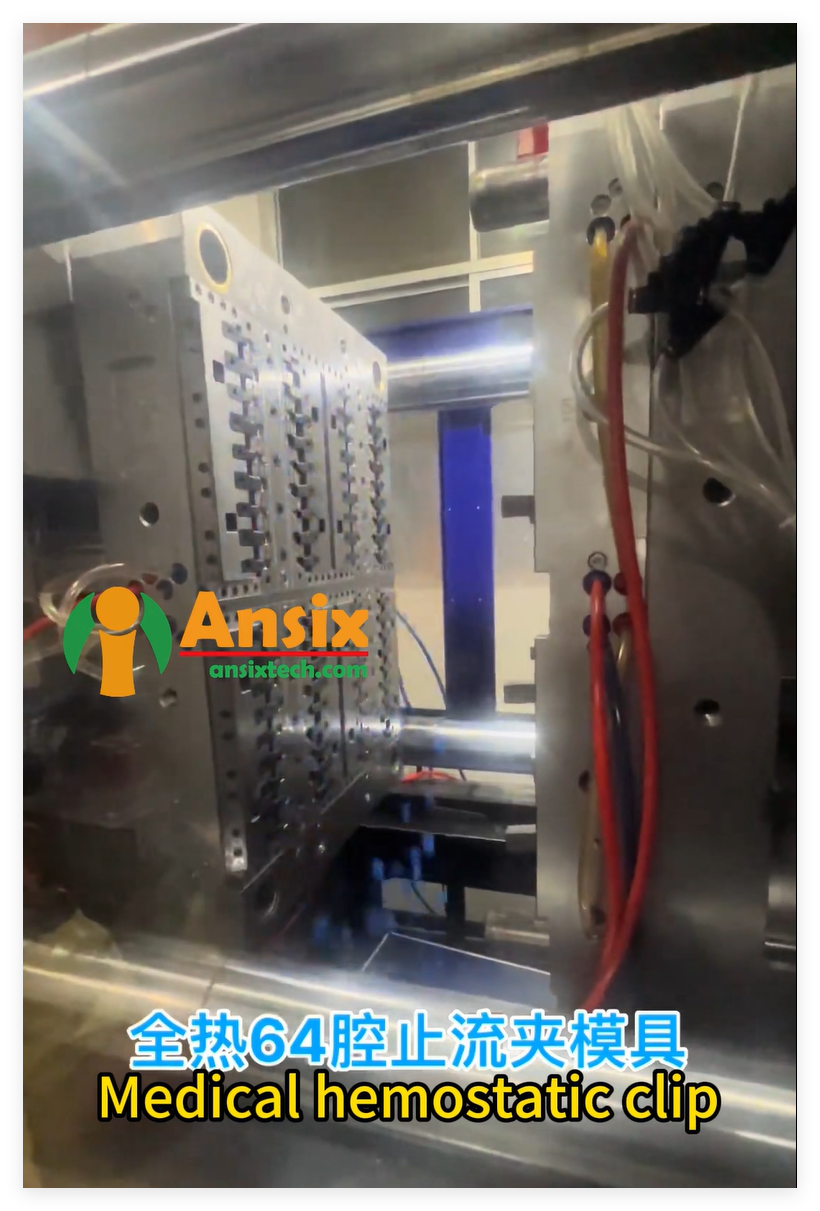

The mold is the heart of the process. Ansix Tech designs and builds molds that are masterpieces of durability and efficiency, selecting steel like H13 tool steel for its excellent resistance to thermal fatigue and wear during high-volume production.



Conformal Cooling Channels: A revolutionary innovation, these 3D-printed channels follow the exact contour of the clip within the mold. Compared to traditional drilled channels, they provide uniform, turbulent cooling, which can reduce cooling time by up to 40%. As cooling typically constitutes over half the cycle time, this is a massive lever for improving throughput and lowering cost.



High-Precision Gating & Ejection: The gate design is optimized to leave minimal vestige on the delicate clip while ensuring complete filling. The ejection system uses precisely placed pins and sleeves to automatically and gently remove the finished part without damage.



3 Mastering the Manufacturing Process: Precision, Consistency, and Control

With a perfected mold mounted in a high-precision, all-electric injection molding machine, the focus shifts to process mastery. Ansix Tech’s cleanroom manufacturing environments, certified to ISO Class 8, ensure the clips are produced in conditions that prevent contamination.



3.1 Scientific Molding and Process Optimization

The injection cycle is a precisely choreographed sequence. Ansix Tech employs decoupled (scientific) molding techniques, independently controlling each phase—injection, packing, cooling—to minimize variables and internal stress. Process parameters are not set by trial and error but are derived from the initial digital simulations and fine-tuned using real-time data from in-mold cavity pressure sensors.



This data-driven approach directly targets efficiency and cost:



Cycle Time Reduction: Optimized conformal cooling and faster injection profiles shave critical seconds off every cycle.



Energy Savings: All-electric machines consume up to 60% less energy than hydraulic equivalents.



Scrap Elimination: Real-time monitoring allows for automatic rejection of any shot that falls outside the perfect process window, ensuring near-zero defect rates.



3.2 Uncompromising Quality Assurance

Quality is not inspected in; it is built into the process. Ansix Tech’s system, certified to ISO 13485 for medical devices, is multi-layered. Statistical Process Control (SPC) tracks critical dimensions in real-time. Finished parts undergo rigorous inspection using 3D laser scanning and Coordinate Measuring Machines (CMM) to verify micron-level tolerances. Every batch is fully traceable, with documentation supporting material origin, process parameters, and test results—a complete dossier for regulatory compliance.



4 Packaging and Rapid Delivery: The Final Link in the Value Chain

For a single-use sterile device, packaging is a functional component, not just a container. Ansix Tech provides validated cleanroom packaging services. Clips are cleaned, bagged, and sealed according to client specifications, ready for terminal sterilization. Their integrated logistics systems and Just-in-Time (JIT) production capabilities ensure reliable, rapid delivery, turning their manufacturing agility into a competitive advantage for clients needing to respond quickly to market demands.



*Table 2: Summary of Ansix Tech’s Cost-Reduction Levers in Hemostatic Clip Manufacturing*

5 Conclusion: Redefining Value in Medical Device Manufacturing

The manufacturing of a medical hemostatic clip encapsulates the central dilemma of modern medtech: achieving the pinnacle of quality while navigating intense cost pressures. Ansix Tech’s approach, embodied in the ANSIX Mold Workshop, presents a compelling resolution.



By leveraging digital twin technology through advanced simulation, they de-risk development. Through strategic material science and innovative mold engineering with conformal cooling, they drive unprecedented efficiency in production. And with a robust, data-centric quality system, they guarantee reliability that meets the most stringent medical standards.



Ultimately, Ansix Tech’s industry experience demonstrates that true cost reduction does not come from cutting corners. It is engineered through intelligence, precision, and a holistic view of the value chain. For OEMs in the surgical space, this translates to a powerful partnership—one that delivers the impeccable, reliable components essential for patient care, at a cost structure that ensures their innovations can succeed in the global marketplace. In the critical world of surgical hemostasis, Ansix Tech is proving that value and values can, and must, go hand in hand.
