Ansix Tech: Engineering Excellence and Value in Mercedes-Benz Window Regulator Bracket Manufacturing

Strategic partnerships in automotive manufacturing demand more than just component supply—they require engineering foresight and systematic cost innovation, qualities that Ansix Tech has demonstrated through its work with Mercedes-Benz.

In the high-stakes world of luxury automotive manufacturing, where precision is paramount and cost pressures are relentless, a successful supplier relationship hinges on more than just delivery schedules. It requires a deep engineering partnership capable of innovating at every stage of the value chain. This is the story of Ansix Tech’s collaboration with Mercedes-Benz, focusing on a critical yet often overlooked component: the window regulator bracket.



Through a synthesis of advanced material science, mold engineering, and process intelligence, Ansix Tech has established a blueprint for delivering uncompromising quality while achieving significant cost reductions. With over 28 years of specialized manufacturing experience and certifications including IATF 16949 for automotive quality management, Ansix Tech represents the evolution of the modern automotive supplier—from a parts producer to a strategic engineering partner.



1 Strategic Partnership & Project Significance

The collaboration between Ansix Tech and Mercedes-Benz represents a significant milestone in automotive supply chain dynamics. For a brand synonymous with luxury, performance, and engineering excellence, Mercedes-Benz maintains exacting standards for every component, visible or not. The window regulator bracket, a structural component that ensures the smooth and reliable operation of a vehicle's power windows, must withstand constant mechanical stress, temperature variations, and rigorous lifecycle demands.



Ansix Tech secured this contract by positioning itself not merely as a Mold Maker or parts producer, but as a comprehensive solutions provider. The project encompasses the complete manufacturing workflow, from initial digital design and prototype verification to final high-volume production and just-in-time delivery. This end-to-end responsibility allows for seamless integration of cost-engineering and quality assurance at every phase, a critical factor as automotive manufacturers worldwide face unprecedented pressure to reduce costs without compromising the premium quality expected from luxury vehicles.



This partnership aligns with Mercedes-Benz’s own long-standing philosophy of value engineering, a discipline the automaker itself formalized with one of the industry's first dedicated cost engineering departments in 1990. By engaging a partner like Ansix Tech, which brings a similar systematic approach to cost optimization, Mercedes-Benz benefits from a supplier that acts as an extension of its own engineering department.



2 Material Science: The Foundation of Performance and Cost

The journey of a reliable window regulator bracket begins with the strategic selection of plastic material. This decision fundamentally dictates the component's mechanical strength, long-term durability, environmental resistance, and, crucially, its manufacturability and cost.



Ansix Tech approaches material selection as a scientific discipline, leveraging an extensive database of polymers and composites to find the optimal balance for the application. For automotive interior components like window regulator brackets, key requirements include high mechanical strength, excellent dimensional stability, resistance to temperature fluctuations (from sub-zero cold to the heat within a door panel), and good fatigue resistance to endure thousands of cycles.

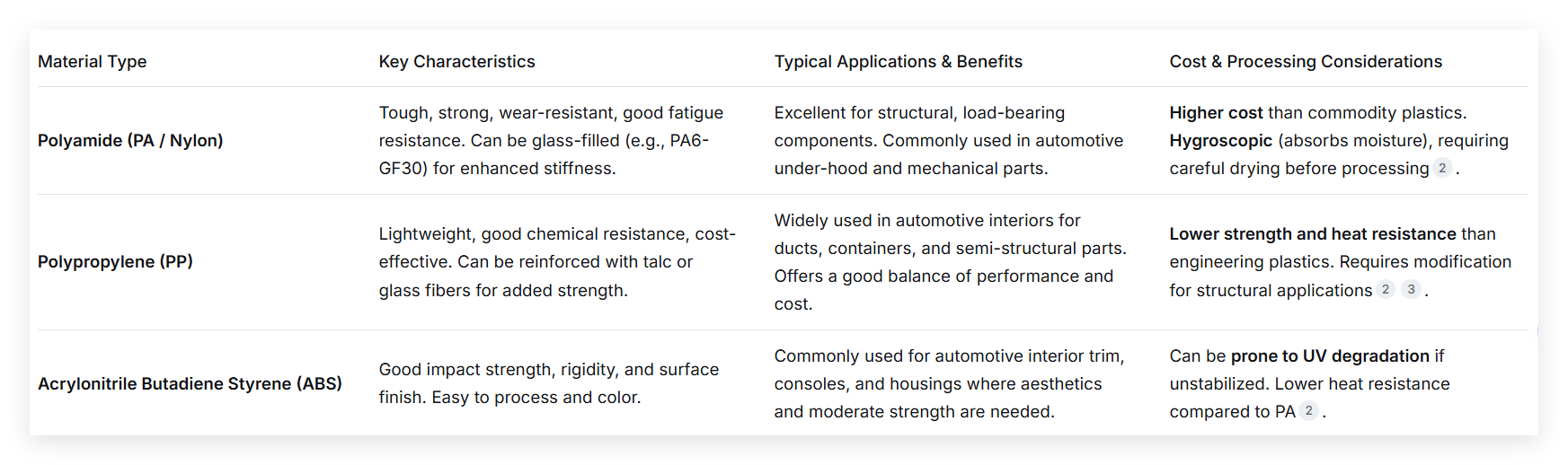

Comparative Analysis of Common Bracket Materials

For the Mercedes-Benz bracket, the likely selection falls within the family of engineered polyamides or reinforced polypropylenes. Ansix Tech’s expertise allows for potential customization, such as using a tailored mineral-filled polypropylene composite. This approach can provide sufficient strength and thermal performance at a significantly lower material cost than a standard glass-filled nylon, while also offering benefits like reduced weight and lower shrinkage for better dimensional control. This strategic "downgrading" to a cost-optimized, performance-specific material is a cornerstone of their value-engineering philosophy.



3 Advanced Mold Engineering: Precision by Design

The mold is the heart of the injection molding process, and its design is where upfront engineering investment pays the highest dividends in part quality, production efficiency, and tool longevity. Ansix Tech’s mold design for the window regulator bracket is a multi-system masterpiece, with each subsystem engineered for peak performance.



Digital Prototyping and Mold Flow Analysis (DFM)

Before any steel is cut, the component undergoes rigorous digital validation. Using advanced CAE software like Autodesk Moldflow, engineers simulate the injection process. This virtual mold flow analysis (DFM) predicts how the molten plastic will fill the cavity, identifying potential defects like weld lines (which can be weak points), air traps, and areas of uneven packing. By optimizing the gate location (where plastic enters the cavity) and filling pattern in the digital realm, Ansix Tech virtually guarantees first-shot success, eliminating costly and time-consuming physical trial-and-error and mold rework.



Core Mold Systems and Their Functions

A high-performance mold integrates several critical systems, each designed with the specific geometry and material of the bracket in mind.



Table: Key Systems in the Window Regulator Bracket Mold



System Primary Function Ansix Tech's Approach & Innovation

Cooling System / Water Channels Extracts heat from the molded plastic to solidify the part. Accounts for ~70-80% of cycle time. Utilizes conformal cooling channels—3D-printed to follow the exact contour of the part. This ensures uniform, rapid heat extraction, reducing cycle time by up to 30-40% and minimizing warpage.

Runner & Gate System Channels molten plastic from the machine nozzle to the mold cavity. Implements hot runner systems to keep the plastic in the channels molten, eliminating solid sprue waste. This reduces material consumption and energy for regrinding, while also shortening the cycle.

Ejection System Pushes the cooled, solidified part out of the mold without damage. Designs a balanced array of ejector pins, sleeves, and blades to apply even force on robust sections of the bracket. This prevents distortion or sticking, ensuring reliable, automated production.

Venting Allows trapped air to escape from the cavity during injection. Incorporates precisely machined micro-vents at the end of flow paths and along parting lines to prevent burns, short shots, and poor surface finish.

Mold Steel Selection

The choice of steel for the mold cores and cavities is strategic, balancing initial cost, polishability, and longevity. For a high-volume automotive component like the Mercedes-Benz bracket, Ansix Tech typically selects pre-hardened steels like P20 or through-hardening steels like H13. These offer an excellent combination of machinability, polishability for smooth part release, and resistance to abrasive wear from filled plastics over millions of cycles, protecting the client's long-term investment in the tooling.



4 Process Mastery & Optimization for Efficiency

With a precision-engineered mold, the focus shifts to the injection molding production floor. Here, Ansix Tech’s commitment to scientific manufacturing transforms a good design into a supremely efficient and consistent process.



Overcoming Manufacturing Challenges

Producing a dimensionally stable, high-strength bracket presents specific hurdles:



Warpage: Caused by uneven cooling or internal stresses. Mitigated by the conformal cooling system and optimized packing pressure profiles.



Sink Marks & Voids: Can occur in thicker sections if not properly packed. Addressed through precise control of packing pressure and time based on material solidification data.



Dimensional Consistency: Critical for proper fit and function in the vehicle assembly. Ensured by maintaining a stable, closed-loop process with real-time monitoring.



Cycle Time Reduction: The Primary Cost Lever

In injection molding, time is money. The cost per part is directly tied to the cycle time. Ansix Tech attacks cycle time on multiple fronts:



Cooling Time Reduction: As the largest segment of the cycle, this is optimized by the conformal cooling system, which extracts heat faster and more uniformly than straight-drilled channels.



Automation: Integrated robotic systems consistently remove parts and insert inserts (if needed) in seconds, eliminating human variance and enabling lights-out production.



Scientific Process Setting: Using Design of Experiments (DOE), engineers establish a robust, repeatable "process window" for parameters like injection speed, pressure, and temperature. This ensures the fastest possible cycle without inducing defects.



Energy and Material Efficiency

Cost control extends to utilities and raw materials. Ansix Tech employs servo-electric injection molding machines that are significantly more energy-efficient than traditional hydraulic machines. Furthermore, the use of hot runner systems and precise shot control minimizes plastic waste (scrap), and any regrind that is generated can often be responsibly reintroduced into the process for non-critical applications, further reducing material costs.



5 Integrated Quality Assurance & Rapid Delivery

Ansix Tech’s quality philosophy is preventive and integrated, not merely inspection-based. Quality is engineered into the product from the initial DFM stage and monitored continuously throughout production.



A Multi-Layered Quality System



First-Article Inspection: The first parts from the production mold undergo a full Coordinate Measuring Machine (CMM) check against the CAD model to verify all critical dimensions.



In-Process Statistical Process Control (SPC): During production, key dimensions and process parameters (like cavity pressure) are monitored in real-time. Data is plotted on control charts to detect any statistical trends that might indicate a process drift long before it produces a defective part.



Traceability and Validation: The company’s IATF 16949 certification mandates strict process control and traceability, ensuring every batch can be linked back to its production conditions.



Packaging and Logistics: The Final Link

Understanding that premium components require premium handling, Ansix Tech designs custom protective packaging for the brackets to prevent damage, abrasion, or distortion during transit. Their logistics operations are integrated with client production schedules to support Just-in-Time (JIT) and Just-in-Sequence (JIS) delivery models, ensuring the right parts arrive at the Mercedes-Benz assembly line exactly when needed, reducing inventory costs and complexity for the client.



6 The Ansix Tech Value Proposition: Reliability Through Cost Engineering

The ultimate measure of this partnership’s success is the tangible value delivered to Mercedes-Benz. Ansix Tech’s model demonstrates that deep cost reduction and premium quality are not mutually exclusive but are synergistic outcomes of superior engineering.



Systematic Cost Reduction Framework

Ansix Tech’s cost-optimization is a multi-front strategy implemented across the entire project lifecycle:



Material Cost: Saved through scientific selection and potential custom formulation to meet specs without over-engineering.



Tooling Cost: Optimized via intelligent steel selection, modular design principles, and preventive maintenance that extends mold life.



Processing Cost: Dramatically lowered through cycle time reductions, energy efficiency, automation, and near-zero scrap rates.



Quality Cost: Virtually eliminated by preventing defects upstream via simulation and in-process SPC, avoiding costly rework, sorting, or field failures.



This holistic approach translates into a significantly lower total cost of ownership for Mercedes-Benz, encompassing not just the piece price of the bracket, but also the stability, reliability, and innovation embedded in its supply.



From Supplier to Strategic Partner

The narrative of Ansix Tech and Mercedes-Benz in the manufacturing of window regulator brackets is a contemporary case study in advanced manufacturing partnership. It moves beyond a transactional buyer-supplier relationship to a collaborative engineering alliance. By leveraging over 28 years of experience, integrated digital and physical prototyping, and a relentless focus on systemic efficiency, Ansix Tech delivers components that meet the world’s most demanding automotive standards while actively driving down costs.



In an industry navigating the dual transitions toward electrification and heightened cost competition, the capabilities demonstrated by Ansix Tech provide a clear answer. The future belongs to suppliers who do not just make parts, but who engineer value, reliability, and competitive advantage into every design, every material choice, and every cycle of production.
