Inside Ansix Tech's High-Performance Motorcycle Helmet Mold Project

In the highly competitive world of protective gear, the motorcycle helmet stands as a critical blend of safety engineering and consumer design. For manufacturers, transitioning a helmet from concept to mass production presents a formidable engineering challenge, demanding precision, material expertise, and innovative manufacturing solutions. At the forefront of solving these complex problems is Ansix Tech, a leader in advanced injection molding. The company recently completed a landmark project to design and manufacture the production mold for a new high-performance motorcycle helmet, showcasing a comprehensive, cost-optimized approach from digital prototype to delivered part. This project exemplifies how strategic engineering at every stage—from material science and flow simulation to precision machining and process optimization—can yield superior products while controlling costs.



The Foundation: Design and Digital Prototyping

The project began with the client's 3D helmet design, a shape characterized by complex aerodynamic curves, integrated ventilation channels, and critical safety-critical wall thicknesses. Ansix Tech's first step was a comprehensive Design for Manufacturability (DFM) review. While standard DFM checks for draft angles, uniform wall thickness, and rib design are essential, the team understands that these static rules cannot fully predict the dynamic behavior of molten plastic.



To bridge this gap, engineers employed advanced Moldflow analysis, creating a dynamic simulation of the Injection Process. This virtual testing ground was crucial for a part as large and intricate as a helmet shell. The analysis predicted potential defects like weld lines in high-stress areas, sink marks over thick sections, and, most critically, warpage due to uneven cooling and shrinkage. By identifying these issues digitally, Ansix Tech collaborated with the client to make subtle geometry adjustments before any steel was cut, avoiding costly mold rework and delays.



The Core of Performance: Strategic Material Selection

The choice of plastic material is a decisive factor for a helmet's performance, cost, and manufacturability. For this project, the requirements were stringent: high impact strength, excellent surface finish for painting, and good flowability to fill the large, thin-walled mold.



Ansix Tech engineers evaluated several advanced engineering polymers. Key considerations included:



Crystallinity: Semi-crystalline materials like Polyamide (PA6, PA66) offer high chemical resistance and strength but tend to have higher, more anisotropic shrinkage, increasing warpage risk.



Impact Modifiers: Materials like ABS (Acrylonitrile Butadiene Styrene), while amorphous and more dimensionally stable, can be enhanced with additives for superior impact absorption.



Processing Conditions: The material's recommended melt and Mold Temperature windows directly influence cycle time and energy consumption.



After analysis, a high-impact, modified ABS blend was selected. This material provided an optimal balance: the dimensional stability of an amorphous polymer for reduced warpage, coupled with the necessary toughness for safety certification, all while offering favorable flow characteristics for the complex mold.



Mastering Complexity: Innovative Mold Design and Manufacturing

The helmet mold itself is a masterpiece of mechanical engineering. Its design directly addresses the unique challenges of the product geometry.



Overcoming Geometric Challenges

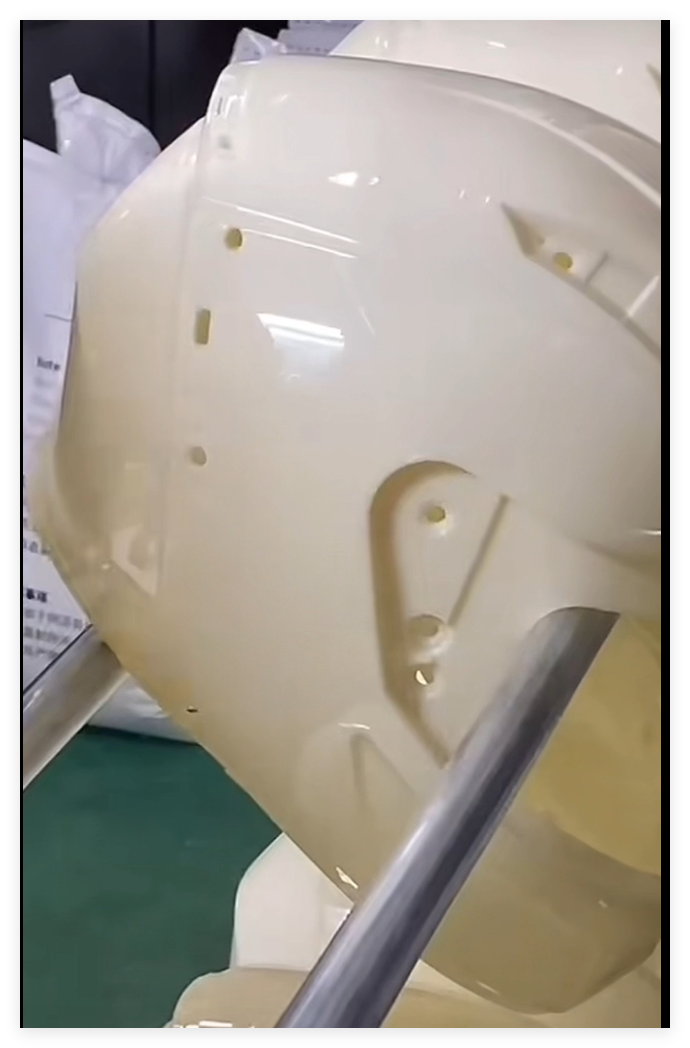

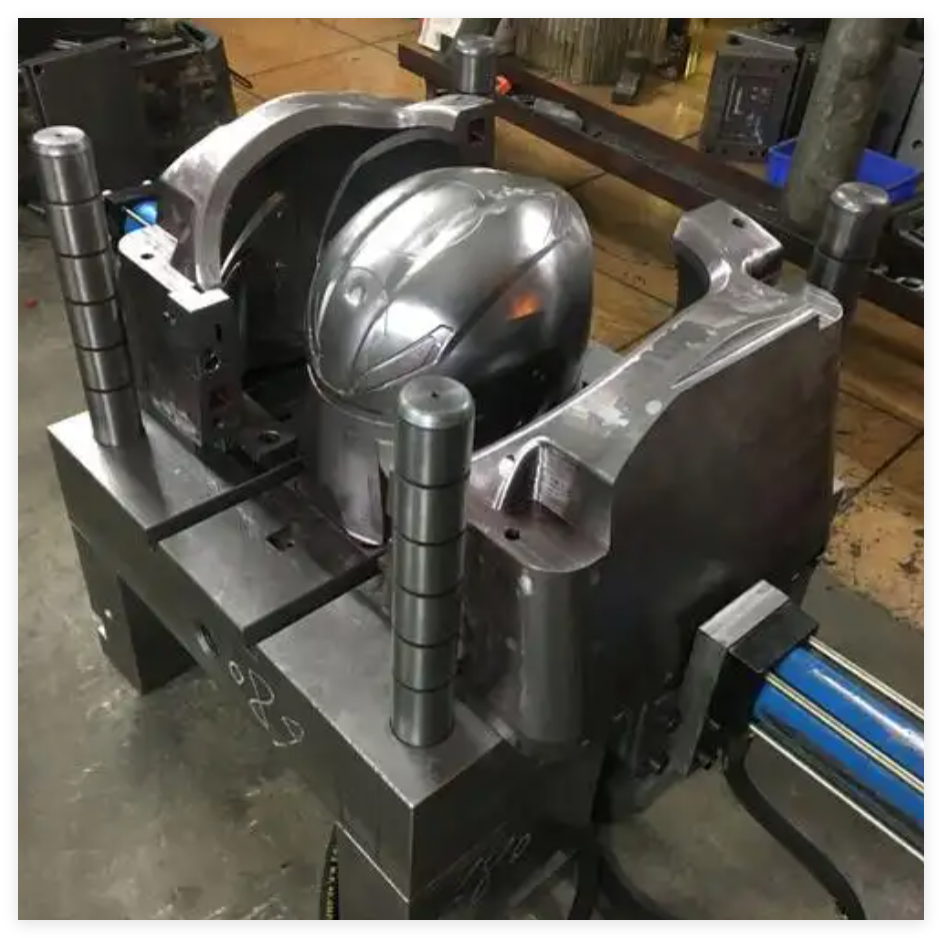

The helmet's deep draw and internal undercuts (for vent scoops and eye port recesses) make it impossible to eject with a simple two-plate mold. Ansix Tech implemented an (reverse mold) structure. In this design, the helmet's exterior surface is formed on the moving side of the mold. Upon opening, the part stays on the moving side and is then ejected. This approach often provides better surface finish on the critical A-side (exterior) and allows for a more effective gating strategy.



To form the undercuts, the design incorporated several sophisticated mechanisms:



Front Mold Tunnel Slides: For undercuts on the helmet's front (visor area), tunnel slides were used. These are angled pins that drive slides within the stationary mold half, retracting them as the mold opens to clear the undercuts without leaving parting lines on visible surfaces.



Lifter and Angle-Pin Systems: Internal undercuts were handled with lifters and angled ejector pins that move at an angle, freeing the part during ejection.



The Science of Cooling and Ejection



As cooling accounts for 50-70% of the total injection molding cycle time, its optimization is paramount for cost control. Ansix Tech designed a conformal cooling channel system that follows the 3D contour of the helmet cavity. Compared to traditional straight-drilled channels, this design ensures more uniform heat extraction, leading to faster cycle times, reduced warpage, and improved part consistency. Engineers meticulously calculated water flow rates to ensure turbulent flow within the channels, which is crucial for maximum heat transfer efficiency.



The ejection system for a large, shallow part like a helmet requires careful planning to avoid distortion or damage. Ansix Tech utilized a multi-point, synchronized ejection system with oil cylinders. This system ensures even, controlled force is applied across the part's entire circumference during demolding.



Precision in Steel and Machining

For the mold base and cavity inserts, pre-hardened P20 steel was selected for its excellent machinability, good polishability, and balanced toughness. Critical cavity surfaces underwent high-precision CNC machining followed by extensive manual polishing to achieve a flawless #A1 (mirror) finish, eliminating any texture that could transfer to the helmet's outer surface.



The following table summarizes the key technical challenges and Ansix Tech's optimized solutions in the helmet mold project:

From Mold to Product: Process Optimization and Quality Assurance

With the mold installed in a high-tonnage injection molding machine, the focus shifted to process optimization. Using a two-stage robust parameter optimization approach, engineers first established a baseline setting to produce acceptable parts, then refined parameters like packing pressure, cooling time, and melt temperature to find the most stable, defect-free process window. This scientific method minimizes reliance on trial-and-error, saving material and time.



A core part of Ansix Tech's value proposition is driving down the cost per part. Beyond cycle time reduction, this involves:



Energy Management: Monitoring and optimizing back pressure and heater band usage to reduce the significant energy draw from screw rotation and heating.



Uptime Maximization: Implementing SMED (Single-Minute Exchange of Die) techniques to slash mold changeover times. In one documented case, SMED implementation reduced setup time by 53%, saving 750 minutes of production monthly.



Quality control was embedded throughout. First-article inspections used Coordinate Measuring Machines (CMM) to verify critical dimensions against the CAD model. During production, statistical process control (SPC) monitored key parameters, and periodic part audits checked for weight, wall thickness (via ultrasonic testing), and visual defects. This data-driven approach ensured that every helmet shell met the stringent specifications.



Conclusion: Delivering Reliability and Value

The successful delivery of the helmet mold project underscores Ansix Tech's holistic philosophy. The company doesn't just manufacture a tool; it delivers a certified, optimized production process. By investing in upfront simulation, innovative mold design, and scientific process engineering, Ansix Tech provides clients with more than a mold—it provides reliability, speed to market, and a lower total cost of ownership.



"For us, value engineering is not about cutting corners," says an Ansix Tech project lead. "It's about applying deep technical expertise at every decision point—material science, fluid dynamics, mechanical design, and thermodynamics—to build efficiency and robustness into the product from the very beginning. Our goal is to make our clients more competitive by ensuring their molds produce high-quality parts predictably and cost-effectively, from the first shot to the millionth."



In an industry where precision, safety, and cost are inextricably linked, Ansix Tech's approach demonstrates that the most significant savings are often found not in cheaper materials or faster machining, but in the intelligent, integrated application of engineering principles across the entire manufacturing lifecycle. The motorcycle helmet rolling off their production line is not just a product of plastic and steel, but a testament to optimized manufacturing intelligence.
