From Design to Delivery: How Ansix Tech is Redefining Efficiency in High-Performance Bearing Cage Manufacturing

In the intricate world of precision engineering, few components are as critical yet understated as the bearing cage. This unassuming part, tasked with separating and guiding rolling elements, directly influences a bearing's lifespan, noise, and efficiency. As industries from automotive to industrial automation push for higher speeds, lower weights, and greater reliability, the shift from traditional metal cages to advanced polymer solutions has accelerated. At the forefront of this transformation is Ansix Tech, a specialist in precision injection molding, which recently completed a landmark project delivering a complex Nylon self-aligning roller bearing cage. This project not only exemplifies cutting-edge manufacturing but also highlights a strategic blueprint for driving down component costs without compromising quality.



Market Demand and Design Imperatives

The global push for energy efficiency and performance is fuelling demand for polymer bearing cages. Nylon cages, with their low inertia, excellent self-lubrication, and corrosion resistance, are ideal for high-speed applications where metal cages would generate excessive heat and wear. The market for nylon bearing components is on a steady climb, driven by expansion in automotive, aerospace, and smart manufacturing.



The design of a self-aligning roller bearing cage is particularly challenging. It must maintain precise pocket geometries to guide spherical rollers, accommodate misalignment without binding, and withstand constant centrifugal forces and friction. Ansix Tech's project targeted a cage for a double-row self-aligning bearing, requiring a single, intricate nylon component to replace more complex multi-part metal assemblies. The design goals were stringent: dimensional stability under load, minimal warpage, and a surface finish that minimizes friction with the rollers.



Navigating standards and Certification

Adherence to international standards is non-negotiable in bearing manufacturing. Ansix Tech’s design and production process conformed to relevant bearing dimension and tolerance standards, such as DIN 630 for self-aligning ball bearings. Furthermore, the project adhered to rigorous internal and customer-specific standards for material performance, fatigue life, and quality assurance. The path to mass production certification involved a multi-stage verification protocol, from initial Design Failure Mode and Effects Analysis (DFMEA) through to production part approval process (PPAP) documentation, ensuring every batch met consistent, certified quality.



The Prototype Pathway: From Digital Model to Verified Part

The journey began with a precise 3D model. Ansix Tech’s engineers utilized advanced UG software for solid modeling, creating a digital twin of the cage. This model was then subjected to a critical phase: Design for Manufacturability (DFM) and Mold Flow Analysis.



Before any steel was cut, the team employed Autodesk Moldflow simulation software. This virtual prototyping tool predicted how the nylon melt would fill the mold, identifying potential defects like air traps, weld lines, and uneven cooling. The simulation optimized gate locations, runner sizes, and cooling channel layout, aiming for a balanced fill and minimal residual stress. This step is proven to reduce physical try-out costs and mold rework by 30-50%, slashing weeks off the development schedule.



Based on the analysis, a prototype mold was machined. The first shots revealed common challenges in thin-walled, precision parts: slight shrinkage and potential warpage. Mirroring methodologies documented in industry research, Ansix Tech conducted a structured Design of Experiments (DOE). Factors like melt temperature, Mold Temperature, injection speed, and packing pressure were systematically varied. The optimal parameter set was identified, virtually eliminating visual defects and achieving the required dimensional tolerances. This data-driven approach transformed the prototype into a manufacturable design.



The Heart of the Solution: Strategic Material Selection

Material choice is a primary lever for both performance and cost. Ansix Tech selected a glass-fiber reinforced Nylon 66 (PA66 GF30) for this cage. This material offers a superior blend of properties:



Enhanced Strength & Stiffness: The 30% glass fiber reinforcement provides the mechanical strength to withstand operational loads and centrifugal forces.



Dimensional Stability: Reduced coefficient of thermal expansion minimizes size changes with temperature fluctuations, crucial for maintaining precise clearances.



Wear Resistance & Self-Lubrication: Inherent to nylon, these properties reduce friction and wear, extending bearing life.



Cost-Effectiveness: Compared to specialty polymers like PEEK, PA66 GF30 delivers an excellent performance-to-cost ratio, forming the foundation of Ansix Tech's cost-reduction strategy.



Mastering the Mold: Design, Steel, and Systems

The success of high-volume injection molding hinges on the mold itself. Ansix Tech's mold design embodied several key aspects:



Mold Steel Selection: For longevity against the abrasive glass-filled nylon, a premium hardened tool steel (e.g., H13 or similar) was used for the core and cavity. This steel offers excellent wear resistance, polishability, and thermal conductivity.



Advanced Cooling System: Uneven cooling is the enemy of dimensional accuracy. The mold featured a conformal cooling channel design, optimized through simulation, to extract heat uniformly from the complex cage geometry. This minimized cycle time and reduced part warpage.



Precision Gating and Runner System: A hot-runner system was employed to eliminate cold runner waste, improving material yield and reducing cycle time. The gate location was meticulously chosen based on flow analysis to ensure balanced filling and minimize vestige.



Robust Ejection System: Given the delicate pocket features, a multi-pin ejection system with precise alignment was designed to apply even, distortion-free force for part release.



Conquering Manufacturing and Processing Challenges

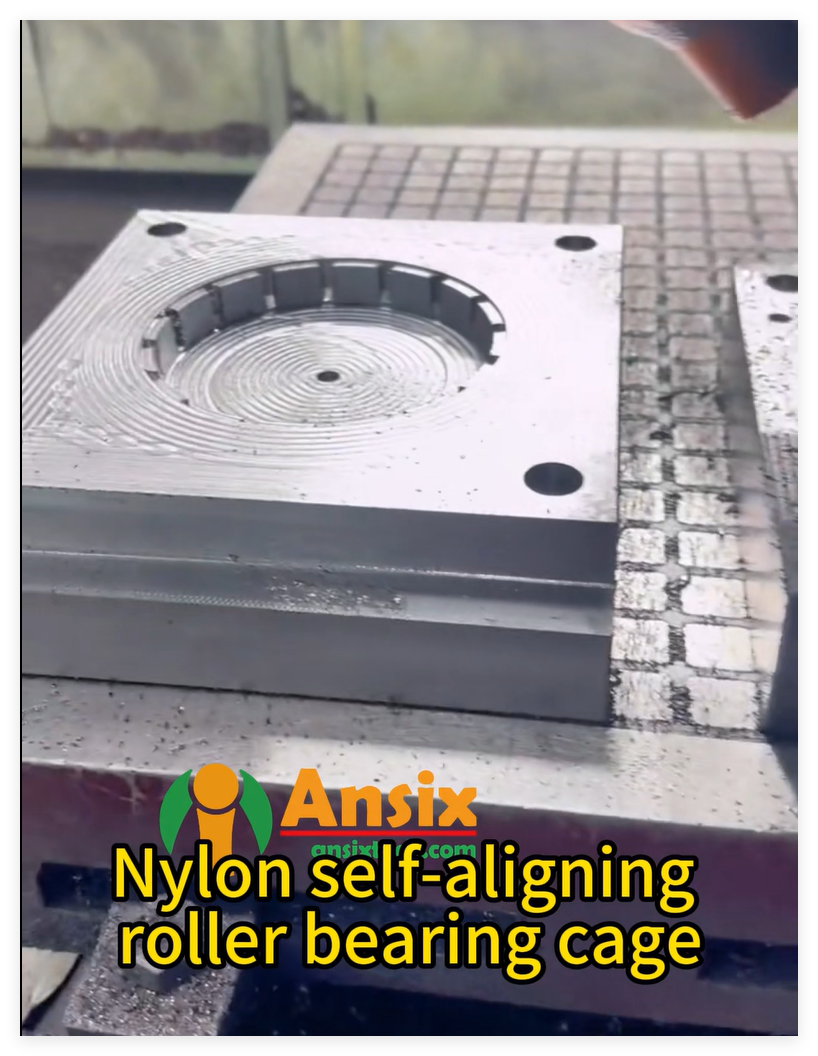

Mold manufacturing for such a part presented significant hurdles. Machining the intricate pocket profiles for the spherical rollers required high-precision, 5-axis CNC machining and expert EDM (Electrical Discharge Machining) operations. Maintaining tolerances within microns across all pockets was paramount. The workflow integrated CAD/CAM programming, precision machining, meticulous polishing, and layer-by-layer quality inspection.



The injection molding process itself faced challenges:



Material Drying: Nylon is hygroscopic and must be thoroughly dried before processing to prevent hydrolysis and surface defects.



Abrasive Wear: The glass fibers accelerate wear on the mold's gates and surfaces, necessitating robust steel and proactive maintenance.



Shrinkage Control: Achieving predictable and uniform shrinkage was critical for final dimensions. This was managed through the optimized process parameters validated during prototyping.



Optimizing for Efficiency and Cost

Ansix Tech’s commitment to cost reduction extends beyond material choice. The injection molding process was finely tuned for maximum efficiency:



Cycle Time Reduction: The optimized cooling system and stable process parameters significantly reduced the cycle time, boosting output per machine hour.



Scientific Molding Principles: By implementing scientific molding techniques—using cavity pressure sensors and real-time process control—the team achieved a highly stable process. This stability reduces scrap, minimizes variation, and allows for the confident use of material cost-saving strategies.



Material & Energy Savings: The stable process minimizes over-packing, reducing material consumption per part. Furthermore, the efficient thermal design of the mold lowers energy requirements for heating and cooling.



As evidenced in other manufacturing sectors, such process optimization can lead to substantial savings, including significant reductions in material, labor, and machine costs.



End-to-End Quality and Rapid Delivery

Quality control was embedded at every stage. Incoming material was certified, in-process dimensions were monitored using statistical process control (SPC), and finished cages underwent 100% visual inspection and critical dimension sampling. Functional tests, such as trial fits with rollers and raceways, were also conducted.



Packaging was designed for protection and efficiency, using custom trays that prevent damage during transit and facilitate automated assembly at the customer's site.



The entire project, from finalized design to first production batch, was executed under a rapid delivery protocol. This was made possible by the upfront simulation reducing trial-and-error, parallel processing of mold manufacturing and material qualification, and a seamless handover between engineering and production teams. Ansix Tech delivered production-ready, certified parts weeks ahead of traditional timelines.



Ansix Tech: Delivering Reliability and Value

This project underscores Ansix Tech's deep industry experience in manufacturing high-precision, high-performance polymer components. The company’s expertise spans the entire value chain: from collaborative design and material science to advanced mold engineering and optimized production.



Most importantly, Ansix Tech demonstrates that high quality does not necessitate high cost. Through strategic material selection (opting for high-value engineering plastics like PA66 GF30), upfront investment in simulation and process optimization, and a relentless focus on manufacturing efficiency, Ansix Tech significantly lowers the total cost of ownership for its customers. The result is a component that offers superior performance—lightweight, quiet, and durable—at a competitive price point, delivering unmistakable value in a demanding global market.
