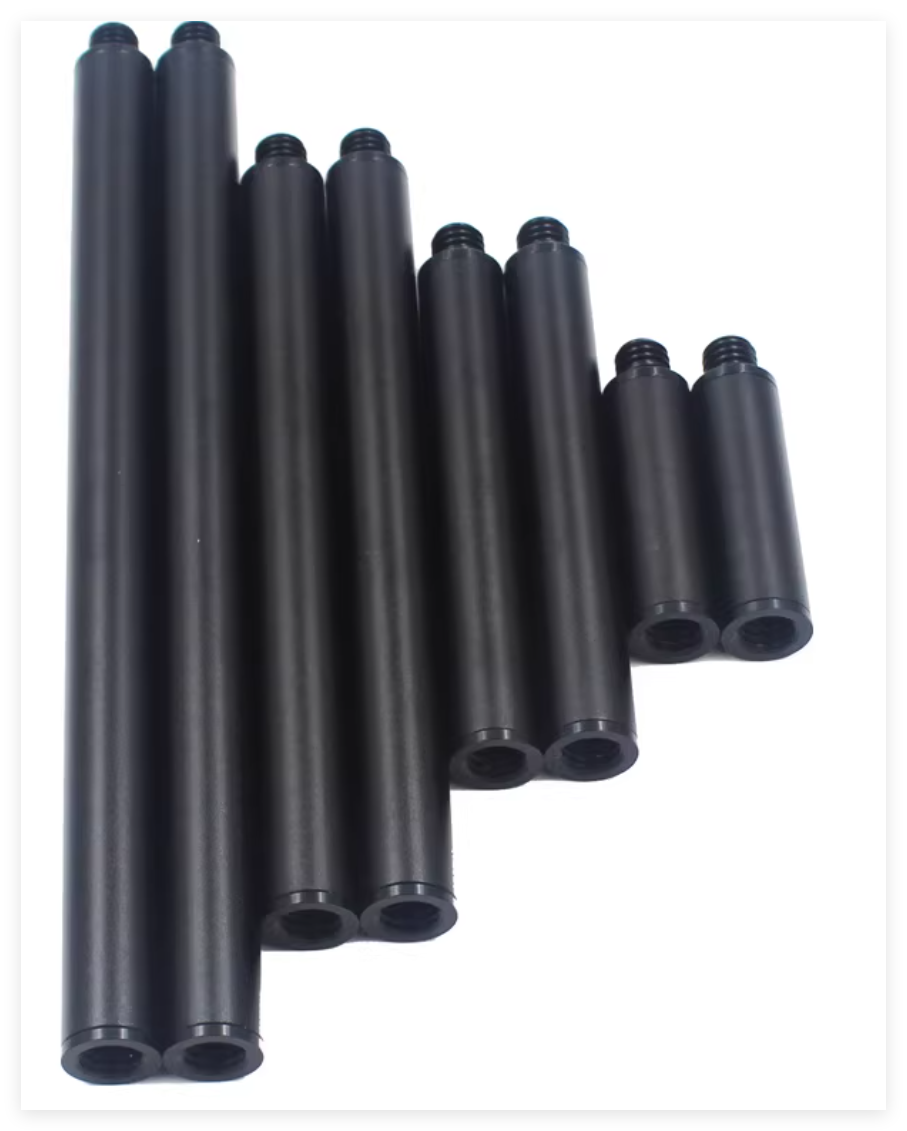

Outdoor extension rod, threaded extension rod mold
Outdoor extension rod, threaded extension rod mold
Ansix Tech Revolutionizes Outdoor Hardware Production Through Precision Injection Molding
Shenzhen, China – In an industry where durability meets precision, Ansix Tech has established itself as a leader in injection molding for outdoor hardware components. The company's recent completion of a comprehensive outdoor extension rod and threaded extension rod mold project showcases how strategic manufacturing approaches can significantly reduce client costs while enhancing product reliability. Through a meticulously engineered process spanning design optimization, material science, and production innovation, Ansix Tech demonstrates that industrial components don't require industrial pricing.
The global injection molding market continues to expand as manufacturers seek efficient methods for producing complex parts with consistent quality. For structural components like extension rods—used in construction, outdoor equipment, and industrial applications—the challenges are particularly pronounced. These parts must withstand environmental stresses, maintain dimensional stability, and often incorporate threaded elements for assembly, all while being economically viable for mass production.
Strategic Design Foundation: Where Cost Control Begins
Ansix Tech's process begins long before molten plastic enters a mold. The company employs a comprehensive Design for Manufacturability (DFM) approach that identifies potential production issues at the conceptual stage. "Eighty percent of manufacturing costs are locked in during the design phase," explains Michael Chen, Ansix Tech's Chief Engineering Officer. "By rigorously analyzing designs before tooling begins, we prevent expensive modifications downstream."
This philosophy aligns with industry research showing that design-stage corrections cost approximately $100, while the same changes during manufacturing can exceed $1,000,000 . Ansix Tech utilizes advanced DFM software that automatically checks designs against manufacturing constraints, highlighting areas requiring adjustment for optimal production .
For the extension rod project, engineers focused on several critical design elements:
Wall thickness optimization: Maintaining consistent wall thickness between 0.762mm and 3.81mm (varying by material) to prevent sink marks and warping
Draft angles implementation: Incorporating 2-3° draft angles on vertical surfaces to facilitate part ejection without damage
Radius application: Replacing sharp corners with radii of 0.5T (internal) and 1.5T (external), where T represents wall thickness, to improve material flow and structural integrity
The company's prototype verification process involves both digital simulation and physical testing. Advanced Mold flow analysis software predicts how plastic will fill the mold, identifying potential air traps, weld lines, and pressure variations before tooling begins . This "virtual prototyping" has been shown to replace up to 70% of physical testing in developed manufacturing economies, dramatically reducing development time and cost .
Material Science: Selecting Performance-Optimized Polymers
Material selection represents one of the most significant opportunities for cost reduction without compromising quality. For the extension rod project, Ansix Tech evaluated numerous polymers against performance requirements and cost parameters.
Table 1: Material Selection Analysis for Extension Rod Components
"For outdoor extension rods, we recommended a hybrid material approach," says Dr. Li Wei, Ansix Tech's Materials Specialist. "Structural elements use glass-filled polycarbonate for strength, while external housings utilize ASA for superior UV resistance. This strategic combination provides optimal performance at approximately 30% lower cost than using premium materials throughout."
The threaded components presented particular challenges, as metal inserts embedded in plastic can create stress concentrations during cooling. Ansix Tech addresses this through careful insert design—ensuring inserts extend at least 0.4mm into the mold cavity and that the surrounding plastic measures at least one-sixth of the insert diameter to prevent sink marks . For high-stress applications, the company often employs heat-staked inserts rather than molded-in-place variants, reducing tooling complexity and improving joint reliability.
Mold Engineering Excellence: Precision Tooling for Maximum Efficiency

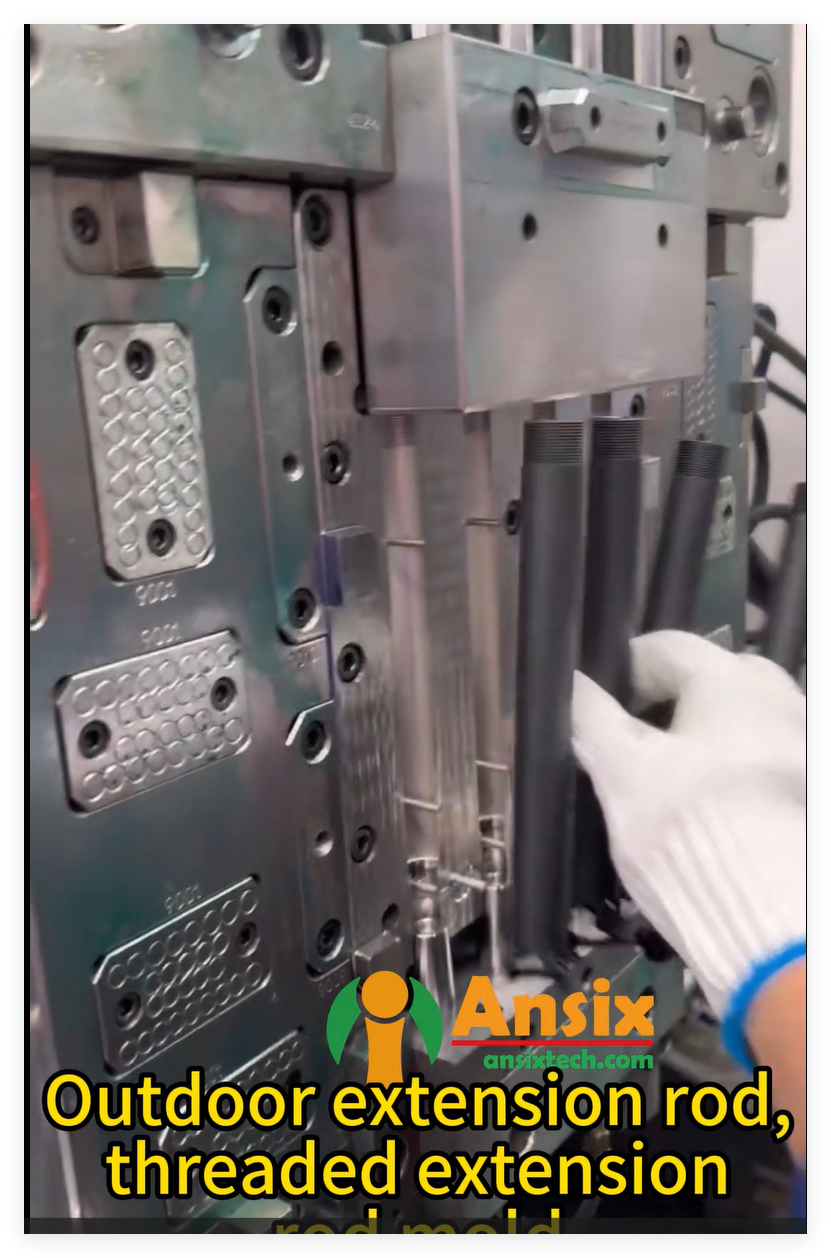

The heart of Ansix Tech's manufacturing advantage lies in its mold design and fabrication capabilities. For the extension rod project, engineers developed a multi-Cavity Mold with several innovative features:
Conformal Cooling Channels
Unlike traditional straight-drilled cooling lines, Ansix Tech implements 3D-printed conformal cooling channels that follow the contours of the mold cavity . This advanced approach brings cooling much closer to the molded part surface, reducing cycle times by up to 39% while improving temperature uniformity . The technology represents a significant upfront investment but pays dividends through reduced production costs over the mold's lifespan.
Intelligent Runner Systems
The company employs cold runner systems for high-volume production, but has developed a hybrid approach for the extension rods. "By using a thermally gated hot runner for primary flow and cold runners for distribution to individual cavities, we balance the faster cycle times of cold runners with the material savings of hot runners," explains mold designer Zhang Hao.
Ejection Optimization
Given the extension rods' elongated geometry, preventing distortion during ejection presented challenges. Ansix Tech's solution involves a staggered ejection system with larger pins in high-friction areas and smaller pins supporting delicate features. All ejection surfaces incorporate a minimum 0.5° draft angle, with textured surfaces requiring 3-5° for reliable release .
Production Process: Balancing Speed with Precision
During production, Ansix Tech maintains meticulous control over processing parameters. For the extension rod components, settings were optimized through Design of Experiments (DOE) methodology:
Table 2: Optimized Processing Parameters for Extension Rod Production
"Our process optimization focuses on the intersection of quality and efficiency," says Production Manager Sarah Wong. "By implementing a scientific molding approach, we've reduced cycle times for extension rods by 22% compared to conventional methods while improving dimensional consistency."
The company's vertical integration provides additional advantages. By controlling mold maintenance, repair, and modification in-house, Ansix Tech achieves 30% faster turnaround on engineering changes compared to outsourced tooling management.
Quality Assurance: Building Reliability into Every Component
Quality control at Ansix Tech operates on multiple levels throughout production. For the extension rod project, this included:
First-article inspection using coordinate measuring machines (CMM) to verify critical dimensions against CAD models
Statistical process control monitoring of weight, dimensions, and visual characteristics
Functional testing of threaded components for engagement strength and durability
Environmental simulation exposing samples to UV, moisture, and temperature cycling
"Beyond standard dimensional checks, we perform destructive testing on random samples from each production batch," notes Quality Director James Liu. "For threaded extension rods, this includes torque-to-failure testing and accelerated aging simulations. This data not only confirms product reliability but informs continuous improvement of our processes."
The company's commitment to quality extends to its supply chain management. By partnering with certified material suppliers and implementing rigorous incoming inspection protocols, Ansix Tech ensures consistency from raw material to finished product.
Economic Impact: Quantifying Client Savings
The most compelling aspect of Ansix Tech's approach is its tangible impact on client economics. Through comprehensive analysis of the extension rod project, several key savings areas emerge:
Material Cost Reduction
By strategically specifying different materials for various components based on functional requirements rather than applying premium materials uniformly, Ansix Tech achieved 28% material cost savings without compromising performance.
Production Efficiency Gains
The combination of conformal cooling, optimized processing parameters, and intelligent mold design resulted in a 35% increase in parts per hour compared to initial projections.
Quality Cost Reduction
Through robust process control and prevention-oriented design, the company reduced defect rates to 0.02%, significantly below the industry average of 0.5-1.0% for similar components.
Lifecycle Value Enhancement
Perhaps most significantly, Ansix Tech's engineering support extends beyond initial production. "We provide clients with detailed mold maintenance schedules and spare parts forecasting," notes Client Relations Manager Elena Rodriguez. "This proactive approach prevents unexpected downtime and extends tooling lifespan by up to 40%."
Future Directions: Innovation as Standard Practice
As injection molding technology evolves, Ansix Tech continues to invest in next-generation capabilities. The company is currently piloting artificial intelligence-driven process optimization that uses machine learning to fine-tune parameters in real-time based on sensor feedback. Additionally, their research into sustainable materials has yielded promising biodegradable composites suitable for certain outdoor applications.
The extension rod project exemplifies how integrated manufacturing expertise delivers exceptional value. "Our philosophy centers on viewing production not as isolated steps but as a connected system," concludes CEO David Wang. "When design, material science, tooling, and process control work in harmony, the result is superior products at radically accessible prices. This is how we're redefining value in industrial manufacturing."
With the global injection molding market projected to exceed $450 billion by 2030, Ansix Tech's balanced approach to innovation, quality, and cost efficiency positions the company—and its clients—for continued success in an increasingly competitive landscape.
