Precision from Polymer: Inside Ansix Tech’s Advanced Molding for Critical Float Components
In the highly specialized world of industrial fluid management, the reliability of a system often hinges on its smallest components: floats and switches. These parts, frequently operating in harsh chemical and thermal environments, must perform with unwavering precision. This report delves into the sophisticated injection molding and micro-foaming processes pioneered by Ansix Tech, a leader in manufacturing PP foamed floats, float switches, and intelligent liquid level sensors. By integrating advanced material science, predictive engineering through mold flow analysis, and innovative cooling technologies, Ansix Tech has established a manufacturing paradigm that prioritizes ultimate reliability and client value through rigorous process optimization and quality assurance.
Introduction: The Critical Role of Precision in Fluid Control
From monitoring coolant levels in manufacturing plants to managing wastewater in treatment facilities, liquid level controls are indispensable. The components at the heart of these systems—floats and switches—face a relentless barrage of challenges: corrosive chemicals, extreme temperatures, constant physical wear, and the critical need for accuracy. A failure here can lead to system shutdowns, costly spills, or safety hazards.
Ansix Tech has positioned itself at the forefront of this niche by specializing in the design and manufacture of these essential components. Their expertise spans from durable polypropylene (PP) foamed floats to complex intelligent liquid level switches featuring integrated electronics. The company’s mission extends beyond simple part supply; it focuses on providing complete reliability and engineered value, helping clients achieve cost reduction through optimized materials, refined processes, and enhanced manufacturing efficiency for the majority of their component needs.
- Foundational Stage: Design and Prototype Verification
The journey of a dependable float component at Ansix Tech begins long before molten plastic reaches a mold. It starts with a comprehensive design phase focused on translating application requirements—such as fluid specific gravity, chemical compatibility, temperature range, and switching sensitivity—into precise engineering specifications.
Advanced digital prototyping and simulation tools are employed to create virtual models, allowing engineers to test form, fit, and basic function. This digital phase is followed by physical prototype manufacturing, often using rapid techniques like 3D Printing or soft-tooling for initial batches. These prototypes undergo rigorous verification testing, including buoyancy checks in fluids of varying densities, dry-run switch actuation tests, and preliminary material exposure trials. This stage is crucial for identifying potential flaws, validating the design intent, and ensuring the product will perform as required in the field, saving significant cost and time before hard tooling is commissioned.
- The Core of Performance: Material Selection and Science
The selection of plastic material is a decisive factor in the performance and longevity of float components. Ansix Tech’s deep industry experience informs a meticulous material selection process.

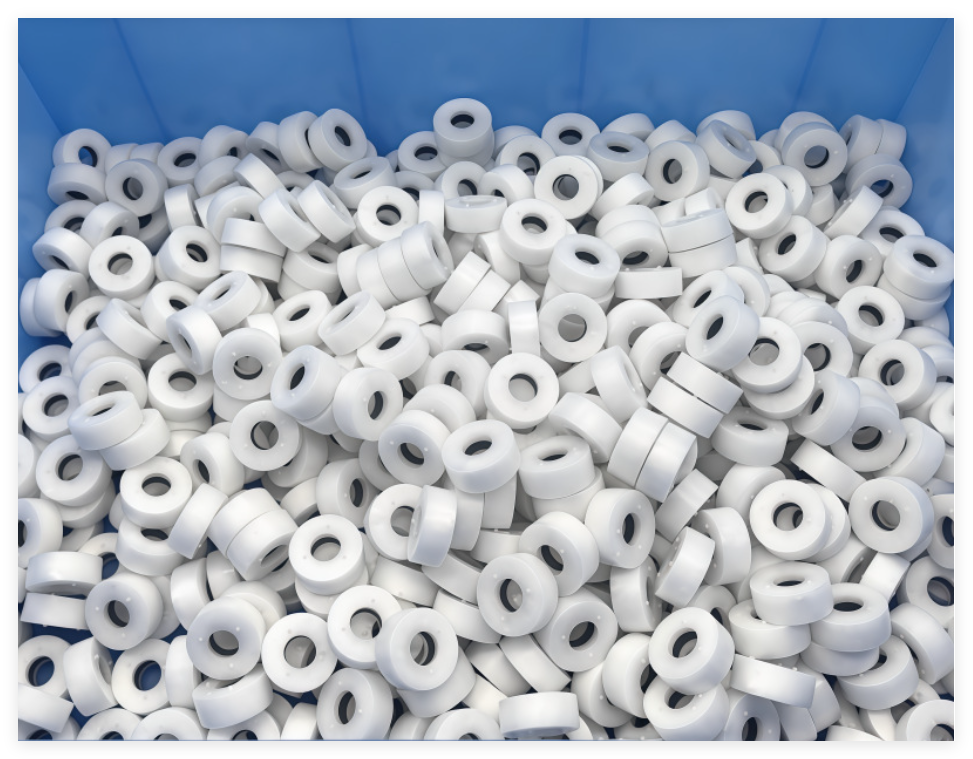

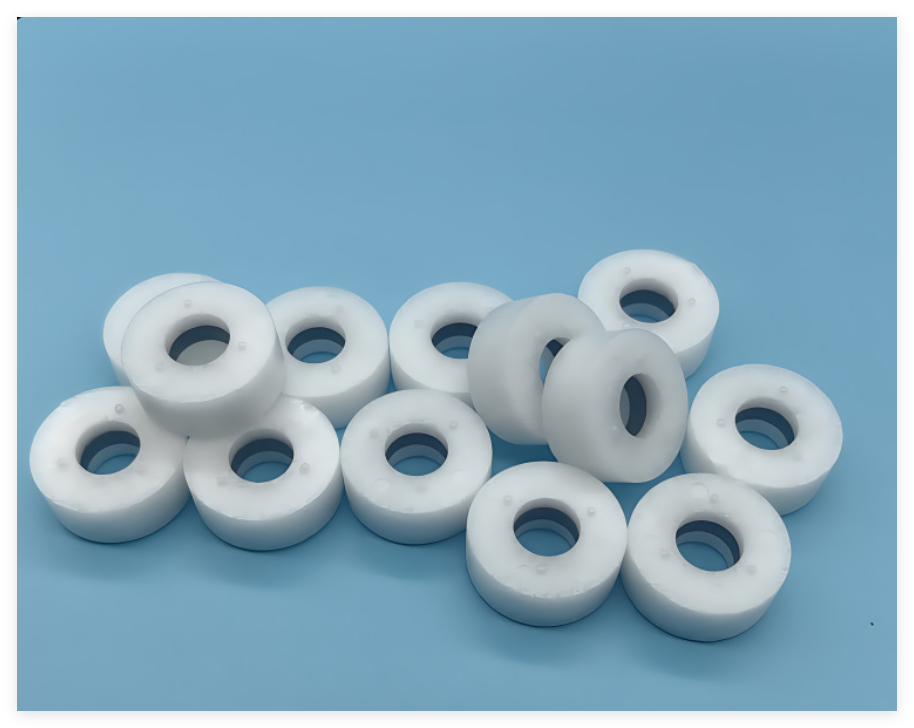

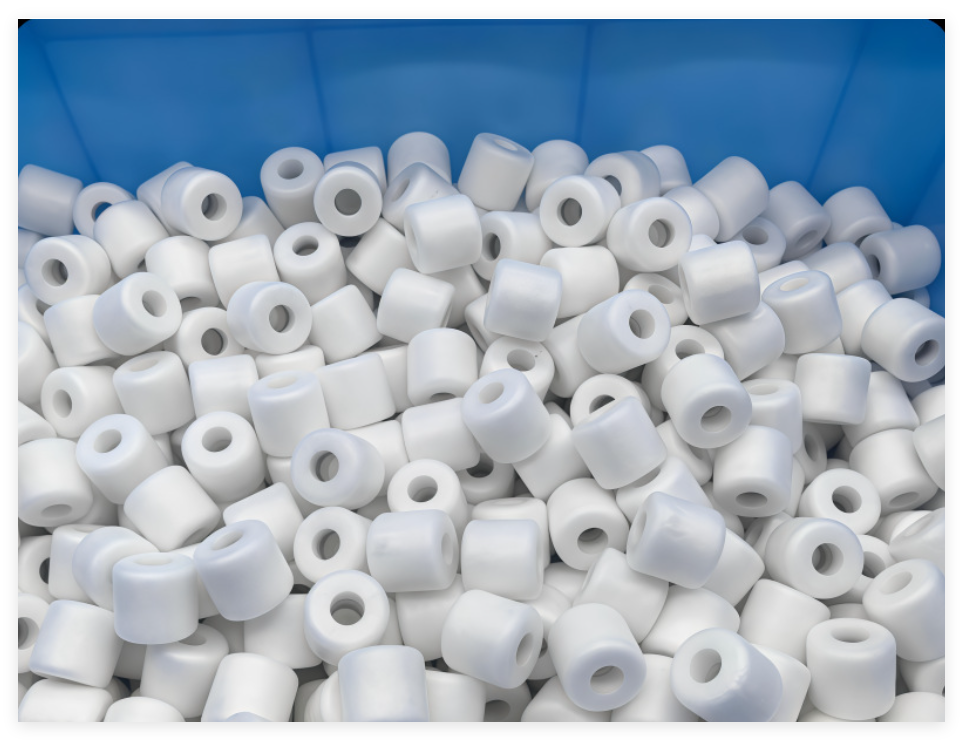

Polypropylene (PP) for Foamed Floats: For standard foamed floats, Ansix Tech typically utilizes generic or high-impact PP grades. The choice of a specific PP resin is based on its melt flow index, impact resistance, and long-term stability. The foaming process, critical for achieving the precise density needed for buoyancy, involves introducing a physical or chemical blowing agent. This creates a closed-cell foam structure that is water-resistant, durable, and provides consistent buoyant force. For PP micro-foamed floats, an advanced process creates an even finer and more uniform cell structure, enhancing mechanical strength and dimensional stability for more demanding applications.
Engineering Plastics for Switches: For float switch bodies and components requiring higher performance, materials like Polyvinylidene Fluoride (PVDF) are selected. PVDF offers exceptional resistance to harsh chemicals, high temperatures (up to 105°C continuous use), and maintains strong mechanical properties. Other options include Polyphenylene Sulfide (PPS) for very high thermal resistance and glass-filled nylon for added structural rigidity where needed.
Table 1: Common Material Selection for Float Components
- Predictive Engineering: Mold Flow Analysis (DFM)
To ensure manufacturability and preempt defects, Ansix Tech employs Computer-Aided Engineering (CAE), specifically Moldflow analysis, as a cornerstone of its Design for Manufacturability (DFM) process.
A recent analysis report for a float component illustrates this critical step. Engineers begin by importing the 3D part model and creating a dual-surface mesh to simulate the injection process. The selected PP material data, including its viscosity curve and PVT (Pressure-Volume-Temperature) relationship, is loaded into the software. The analysis then simulates the injection phase, providing vital predictive data:
Fill Time & Pattern: The simulation showed a fill time of approximately 2.8 seconds, confirming a balanced and complete fill without short shots.
Injection Pressure: The peak pressure at the V/P (Velocity/Pressure) switchover point was predicted to be around 56.34 MPa, ensuring the selected injection molding machine has adequate capacity.
Weld Lines & Air Traps: The software identifies potential locations where weld lines (weak points where melt fronts meet) and air traps (pockets of trapped gas) may form. For instance, the analysis noted that air traps were mainly generated at weld locations, guiding designers to add or optimize venting in those areas.
Cooling & Warpage: Preliminary cooling efficiency and part warpage are analyzed to ensure dimensional accuracy.
This virtual trial run allows engineers to optimize gate locations (the entry points of plastic into the mold cavity), runner systems, and cooling layouts before steel is ever cut, preventing costly mold rework.
- Building the Tool: Mold Design and Steel Selection
The mold is the heart of production, and its design directly impacts part quality, cycle time, and tool life. Ansix Tech’s mold design priorities are:
Robust Cooling Systems: Uniform cooling is essential for minimizing cycle time and preventing part warpage. Beyond traditional drilled cooling channels, Ansix Tech utilizes conformal cooling technology where applicable. These channels are 3D-shaped to follow the contour of the part closely, providing faster and more even heat extraction. Studies show conformal cooling can reduce cycle times by up to 39% and decrease part temperature variation by over 36% compared to standard baffle systems.
Efficient Runner and Ejection: The runner system is designed for minimal pressure drop and material waste. For multi-cavity molds, a hot runner system is often used to keep the plastic molten in the channels. The ejection system is carefully designed to apply uniform force without distorting the delicate foamed structure or damaging the part surface.
Strategic Steel Selection: Following industry best practices, Ansix Tech prioritizes technical performance over initial steel cost for critical mold components. Pre-hardened steels like P20 are common for good overall toughness and polishability. For high-volume production or abrasive materials, hardened tool steels like H13 are selected for superior wear resistance. The choice balances properties like thermal conductivity, polishability, and resistance to corrosion and wear to maximize the mold’s lifespan.
- Mastering the Process: Injection Molding and Foaming
The actual manufacturing stage synthesizes all prior planning. The process for a PP foamed float involves:
Material Preparation: PP resin is combined with a precisely metered blowing agent.
Injection: The mixture is plasticized and injected into the mold cavity under high pressure.
Foaming Activation: Upon filling, a change in pressure or temperature triggers the blowing agent, causing the material to expand and fill the cavity completely, forming the closed-cell foam structure.
Cooling and Ejection: The part is cooled sufficiently in the mold before being ejected.
Key challenges in this phase include managing the foam expansion ratio consistently and preventing surface defects like splay or voids. For intelligent liquid level switches, which may involve overmolding a seal around electronic components, the process requires even tighter control of temperature and pressure to protect sensitive parts.
- The Pursuit of Excellence: Process Optimization and Quality Control
Ansix Tech’s commitment to client value is realized through relentless process optimization. This involves:
Efficiency Improvement: Fine-tuning every parameter—injection speed, holding pressure, cooling time—to minimize cycle time without sacrificing quality. Adopting conformal cooling is a prime example of this.
Cost Control: Optimization extends to reducing material waste through runner size minimization, improving yield rates to lower per-part cost, and extending tool life through proper maintenance and optimal steel selection.
A robust Lean Quality Management System underpins all operations. This system moves from "post-failure analysis" to "real-time preventive monitoring". It encompasses:
Incoming Material Inspection.
In-Process Checks: Critical dimensions, weight (for density control), and visual defects are monitored statistically.
Final Functional Testing: Every float switch undergoes a functional test to verify its actuation point and electrical continuity, ensuring it meets specifications like a precise 1mm close level in water.
- The Final Mile: Packaging and Rapid Delivery
Recognizing that reliability extends to delivery, Ansix Tech streamlines its End-of-Line (EOL) processes. Automated systems can be integrated for packaging and shipping, using barcode scanning for accurate product identification and tracking to minimize human error. This allows for:
Optimized Packaging: Tailored to prevent damage during transit.
Automated Documentation: Rapid generation of shipping documents and compliance certificates.
Efficient Logistics: Coordinated dispatch to meet urgent client needs, supporting a promise of rapid and reliable delivery.
Engineering Trust, Delivering Value
In the precise and demanding field of fluid level control, components cannot be mere commodities. Through a fusion of material expertise, predictive engineering, precision tooling, and a culture of continuous optimization, Ansix Tech has developed a manufacturing ecosystem dedicated to building unwavering reliability into every foamed float and level switch. Their process demonstrates that true value for clients is achieved not by cutting corners, but by intelligently optimizing every step—from polymer selection to final packaging—to deliver superior performance, reduce total cost of ownership, and provide the certainty that industrial systems demand.
