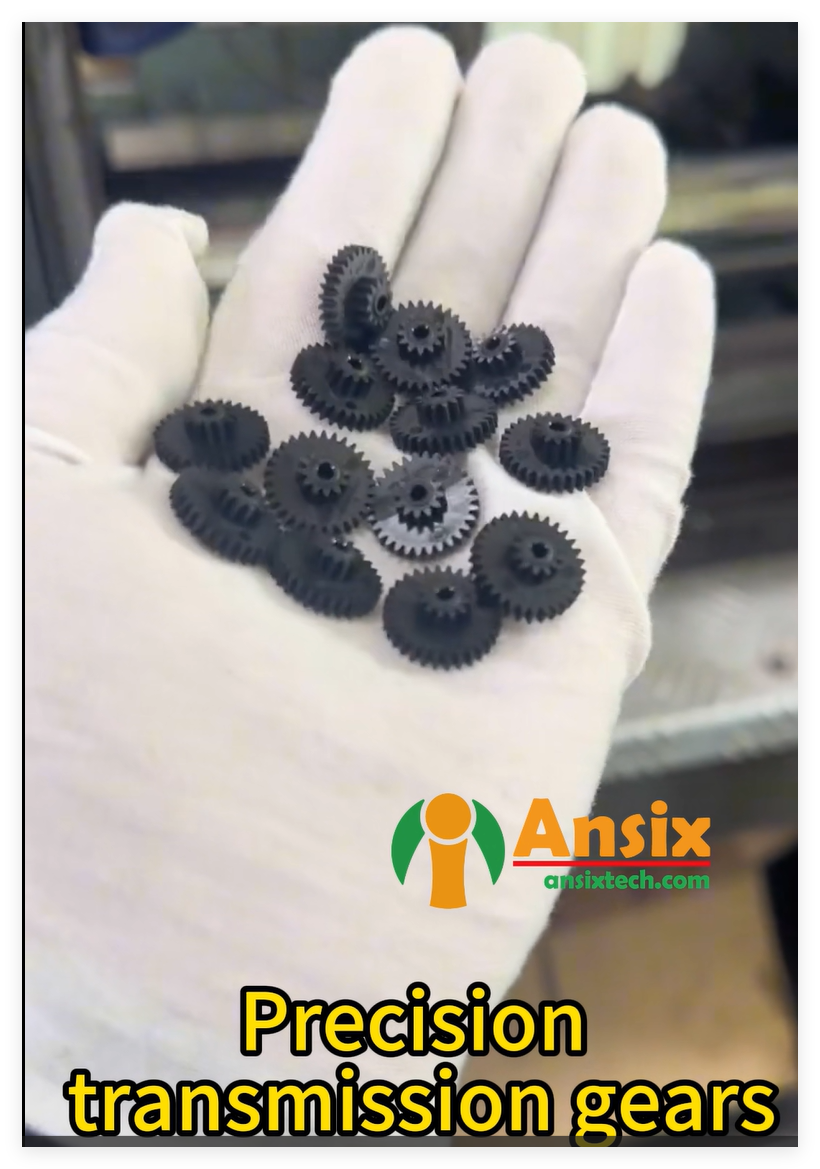

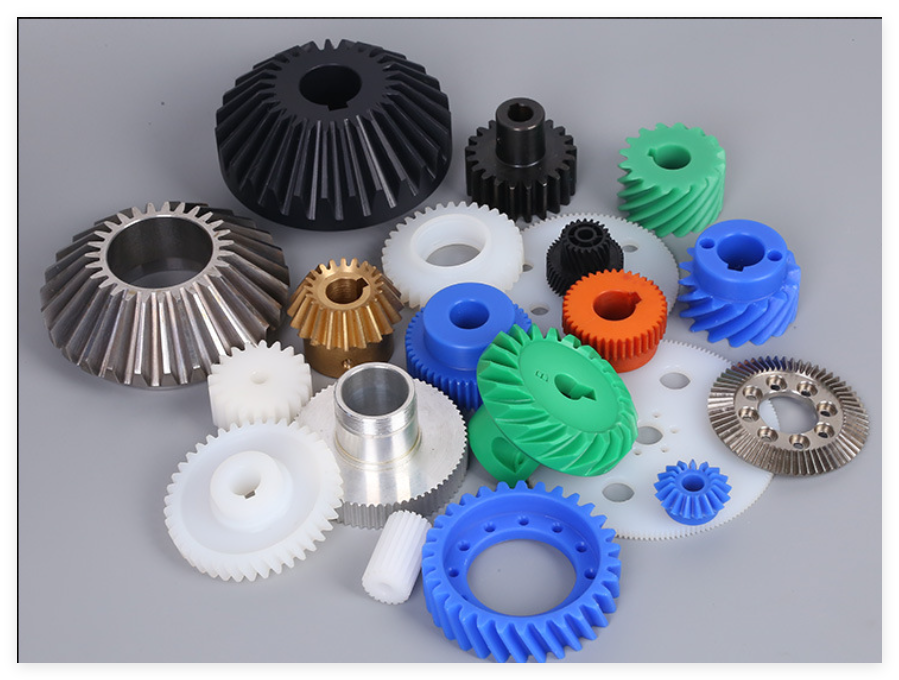

Precision transmission gears
Precision transmission gears
Engineering Excellence: How Ansix Tech Revolutionizes Precision Gear Manufacturing through Advanced Injection Molding
Precision in Motion: Meeting the Automotive Industry's Most Demanding standards
In the intricate world of automotive engineering, the transition from powerful engines to turning wheels hinges on a symphony of precisely engineered components. At the heart of modern transmissions—particularly in the increasingly popular dual-clutch and automatic systems—lie high-performance plastic gears. These components must withstand a complex array of stresses, including high torque, elevated temperatures, and constant exposure to lubricants and chemicals. For manufacturers like Ansix Tech, producing these critical parts is not merely a manufacturing process; it is a meticulous exercise in precision engineering, advanced materials science, and intelligent cost optimization. This article explores how Ansix Tech navigates the complete journey of creating Precision Transmission Gears, from initial digital simulation to certified mass production, while systematically driving down costs for their customers without ever compromising the exacting standards the automotive sector demands.
The Blueprint for Success: Design, Standards, and Prototyping
The journey of a precision gear at Ansix Tech begins long before molten plastic fills a mold. It starts with a comprehensive understanding of the gear's function, load requirements, and lifecycle within the transmission system. Adherence to rigorous industry standards, such as the GMW18196, provides the foundational framework. This standard classifies molded components into categories—General, Precision, and High Precision—and outlines the formal process from initial tryouts (T1) through to the Start of Regular Production (SORP), ensuring every step is governed by stringent process assurance and capability compliance.
Digital Prototyping and Simulation (DFM/CAE): Ansix Tech employs a robust Design for Manufacturability (DFM) process powered by advanced simulation software. Utilizing tools like Moldex3D Flow, engineers conduct a full 3d Injection molding analysis. This simulation predicts the flow of molten plastic within the mold cavity, identifying potential issues such as weld lines (which can create structural weaknesses in a gear tooth), air traps, uneven filling, and differential shrinkage. For a precision gear, the location of a weld line can be the difference between a reliable component and a catastrophic failure.
By simulating countless scenarios virtually, the team optimizes critical parameters:
Gate Location: Determining the optimal point where plastic enters the mold is crucial for ensuring uniform flow to all gear teeth, minimizing orientation-dependent material properties.
Cooling Channel Design: Early thermal analysis helps design a cooling system that ensures rapid, uniform heat dissipation, which is vital for controlling cycle time and minimizing part warpage.
Structural Integrity: In some cases, advanced finite element analysis (FEA) software like ANSYS is integrated to predict how the mold itself might deform under intense injection pressure, allowing for pre-emptive compensation in the mold design.
This virtual validation culminates in the creation of a physical prototype. This first article is subjected to a battery of tests—dimensional inspection, material property verification, and functional testing under simulated loads. The prototype phase is a collaborative checkpoint with the customer, ensuring the design intent is fully met before a single kilogram of mold steel is cut.
The Foundation of Performance: Strategic Material Selection
The performance envelope of a plastic gear is fundamentally defined by its material. Ansix Tech’s engineers function as material strategists, selecting resins that balance performance with cost-effectiveness. For demanding transmission applications, high-performance thermoplastics are the standard.
A prime example is Polyphenylene Sulfide (PPS) reinforced with long glass fibers. This material has become a cornerstone for advanced gear shift modules due to its exceptional portfolio of properties:
High Strength & Stiffness: It maintains remarkable mechanical integrity even at the elevated temperatures found inside operating transmissions.
Dimensional Stability: It exhibits very low shrinkage and creep resistance, meaning gears retain their precise shape and tooth profile under constant load.
Chemical Resistance: It is highly resistant to degradation from transmission fluids and lubricants.
Enhanced Performance with Fibers: The integration of long glass fibers (e.g., 40-50% by weight) creates a reinforcing network within the plastic matrix. This significantly boosts impact strength, energy absorption, and further reduces the anisotropic (direction-dependent) shrinkage that can lead to part warpage.
The following table summarizes key material considerations for precision gears:
Table: High-Performance Materials for Precision Transmission Gears
Mastering the Mold: A Symphony of Precision Tooling
The mold is the heart of the injection molding process, and for precision gears, it is a masterpiece of engineering. Ansix Tech’s mold design philosophy is governed by the principle that every detail must contribute to part quality, tool longevity, and production efficiency.
- Mold Steel Selection: The choice of steel is a critical decision impacting durability, polishability, and cost. For high-volume precision gear production, pre-hardened or through-hardened tool steels (e.g., H13, S136) are selected for their excellent wear resistance, ability to hold tight tolerances over millions of cycles, and resistance to corrosion from cooling water.
- Advanced Cooling Systems (Conformal Cooling): Here, Ansix Tech leverages cutting-edge Additive Manufacturing (3D printing) to gain a decisive advantage. Traditional drilled cooling channels are straight-lined and cannot follow the complex contours of a gear mold, leading to uneven cooling. Using Design for Additive Manufacturing (DfAM) principles, engineers design conformal cooling channels that snake uniformly around the cavity and core, mirroring the gear's geometry.
The benefits are transformative:
Cycle Time Reduction: Uniform heat extraction can shorten cooling time by 30-50%, directly boosting production output.
Warpage Elimination: A uniform thermal gradient minimizes internal stresses, ensuring gears are dimensionally perfect.
Surface Quality: Prevents defects like sink marks on the gear face. One documented case saw a panel component's cycle time drop from 52 to 36 seconds, increasing daily output by 28% and generating significant annualized profit.
- Precision Gating and Ejection: The gate, where material enters the cavity, is meticulously designed (often as a pinpoint or submarine gate) to leave a minimal mark that requires no post-processing. The ejection system uses finely machined pins or sleeves placed strategically to push the finished gear off without leaving marks or causing distortion.
The Art of Production: Process Optimization and Quality Assurance
With the mold validated and installed in a high-precision injection molding machine, the focus shifts to process mastery. The goal is to establish a "sweet spot"—a robust set of parameters (temperature, pressure, injection speed, cooling time) that produces consistent, perfect parts cycle after cycle.
Overcoming Injection Molding Challenges: Gear molding presents unique hurdles. Anisotropic shrinkage due to glass fiber orientation can affect tooth-to-tooth accuracy. Ansix Tech counters this through optimized gate design and process controls that manage shear rates. Weld line integrity is managed by optimizing melt temperature and injection speed to ensure strong molecular bonding at the meeting points of the plastic flow front.
A Culture of Quality: Quality control at Ansix Tech is not an inspection step; it is an embedded philosophy. Their system, potentially certified to standards like ISO 9001:2015, governs the entire production lifecycle. This includes:
Incoming Material Inspection: Verifying the properties of every batch of PPS or other engineering plastic.
In-Process Statistical Process Control (SPC): Continuously monitoring critical dimensions (e.g., tooth profile, inner diameter) in real-time to detect any process drift.
Finished Product Validation: 100% critical dimension checks or automated vision system inspections on sampled parts.
Performance Testing: Regular fatigue, torque, and NVH (Noise, Vibration, Harshness) testing to validate functional performance.
The Ansix Tech Advantage: Delivering Unmatched Reliability and Value
Ansix Tech’s industry experience translates into a powerful, tangible benefit for customers: significantly lower total component cost without sacrificing quality or performance. This cost leadership is engineered through several key strategies:
- Lifecycle Cost Reduction through Material Science: By expertly leveraging advanced materials like long-glass-fiber PPS, Ansix Tech enables the replacement of metal or over-engineered plastic components. This reduces part weight, eliminates secondary operations, and improves fuel efficiency for the end-user—value that extends far beyond the factory floor.
- Production Efficiency via Technological Innovation: The implementation of conformal cooling channels is a prime example of a capital investment that pays continuous dividends. The dramatic reduction in cycle time means more parts per day from the same machine, lowering the per-part cost burden of capital and overhead.
- Waste Elimination through Predictive Engineering: Their heavy upfront investment in CAE simulation (Moldflow, ANSYS) virtually eliminates costly mold rework and production trials. By "getting it right the first time," they avoid the staggering costs associated with delayed product launches and tool modification.
- Rapid Delivery through Integrated Process: From digital design and simulation to additive manufacturing of mold inserts and precision machining, Ansix Tech’s vertical integration and expertise compress the traditional development timeline. This rapid delivery process allows customers to bring their products to market faster, capturing revenue and market share sooner.
Conclusion: Setting the Standard for the Future of Transmission Engineering
In the high-stakes arena of automotive transmission manufacturing, Ansix Tech has established itself as more than just a supplier; it is a solutions partner. By fusing deep technical expertise in material science, mold engineering, and process control with a relentless drive for innovation—such as adopting 3D-printed conformal cooling—they master the complex art of precision gear molding.
The result is a compelling value proposition: components that meet the most rigorous standards of performance and durability, delivered through a process engineered for efficiency and cost-effectiveness. As the automotive industry continues its evolution toward electrification and greater efficiency, the demand for high-precision, lightweight polymer components will only intensify. Through its commitment to engineering excellence and customer-centric value creation, Ansix Tech is not just keeping pace but is actively shaping the future of transmission technology, one precision gear at a time.
