Ansix Tech: Mastering Preform Mold Manufacturing Through Precision Engineering and Cost Innovation
From PET Bottles to Pharmaceutical Containers, How Advanced Mold Technology Transforms Plastic Production
The global injection molding industry is undergoing a transformation as manufacturers face unprecedented pressures: demand for higher precision, faster production cycles, increasingly complex designs, and relentless cost reduction requirements. At the center of this evolution lies preform mold manufacturing — a specialized niche where precision determines profitability. As containers for beverages, pharmaceuticals, and consumer products proliferate worldwide, the molds that create their plastic preforms must balance durability, precision, and cost-efficiency. Ansix Tech has emerged as a leader in this space by developing an integrated approach that spans from initial design to final delivery, consistently reducing component costs while enhancing quality.
The Foundation: Strategic Material Selection
The journey of every preform mold begins long before steel is cut — it starts with material selection. Different preform applications demand different polymer characteristics, and Ansix Tech's approach is methodical. For high-temperature applications like automotive or certain pharmaceutical containers, materials like PEEK (polyether ether酮) and PEI (polyetherimide) offer exceptional performance. PEEK withstands continuous use up to 250°C and demonstrates extraordinary chemical resistance, while PEI maintains structural integrity in moist environments and offers superior flame retardancy .
Table: Performance Characteristics of Common Preform Materials
For most beverage applications, PET (polyethylene terephthalate) remains the dominant material due to its excellent clarity, gas barrier properties, and recyclability. However, even within PET, material selection involves careful consideration of viscosity, crystallization rate, and thermal stability. Ansix Tech employs a systematic selection framework that evaluates not just material properties but also manufacturability, lifecycle costs, and end-use performance .
Design Philosophy: Integrating Analysis with Experience
Modern preform mold design represents a convergence of art and science. Ansix Tech's process begins with comprehensive mold flow analysis (DFM) that has evolved from simple diagnostic tool to integral design verification system. "We've moved beyond merely using simulation to solve problems," explains Michael Chen, Ansix Tech's Lead Design Engineer. "Today, we embed mold flow analysis directly into our design workflow, allowing us to predict and optimize performance before any physical manufacturing begins."
This integration is enabled by advanced CAE (Computer-Aided Engineering) tools like Moldex3D, which provide capabilities extending far beyond traditional flow analysis. Modern systems can simulate complex phenomena including fiber orientation in reinforced materials, chemical foaming processes, and even in-mold decoration challenges . For preform molds, this means accurately predicting wall thickness variations, identifying potential weld lines, and optimizing cooling channel placement for uniform solidification.
Chen continues, "Our design principles emphasize uniform wall thickness, generous radii, and balanced flow paths. For materials like PEEK, we maintain at least 2mm wall thickness to minimize voids and warpage. For LCP (liquid crystal polymer), we keep walls below 1mm with flow lengths under 150mm to ensure complete filling" .
Mold Manufacturing: Precision in Practice
The transition from design to physical mold involves multiple precision manufacturing steps, each contributing to the final mold's performance and longevity. Steel selection represents a critical decision point, with options ranging from pre-hardened steels like P20 for standard applications to hardened tool steels like H13 for high-volume production. Specialty applications might require stainless steels like 420SS for corrosion resistance or beryllium copper for exceptional thermal conductivity in challenging cooling situations .
Ansix Tech's manufacturing workflow integrates traditional CNC machining with advanced techniques:
Rough machining to establish basic geometry
Heat treatment where required for enhanced durability
Precision finishing to achieve tight tolerances
Surface treatment through polishing, texturing, or coating
Assembly and fitting of all components
"One of our most significant innovations has been incorporating 3D metal printing for conformal cooling channels," notes manufacturing director Lisa Wang. "Traditional straight-line drilling limits cooling efficiency, especially around complex contours. With additive manufacturing, we can create cooling channels that precisely follow the mold surface, reducing cycle times by up to 30% while improving part consistency" .

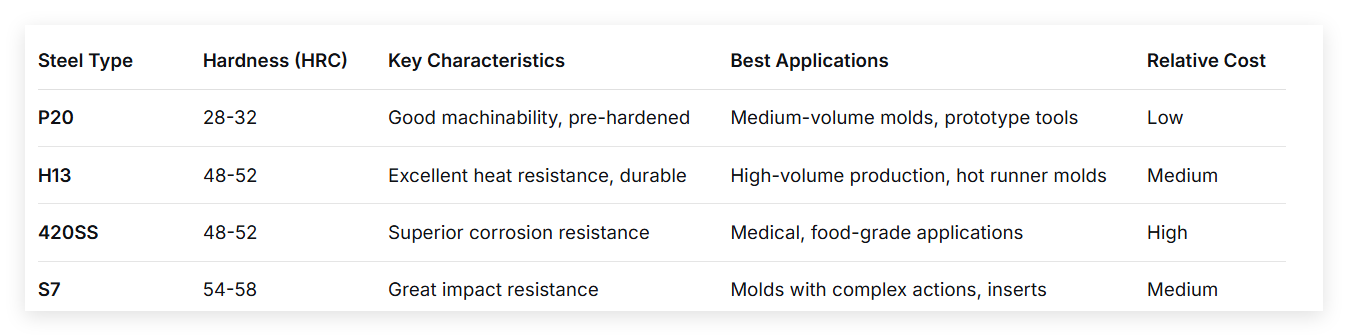

Table: Mold Steel Selection Matrix
Core Systems: The Heart of Mold Performance
A preform mold's success hinges on several integrated systems working in harmony. The cooling system deserves particular attention, as it directly affects cycle time and part quality. Ansix Tech employs various cooling strategies based on mold complexity: direct cooling for simple geometries, baffle systems for deeper cores, and thermal pins or heat pipes for challenging areas .
The gating and runner system represents another critical area, especially as hot runner technology has advanced. "For reinforced materials, proper hot runner design is essential," explains process engineer David Rodriguez. "We focus on tip selection to maintain appropriate heat near the gate, careful interface design between runner and tool, and optimal gate size and land length relationships" .
Ejection systems must balance reliability with minimal part stress. For preforms, which often have high length-to-diameter ratios, careful attention to ejection force distribution prevents deformation during demolding. Ansix Tech utilizes multiple ejection strategies including sleeve ejectors, air-assisted ejection, and stripper plates, selected based on part geometry and material characteristics.
Process Optimization: Balancing Quality with Efficiency
The actual injection molding process requires meticulous parameter optimization. Based on industry research, key parameters for thin-wall products (like many preforms) include injection speeds around 25 cm³/sec, injection pressures near 42 Bar, and melt temperatures around 270°C . However, these values represent starting points rather than fixed targets.
"Each material and mold combination requires fine-tuning," Rodriguez emphasizes. "For example, packing pressure and time significantly affect dimensional stability. We typically use packing pressures of 40 Bar for 3.0 seconds for thin-wall products, but this varies based on gate design and part geometry" .
Cycle time reduction represents one of Ansix Tech's most significant value propositions. Through a combination of advanced cooling technologies, optimized processing parameters, and intelligent mold design, the company typically achieves 15-25% faster cycles than industry averages. This efficiency directly translates to lower per-part costs for customers.
"Beyond parameter optimization, we implement advanced techniques like vacuum-assisted molding for challenging applications," Rodriguez adds. "By removing air from the mold cavity before injection, we minimize voids and surface defects, particularly for parts with complex geometries" .
Quality Assurance: Precision as Standard
Quality control at Ansix Tech operates on multiple levels, beginning with dimensional verification of mold components during manufacturing and extending to production sampling and statistical process control during molding trials. The company maintains a comprehensive metrology lab featuring coordinate measuring machines (CMM), optical comparators, and surface roughness testers.
"For preform molds, we pay particular attention to cavity-to-cavity consistency in multi-cavity molds," states quality director Sarah Johnson. "We verify that all cavities produce preforms within 0.5% weight variation and critical dimensions within ±0.02mm tolerance."
Material verification represents another crucial aspect, especially as regrind or recycled content becomes more common. Ansix Tech employs spectroscopic analysis to verify material composition and thermal analysis to confirm processing characteristics match specifications.
Packaging and Delivery: Protecting Precision
The final phase of the mold manufacturing process—packaging and delivery—receives careful attention at Ansix Tech. Precision molds represent significant investments that must arrive at their destination in perfect condition. The company employs custom foam-lined crates, humidity control packets, and comprehensive documentation with each shipment.
"Beyond physical protection, we provide detailed setup guides, maintenance manuals, and troubleshooting documentation," Johnson notes. "Our goal is to ensure our customers can achieve optimal performance from day one."
Industry Applications: From Beverages to Beyond
While beverage container preforms represent a substantial portion of the market, Ansix Tech's expertise extends to multiple sectors. In the pharmaceutical industry, molds must meet stringent cleanliness standards and often utilize materials like COC (cyclic olefin copolymer) for exceptional clarity and chemical resistance. Automotive applications might involve reinforced PET for under-hood components requiring higher temperature resistance.
"One of our most innovative projects involved converting a sheet molding compound (SMC) nose cone to injection molding," recalls Chen. "The injection molded version weighed 10% less, eliminated secondary operations, and saved the customer approximately $500,000 annually while maintaining all functional requirements" .
Ansix Tech's Value Proposition: Engineering Efficiency
What distinguishes Ansix Tech in the competitive mold manufacturing landscape is its holistic approach to value creation. Rather than focusing solely on initial tooling cost, the company emphasizes total cost of ownership for its customers.
"Our most significant savings come from extended mold life, reduced cycle times, and minimized downtime," explains CEO Robert Williams. "For example, by selecting H13 steel instead of P20 for a high-volume beverage preform mold, we might increase initial cost by 20%, but extend mold life from 2 million to 8 million cycles—a fourfold improvement that dramatically reduces per-part cost."
The company's investment in CAD/CAE/CAM integration exemplifies this philosophy. By implementing intelligent design systems that incorporate manufacturing knowledge directly into the design process, Ansix Tech achieves 50% reduction in development cycles and 20% improvement in first-time success rates .
Future Directions: Smart Molds and Sustainable Manufacturing
Looking forward, Ansix Tech is investing in several emerging technologies. Sensor-equipped "smart molds" with embedded temperature and pressure sensors enable real-time process monitoring and predictive maintenance. Advanced surface treatments like PVD coatings extend mold life while reducing maintenance requirements. Perhaps most significantly, the company is developing expertise in sustainable materials and processes, including molds optimized for bio-based plastics and post-consumer recycled content.
"As circular economy principles gain traction, we're helping customers transition to more sustainable materials without sacrificing performance," Williams notes. "This often requires mold design modifications to accommodate different flow and crystallization characteristics."
Conclusion: Precision as Pathway to Value
In the highly competitive world of plastic packaging, success increasingly depends on precision, efficiency, and innovation in mold manufacturing. Ansix Tech's comprehensive approach—spanning strategic material selection, advanced simulation, precision manufacturing, and process optimization—demonstrates how technical excellence translates directly to customer value.
By reducing component costs through extended tool life, faster cycles, and improved yields, while simultaneously enhancing quality through precision engineering and thorough validation, Ansix Tech represents the evolution of mold manufacturing from craft to science. As plastic packaging continues to evolve in response to sustainability challenges and performance demands, this integrated approach to mold design and manufacturing will become increasingly essential for brands seeking competitive advantage in a crowded marketplace.
