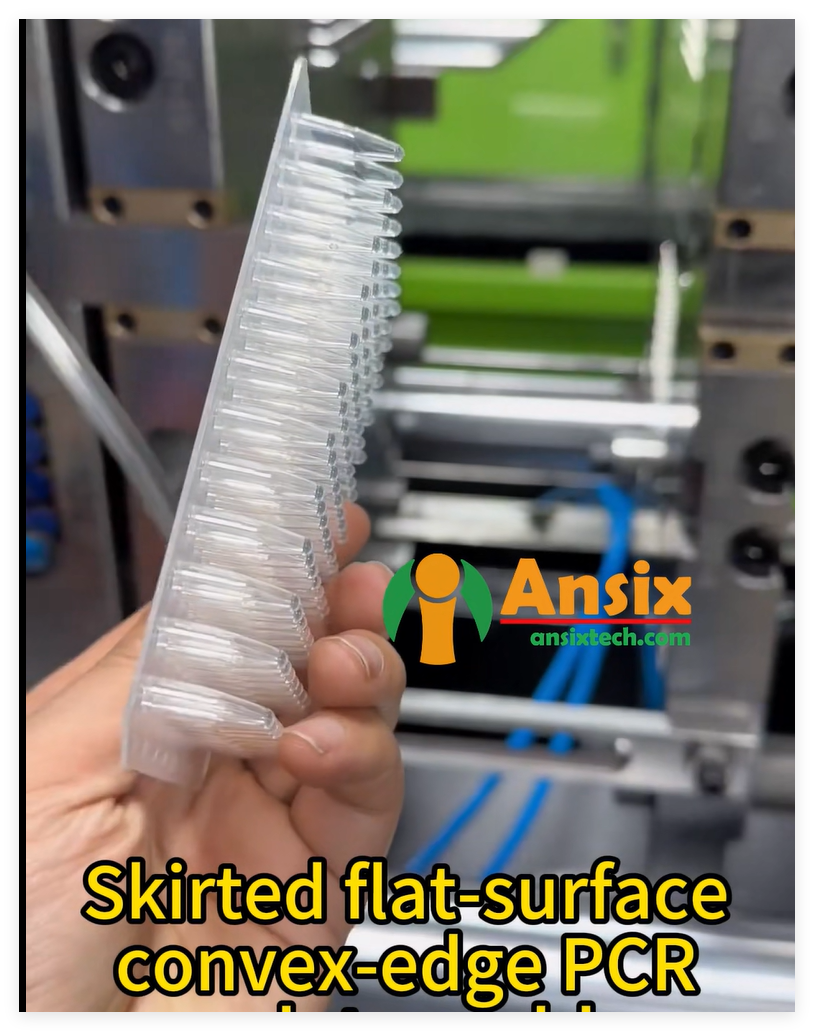

Skirted flat-surface convex-edge PCR plate mold

Skirted flat-surface convex-edge PCR plate mold



Ansix Tech Revolutionizes PCR Plate Production with Advanced Molding Expertise

In a laboratory near Boston, a technician loads a 96-well PCR plate into a thermal cycler, unaware that the precise dimensions and material properties enabling their critical DNA amplification experiment resulted from months of meticulous engineering by Ansix Tech's injection molding specialists thousands of miles away.

The global testing mold market reached approximately $208.1 million in 2022, with projections indicating steady growth to $262 million by 2029, representing a compound annual growth rate of 3.3%. Within this expanding market, Skirted flat-surface convex-edge PCR plates have emerged as essential tools for modern molecular biology laboratories, combining the mechanical stability needed for automation with the thermal performance required for precise amplification.



As demand for reliable, cost-effective laboratory consumables continues to rise, specialized manufacturers like Ansix Tech are leveraging decades of injection molding expertise to deliver superior products while significantly reducing component costs through material optimization, process refinement, and efficiency improvements.



Understanding the Modern PCR Plate: More Than Just Plastic Wells

Skirted flat-surface convex-edge PCR plates represent a sophisticated convergence of functional design requirements and manufacturing precision. The "skirt" refers to the peripheral panel surrounding the plate, which provides crucial stability during pipetting and robotic handling. This design element fundamentally transforms a simple laboratory consumable into a precision instrument compatible with automated workflows increasingly common in high-throughput research environments and diagnostic laboratories.



The flat-surface convex-edge configuration offers dual advantages: a universally compatible top surface that fits most thermal cyclers without adapters, combined with raised edges around each well that facilitate secure sealing with various films and foils. This combination addresses two critical laboratory needs—instrument compatibility and sample integrity—while supporting the trend toward standardization in laboratory automation.



Market analysis reveals that North America and Europe currently dominate the testing mold market, accounting for over 60% of global share. However, manufacturers like Ansix Tech are positioning themselves strategically within this landscape by offering specialized expertise in producing precision PCR plates that meet increasingly stringent quality standards while controlling costs—a combination that resonates with laboratories balancing research excellence against budgetary constraints.



Essential Characteristics of Skirted PCR Plates:



Automation Compatibility: Full or semi-skirted designs provide the rigidity required by robotic liquid handlers.



Thermal Performance: Precise dimensional tolerances ensure optimal contact with thermal cycler blocks for efficient heat transfer.



Sealing Effectiveness: Convex edges around each well create a secure sealing surface to prevent evaporation during thermal cycling.



Standard Compliance: Adherence to ANSI/SBS standards ensures compatibility with automated systems.



The Precision Manufacturing Journey: From Concept to Certified Production

The production of Skirted flat-surface convex-edge PCR plates follows a rigorous development protocol that transforms laboratory specifications into mass-produced precision components. This process begins with comprehensive design-for-manufacturing (DFM) analysis, where Ansix Tech's engineers evaluate every aspect of the proposed design against manufacturing constraints and opportunities for optimization.



Material science forms the foundation of successful PCR plate production. PCR plates are predominantly manufactured from medical-grade polypropylene, selected for its chemical inertness and ability to withstand rapid temperature fluctuations during thermal cycling. For applications requiring enhanced rigidity, particularly in automated systems, manufacturers may employ a hybrid approach with polycarbonate frames supporting thin-walled polypropylene wells. This material combination provides the structural integrity needed for robotic handling while maintaining the thermal and chemical properties essential for PCR applications.



Table: Key Material Properties for PCR Plate Manufacturing



Ansix Tech's manufacturing process incorporates advanced simulation technologies at the earliest design stages. Using sophisticated mold flow analysis software, engineers can predict and optimize material behavior during injection, identifying potential issues with filling patterns, cooling uniformity, and part ejection before any metal is cut. This proactive approach significantly reduces development time and cost while increasing first-time success rates.



Engineering Excellence: The Intricacies of PCR Plate Mold Design

Creating molds for Skirted flat-surface convex-edge PCR plates represents one of the more challenging applications in precision injection molding. The geometric complexity of 96 or 384 precisely arranged wells, combined with the need for extreme dimensional accuracy and surface perfection, demands specialized engineering solutions.



Steel selection forms the foundation of durable, precision molds. Ansix Tech typically employs corrosion-resistant, pre-hardened steels for the majority of mold components, with specialized high-hardness steels for critical areas subject to significant wear. This strategic material allocation balances durability requirements against manufacturing complexity and cost considerations.



The cooling system design represents perhaps the most critical element in PCR plate mold engineering. With dozens of closely spaced wells requiring uniform thermal management, engineers implement sophisticated cooling channel configurations that maintain temperature consistency across the entire mold surface. This uniform cooling is essential for preventing warpage—a particularly challenging defect in thin-walled PCR plates where even minor dimensional deviations can compromise thermal contact with cycler blocks.



Runner and gating systems require meticulous optimization to ensure balanced filling of all wells simultaneously. Unbalanced filling would result in variable packing pressures across the plate, leading to inconsistent wall thickness and potential performance variations between wells. Ansix Tech employs advanced simulation to optimize runner diameters and gate locations before manufacturing begins, reducing trial-and-error adjustments during mold validation.



The ejection system presents unique challenges in PCR plate molds due to the delicate well structures that can easily deform if subjected to uneven ejection forces. Strategic placement of ejector pins, often supplemented with sleeve ejectors for the well bottoms, ensures distortion-free part removal while maintaining the rapid cycle times essential for cost-effective production.



Advanced Manufacturing: Addressing PCR Plate Production Challenges

Injection molding Skirted flat-surface convex-edge PCR plates involves navigating several inherent manufacturing challenges. The extreme thin-wall construction of modern PCR plates (often less than 1mm) demands precise control over melt temperature, injection speed, and packing pressure to achieve complete filling without creating excessive internal stresses that could lead to warpage.



Material behavior presents another significant consideration. While polypropylene offers excellent chemical resistance and thermal stability, its flow characteristics vary considerably with temperature and shear rate. Ansix Tech addresses this variability through closed-loop process control systems that monitor and adjust injection parameters in real time, ensuring consistent filling patterns despite normal material batch variations.



Preventing contamination represents a paramount concern in PCR plate manufacturing. Even microscopic particles or chemical residues can interfere with sensitive molecular biology applications. Ansix Tech maintains ISO-certified cleanroom facilities with controlled particulate levels to prevent contamination during production and packaging. Additionally, the company implements rigorous material handling protocols to ensure that only certified virgin resins enter the manufacturing process.



The dimensional stability required for PCR plates—particularly regarding well-to-well consistency and overall plate flatness—demands exceptional process control. Warpage, even at levels imperceptible to casual inspection, can compromise thermal contact with cycler blocks, leading to temperature variations between wells and potentially inconsistent amplification results. Ansix Tech combats this through balanced cooling, optimized packing pressure profiles, and carefully controlled post-molding handling procedures.



Optimization and Quality: Delivering Value Through Process Excellence

Ansix Tech's commitment to continuous process optimization directly translates to customer value through reduced component costs. By implementing scientific molding principles and advanced process monitoring, the company achieves remarkable efficiency improvements while maintaining stringent quality standards.



Cycle time reduction represents a primary focus area for cost optimization. With approximately 80% of the injection molding cycle devoted to cooling, Ansix Tech engineers optimize cooling channel design and temperature control to minimize this phase without compromising part quality. Even marginal reductions in cycle time—often measured in seconds—translate to significant production increases over extended manufacturing runs.



Material optimization provides another avenue for cost control without sacrificing performance. Through extensive DFM analysis and material testing, Ansix Tech identifies opportunities to reduce material usage while maintaining structural integrity and functionality. This might involve strategic thinning of non-critical areas or optimizing gate designs to minimize runner volume—approaches that collectively reduce material costs while maintaining the performance characteristics laboratories require.



Quality assurance at Ansix Tech extends beyond conventional dimensional inspection. Every production lot undergoes comprehensive testing that includes visual inspection, dimensional verification, and functional testing such as evaporation rate assessment and sealing performance evaluation. For qPCR plates, additional validation ensures appropriate optical properties for fluorescence detection. This multi-layered quality approach prevents defective products from reaching customers while providing the documentation laboratories need for regulatory compliance.



Rapid delivery capabilities have become increasingly important in the dynamic life sciences market. Ansix Tech's integrated approach—combining in-house mold design, manufacturing, and validation—significantly compresses development timelines. By involving manufacturing engineers from the earliest design phases, the company identifies and resolves potential production issues before they impact schedules, ensuring predictable project timelines and accelerated market entry for customers.



Industry Experience and Customer Value: The Ansix Tech Difference

With over two decades of specialized experience in precision injection molding for life sciences applications, Ansix Tech has developed proprietary methodologies that address the unique challenges of PCR plate production. This institutional knowledge—combining materials science expertise, advanced simulation capabilities, and practical manufacturing experience—enables the company to deliver solutions that balance performance, reliability, and cost-effectiveness.



Cost reduction initiatives form a central component of Ansix Tech's value proposition. The company's integrated approach—combining material science, process engineering, and manufacturing efficiency—typically delivers 15-25% component cost savings compared to conventional manufacturing approaches. These savings result from multiple factors: optimized material usage, reduced cycle times, minimized scrap rates, and efficient high-cavitation mold designs that maximize production output.



Customization capabilities further distinguish Ansix Tech in the competitive PCR plate market. While maintaining the dimensional standards required for instrument compatibility, the company offers specialized features such as custom barcoding, alphanumeric marking (either printed or engraved), and unique color combinations for sample tracking and identification. These value-added features enhance laboratory workflow efficiency without requiring customers to manage relationships with multiple suppliers.



Technical partnership represents perhaps the most significant differentiator in Ansix Tech's approach. Rather than simply executing customer designs, the company's engineers collaborate with clients to optimize designs for manufacturability, identifying opportunities to enhance performance while reducing production complexity and cost. This consultative approach, grounded in deep technical expertise, delivers solutions that balance innovation with practicality.



Conclusion: Precision Manufacturing in Service of Scientific Discovery

The production of Skirted flat-surface convex-edge PCR plates exemplifies the sophisticated intersection of materials science, precision engineering, and manufacturing excellence required to support modern molecular biology. As laboratories worldwide increasingly depend on reliable, consistent consumables for sensitive applications ranging from basic research to clinical diagnostics, specialized manufacturers like Ansix Tech play an increasingly vital role in the scientific ecosystem.



Through strategic material selection, advanced process optimization, and relentless attention to quality, Ansix Tech delivers components that meet the exacting standards of contemporary laboratories while significantly reducing costs through manufacturing efficiency. This dual focus on performance and value creation positions the company as an essential partner for organizations seeking to advance scientific discovery while managing operational expenses—a balance increasingly critical in the competitive life sciences landscape.



Looking forward, as molecular biology techniques continue to evolve toward greater sensitivity, higher throughput, and increased automation, the demand for precisely engineered consumables will only intensify. Manufacturers with the specialized expertise to navigate the complex technical requirements while delivering economic value—like Ansix Tech—will play an increasingly essential role in enabling the next generation of scientific and medical advances.
