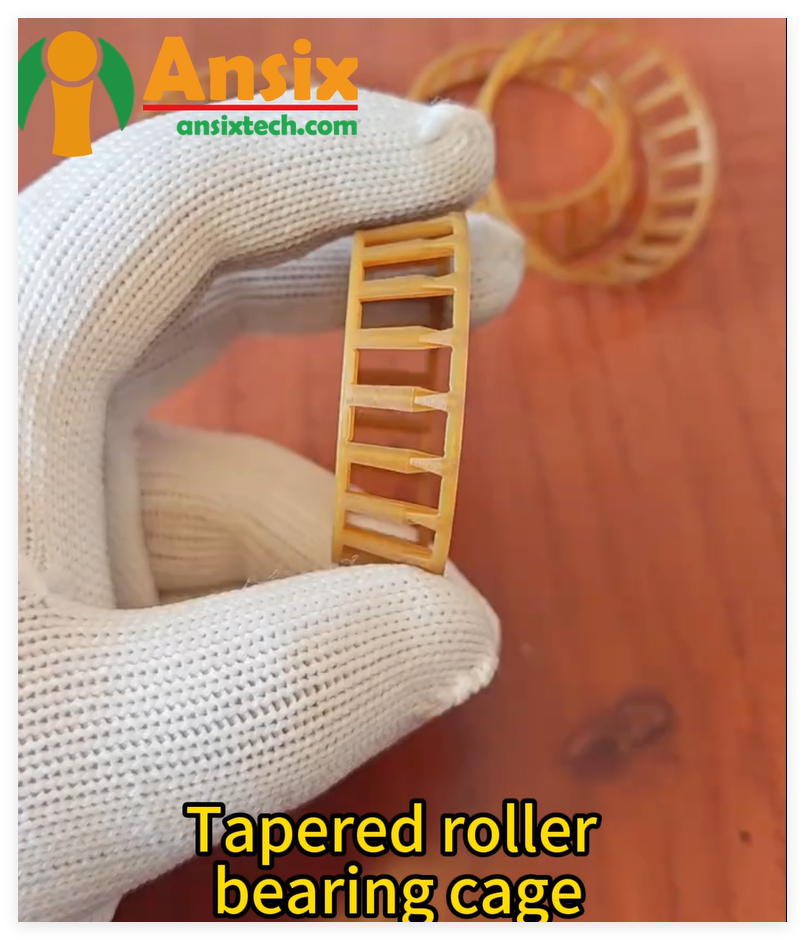

Tapered roller bearing cage

tapered roller bearing cage



Ansix Tech's Injection Molding Mastery: Engineering Reliability and Driving Down Costs for Tapered Roller Bearing Cages

The global market for injection-molded bearing cages is on a steady climb, projected to grow from $523.8 million in 2025 to $769 million by 2032, a testament to their critical role in modern machinery and the industry's push for advanced, cost-effective manufacturing.

In the high-stakes world of industrial machinery and automotive engineering, where precision and reliability are non-negotiable, the tapered roller bearing stands as a foundational component. At its heart lies a critical but often overlooked part: the cage. This cage is responsible for separating and guiding the tapered rollers, ensuring smooth operation under immense load and speed. For Ansix Tech, a leader in precision injection molding, mastering the production of these intricate components represents not just a technical challenge but a significant opportunity to deliver unparalleled value and reliability to global bearing manufacturers.



This deep dive explores the convergence of advanced engineering, material science, and innovative process optimization, showcasing how companies like Ansix Tech are transforming tapered roller bearing cage production into a benchmark of manufacturing excellence and cost efficiency.



Part 1: The Critical Design and Booming Market for Tapered Roller Cages

The tapered roller bearing is engineered to handle combined radial and thrust loads, making it indispensable in demanding applications from heavy-duty truck axles and wind turbines to precision industrial gearboxes. Its unique conical shape distributes load across the rollers, but this geometry imposes specific demands on the cage.



A Complex Geometry with a Simple Mission

A bearing cage, at its core, is an engineered frame comprising two circular rims connected by a series of precisely spaced cage bars. These bars form pockets that securely house individual rollers. The design is deceptively complex: the cage bars feature thick ends that provide guide surfaces for the rollers to roll against, connected by a slimmed mid-section. This structure often includes subtle radial projections on the inside and outside surfaces to prevent roller escape, all while maintaining minimal contact to reduce friction.



This component must be incredibly strong to withstand centrifugal forces and mechanical shock, dimensionally stable across a wide temperature range, and possess excellent wear resistance. As a 2022 innovation report on truck axle bearings highlighted, an optimized cage design using materials like PA66-GR25 can effectively prevent contact with the outer ring raceway and reduce operational noise, directly contributing to the bearing's long life and high reliability.



A Market Driven by Performance and Efficiency

The shift toward injection-molded plastic cages is a major industry trend. According to QYResearch, the global injection-molded bearing cage market is experiencing robust growth, with a projected compound annual growth rate (CAGR) of 5.6% from 2026-2032. This growth is fueled by the superior properties of engineereD Plastics over traditional metal.



Weight Reduction: Plastic cages significantly lower rotational inertia, improving energy efficiency and allowing for higher operational speeds.



Corrosion Resistance: Unlike steel, high-performance polymers are immune to rust, extending bearing life in harsh environments.



Self-Lubrication: Many engineering plastics offer inherent lubricity, reducing friction and wear.



Noise Dampening: Plastic cages operate more quietly than metal, a critical factor in automotive and appliance applications.



Cost-Effective Mass Production: Once the mold is perfected, injection molding allows for the rapid, consistent, and economical production of millions of identical, high-tolerance parts.



This market evolution is guided by strict international standards. ISO 10317 establishes a universal designation system for tapered roller bearings, ensuring clear communication and interoperability across the global supply chain. Manufacturers like Ansix Tech design and produce cages to these exacting specifications, guaranteeing that their components meet the precise dimensional and performance requirements of bearing assemblers worldwide.



Part 2: The Ansix Tech Advantage: A Blueprint for Reliability from Design to Delivery

For Ansix Tech, creating a superior tapered roller bearing cage begins long before the first pellet of plastic enters a machine. It starts with a holistic philosophy that views every stage of the product lifecycle as an opportunity to engineer reliability and eliminate cost.



Phase 1: Prototype and Verification - Simulating Success

The journey begins with a customer's design specifications. Ansix Tech's engineers employ state-of-the-art Design for Manufacturability (DFM) analysis and Mold Flow Simulation software. These tools are used to virtually test the injection of plastic into the proposed mold design. Engineers can predict and correct potential defects like weld lines (weak spots where molten plastic flows meet), air traps, or uneven cooling before a single piece of steel is cut.



This phase also involves selecting the optimal plastic material. The choice is critical and depends on the bearing's end-use. For standard applications, a glass-fiber-reinforced polyamide like PA66-GF30 offers an excellent balance of strength, heat resistance (withstanding continuous temperatures up to 120-140°C), and cost. For more demanding, high-speed, or high-temperature environments, advanced polymers come into play.



Industry leaders are pioneering the use of sophisticated composites. SKF, for instance, has patented cages made from a blend of irradiated Polytetrafluoroethylene (PTFE) and a matrix plastic such as Polyether Ether Ketone (PEEK), Polyphthalamide (PPA), or Polyamide (PA). The irradiated PTFE forms a strong bond with the matrix, creating a material with an exceptionally low coefficient of friction, high wear resistance, and improved toughness without requiring lengthy post-processing tempering. Ansix Tech leverages its deep material science expertise to guide customers toward the most cost-effective and performance-appropriate resin for their specific needs.



Table 1: Common Engineering Plastics for Bearing Cages



Phase 2: Mastering the Mold - The Heart of Precision

The mold is the cornerstone of injection molding quality. Ansix Tech’s mold design and manufacturing process is where its engineering prowess truly shines, directly impacting part quality, production efficiency, and unit cost.



Steel Selection: For long-running production of abrasive glass-filled materials, Ansix Tech uses premium hardened tool steels like H13 or S136. These steels offer excellent polishability, corrosion resistance, and can withstand millions of cycles without significant wear.



The Cooling System: Uniform cooling is paramount to prevent warpage and ensure dimensional stability. A complex network of internal water channels is designed to extract heat from the mold as efficiently as possible. An optimized cooling system directly reduces cycle time, boosting output and lowering cost.



Runner and Gating: The path the molten plastic takes to fill the cavity is meticulously engineered. Hot runner systems are often employed to eliminate material waste from solidified sprues and runners, further reducing per-part cost and cycle time. The gate location—where plastic enters the cavity—is chosen to ensure complete filling and minimize visual and structural defects.



Ejection System: After the part cools, it must be ejected without damage. The design of ejector pins and plates is calculated to apply even force to the strongest sections of the delicate cage.



Phase 3: Process Optimization and Quality Assurance

With the mold mounted in a high-precision injection molding machine, the focus shifts to process optimization. Ansix Tech's technicians fine-tune a symphony of parameters—injection speed and pressure, packing pressure, cooling time, and mold temperature. The goal is to achieve the shortest possible cycle time while producing parts that meet all specifications. This relentless pursuit of efficiency is a primary driver in reducing the customer's final component cost.



Quality is not an afterthought; it is built into the process. Statistical Process Control (SPC) is employed, with critical dimensions measured at regular intervals and tracked on control charts to ensure the process remains stable. Every batch of cages undergoes rigorous inspection, often using automated optical measurement systems, to verify conformance to the ISO 10317 designation and customer drawings.



Phase 4: The Rapid Delivery Promise

In today's fast-paced manufacturing environment, speed to market is a competitive advantage. Ansix Tech has streamlined its workflow from order to delivery.



Stage 1 (0-2 Weeks): DFM analysis, final design approval, and material procurement happen concurrently.



Stage 2 (3-6 Weeks): High-speed CNC machining, EDM (Electrical Discharge Machining), and precision polishing of the mold core and cavity.



Stage 3 (1 Week): Mold trial, process validation, and first-article inspection. Sample parts are shipped for customer approval.



Stage 4 (Ongoing): Upon approval, mass production begins with certified processes. Finished cages are packaged in clean, anti-static materials designed to prevent damage and contamination during transit, ensuring they arrive ready for assembly.



This integrated, disciplined approach compresses lead times dramatically, allowing bearing manufacturers to respond agilely to market demands.



Part 3: Delivering Tangible Value - The Ansix Tech Difference

Ansix Tech's commitment extends beyond simply making a part to print. The company's core mission is to be a value-engineering partner that actively lowers the total cost of ownership for its customers. This is achieved through three pillars of optimization:



Material Optimization: By guiding customers to the most suitable, cost-effective resin and employing runnerless systems to minimize waste, Ansix Tech reduces direct material costs without compromising performance.



Process Optimization: Through advanced mold design (like conformal cooling channels) and meticulous machine process tuning, cycle times are minimized. A reduction of even one second in cycle time can translate to thousands of dollars saved over a production run, directly lowering the per-part cost.



Efficiency & Reliability Optimization: By building ultra-durable, high-precision molds and employing rigorous SPC, Ansix Tech ensures exceptionally high yields with minimal scrap or rework. This production predictability eliminates costly downtime and delays for the customer, providing peace of mind and supply chain stability.



In an industry where failure is not an option, the reliability of every component is paramount. A bearing cage that deforms, wears prematurely, or fails can lead to catastrophic machinery breakdown. Ansix Tech’s end-to-end control over design, material science, mold making, and production instills confidence. Their cages are not just components; they are enablers of reliability for the world's rotating machinery.



Conclusion

The production of a tapered roller bearing cage is a compelling narrative of modern manufacturing—a story where advanced polymers meet digital design, where precision engineering drives economic efficiency, and where a component hidden from view becomes a linchpin of mechanical reliability.



As the global demand for high-performance, lightweight bearings continues to grow at a steady 5.6% annually, the expertise of specialized molders like Ansix Tech becomes increasingly vital. Their holistic approach, from virtual DFM analysis to the delivery of perfectly packaged parts, demonstrates how deep technical mastery in injection molding is directly linked to creating tangible, bottom-line value for the global manufacturing industry. In the precise, high-speed world of tapered roller bearings, Ansix Tech is helping its customers not just meet standards, but set new benchmarks for performance and cost.
