Precision Manufacturing Powers Energy Efficiency: Ansix Tech's Transformer Bobbin Breakthrough

The revolution in transformer efficiency starts not with exotic alloys or complex electronics, but with the precise injection molding of a 30% glass-fiber reinforced polymer bobbin. Ansix Tech has transformed this critical component's manufacturing, cutting customer part costs by over 20% through material science and process mastery.

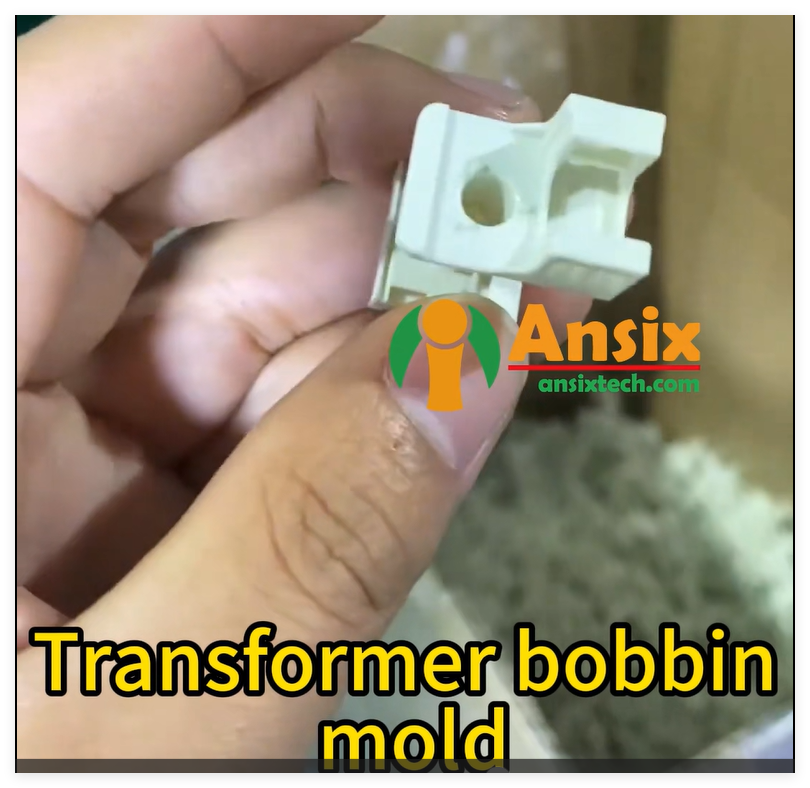

In the heart of every modern power adapter, charger, and electrical control system lies a humble yet critical component: the transformer bobbin. This plastic spool, which organizes and insulates delicate copper windings, directly influences electrical performance, manufacturing yield, and ultimately, cost. For global electronics brands, producing millions of these parts annually demands flawless precision and relentless cost control.



Enter Ansix Tech, a specialist in high-precision injection molding, whose engineering team has redefined the standards for transformer bobbin manufacturing. By tackling the intricate challenges of material selection, mold flow dynamics, and process optimization, the company has delivered molds and processes that offer customers unmatched reliability, dimensional stability, and significant unit cost savings. In an industry where margins are thin and tolerances are measured in microns, this approach represents a decisive competitive advantage.



The Critical Role of the Transformer Bobbin

The transformer bobbin is far more than a simple plastic frame. It serves as the structural backbone for copper windings, providing precise alignment, essential electrical insulation, and mechanical protection. Its dimensional accuracy is non-negotiable; even minor variations in wall thickness, flange flatness, or pin alignment can lead to inconsistent winding, assembly failures, or degraded electrical performance.



Market requirements have intensified. The global push for miniaturization demands thinner walls and more complex geometries, while the rise of automated, high-speed winding machines necessitates absolute consistency in every single part. Furthermore, bobbins must withstand solder reflow temperatures during PCB assembly and exhibit long-term stability across a wide range of environmental conditions. Meeting international standards for flame retardancy (like UL 94V-0) and temperature resistance (with materials rated for up to 155°C) is now a baseline expectation.



Foundational Precision: The Core of Injection Molding

Achieving such demanding specifications begins with the fundamental principles of precision injection molding. Experts note that the process hinges on six critical conditions: establishing appropriate mold dimensional tolerances, preventing fluctuations in shrinkage rate, preventinG Molding deformation, preventing demolding deformation, minimizing mold manufacturing errors, and preventing mold precision fluctuations. Shrinkage control is paramount, as it is influenced by a complex matrix of factors including resin pressure, resin and mold temperatures, gate design, and injection speed.



Inconsistent shrinkage leads directly to part warpage—a distortion that occurs as the molded part relieves internal residual stresses. This stress originates from two primary sources: thermal gradients within the cooling part and flow-induced orientation of polymer molecules during filling. A key principle for mitigation is thermal balance; the molded part should "feel" the same amount of heat flowing out in every direction from the mold. Consequently, parts will always warp toward the hotter half of the mold, providing a diagnostic clue for engineers.



Strategic Material Selection: The First Cost-Saving Frontier

Ansix Tech's cost-reduction strategy begins at the material level. For standard bobbin applications, the industry-standard material is 30% glass-fiber reinforced Polybutylene Terephthalate (PBT), such as the InStruc® PBTGF30 grade. This material is prized for its excellent dimensional stability, high heat resistance (with a Heat Deflection Temperature over 200°C at 264 psi), and strong dielectric properties.



A Comparison of Bobbin Material Candidates

Table: Key properties and applications of common transformer bobbin materials.

However, for specialized applications where electromagnetic coupling is integrated into the bobbin structure itself, Ansix leverages knowledge of advanced materials like conductive loaded resin-based composites. These materials integrate micron-sized conductive fibers or powders—made from stainless steel, nickel, or copper—within a base resin host. The resulting part can function as both a bobbin and an efficient electromagnetic coupler, opening doors for innovative, integrated component design.



Engineering Excellence: From DFM to Mold Qualification

Ansix Tech's process is anchored in a meticulous, simulation-driven workflow. Every project undergoes a rigorous technical assessment before production begins, evaluating part design, material suitability, and manufacturability.



Mold Flow Analysis (DFM) as a Virtual Workshop: The cornerstone of this phase is advanced Computer-Aided Engineering (CAE) simulation, or Mold Flow Analysis. Using software like Autodesk Moldflow, engineers create a digital twin of the injection process. This allows them to predict and optimize the filling pattern, identify potential air traps or weld lines, simulate cooling efficiency, and forecast part warpage before a single piece of steel is cut. This virtual prototyping can reduce physical mold rework costs by 30-50% and shorten development cycles by weeks.



Mold Design for Precision and Durability: The physical mold design embodies precision engineering. To achieve the required micro-scale tolerances and extended tool life, Ansix favors a modular, "split-cavity" construction with hardened, grindable inserts. This approach offers multiple advantages: it allows the use of specialized, high-wear steels for critical areas, facilitates precise grinding to achieve tight tolerances, simplifies maintenance, and enables superior surface finishes essential for clean part ejection.



Critical systems within the mold are engineered for balance and control:



Cooling System: A balanced cooling circuit is designed to extract heat uniformly, minimizing the thermal gradients that cause warpage.



Gating & Runner System: The gate location and runner dimensions are optimized using flow simulation to ensure balanced filling of all cavities with minimal pressure drop and shear heat.



Ejection System: Ejector pins are strategically placed on ribs, flanges, and other robust areas to apply perfectly balanced force, preventing distortion or "ejector pin push" on the delicate thin-walled bobbin barrel.



Key Standards and Verification Phases

Table: The structured process from design to mass production.



Conquering Production Challenges: Process Optimization for Cost and Quality

The transition from a proven mold to consistent, high-yield production presents its own set of challenges, which Ansix addresses through scientific molding principles and advanced process control.



Tackling Warpage and Dimensional Drift: A common frustration is a part that measures correctly upon ejection but warps or shrinks out of tolerance hours later. Ansix controls this by meticulously managing the "free energy" within the polymer. They optimize packing pressure profiles and cooling times to allow the part to relax and stabilize within the constrained mold before ejection, minimizing post-mold shrinkage.



Optimizing for Efficiency and Cost: The true value engineering shines in production optimization. Ansix employs strategies like:



Cycle Time Reduction: By optimizing cooling channel layout and using conformal cooling where possible, cycle times can be significantly reduced.



Material Savings: Precise control over the injection and packing phases eliminates over-packing and reduces part weight without compromising strength.



Scrap Reduction: Through process monitoring and automated adjustments, the production of non-conforming parts is minimized. Advanced practices, such as those demonstrated by RJG, show that systematic process control can lead to savings of thousands of dollars per project in material, labor, and machine time.



A Culture of Quality: Assurance from Steel to Shipment

Ansix Tech's commitment to reliability is institutionalized in its quality management system, aligned with ISO 9001:2015 standards. Quality is not an inspection but a built-in process.



In-Process Control: Quality personnel conduct routine checks every two hours on the production floor, using precision tools from calipers to Coordinate Measuring Machines (CMM) for complex geometries. This allows for real-time correction of process drift.



Comprehensive Documentation: For every order, a full dimensional inspection report is available, detailing critical dimensions, tolerances, and appearance. Material certifications, including RoHS compliance reports, are provided to ensure regulatory adherence.



Secure Packaging: Understanding the fragility of precision components and the unpredictability of logistics, Ansix employs a four-layer protective packaging system (packing paper, EPE foam, rigid foam, and a final carton or wooden crate) to guarantee parts arrive in perfect condition.



The Ansix Advantage: Delivering Value Beyond the Mold

Ansix Tech's deep industry experience in transformer bobbin molding translates into tangible, bottom-line benefits for its customers. The company's holistic approach—integrating material science, precision mold design, and optimized production processes—directly targets total component cost.



By selecting the optimal, cost-effective material grade and engineering the mold for maximum longevity and minimal maintenance, Ansix lowers the per-part tooling cost. By refining the injection process for speed and material efficiency, it reduces the variable manufacturing cost. And by instituting a robust quality regime that virtually eliminates scrap and rework, it protects the customer from hidden quality failure costs.



In an industry relentlessly driving toward greater efficiency and lower costs, the transformer bobbin has been transformed from a potential bottleneck into a vessel of value. Through engineering precision and process intelligence, Ansix Tech ensures that this small but vital component becomes a reliable, high-performance, and cost-optimized element in the global energy landscape. The company's work demonstrates that in the world of advanced manufacturing, the most profound innovations often lie in perfecting the fundamentals.
