Ansix Tech Revolutionizes Washing Machine Manufacturing: A Case Study in Precision Mold Engineering

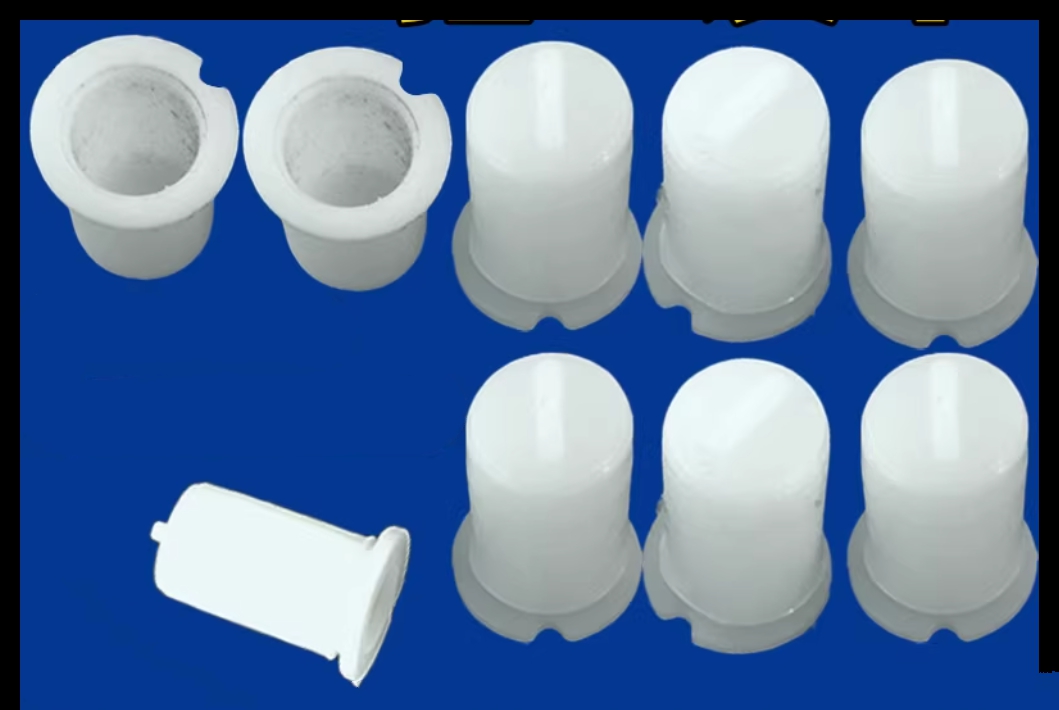

Shenzhen, China – In the competitive world of home appliance manufacturing, where efficiency and durability are paramount, the humble motor coupling shaft sleeve has emerged as an unlikely battlefield for innovation. This critical component, which transfers power from the motor to the washing machine's drum, must withstand years of vibration, moisture, and mechanical stress. Ansix Tech, a leader in precision injection molding, is redefining how these essential parts are made, slashing customer costs by up to 30% through a masterful optimization of material science, process engineering, and intelligent design.
In the heart of Ansix Tech's advanced manufacturing facility, engineers are deploying a combination of high-performance engineering plastics and insert Molding Technology to create coupling shaft sleeves that are lighter, stronger, and more reliable than traditional metal components. This shift is part of a broader industry trend where high-performance plastics are increasingly replacing metals like bronze and stainless steel due to advantages like longer part life, self-lubrication, less wear on mating surfaces, and significant weight reduction.
The company's project for a next-generation washing machine motor coupling isn't just about making a part; it's about perfecting an entire manufacturing philosophy. From initial digital simulation to final rapid delivery, Ansix Tech has engineered a process that ensures peak performance and dramatic cost savings for its global appliance manufacturing clients.
The Blueprint: Strategic Design and Digital Validation
The journey of a coupling shaft sleeve at Ansix Tech begins long before metal is cut for the mold. It starts with a meticulous design input and analysis phase. Engineers first immerse themselves in the product’s technical requirements, scrutinizing every dimension and performance specification. For a component like the coupling shaft sleeve, the primary design drivers are its function as a bearing surface and its need to handle both static structural loads and dynamic torsional forces.
Central to this stage is Design for Manufacturability (DFM) analysis, powered by advanced CAE tools like MoldFlow. Engineers create a virtual twin of the mold and simulate the injection process. They analyze how the molten plastic will fill the cavity, identifying potential weld lines, air traps, or areas of excessive shear stress that could weaken the part. For a sleeve that will encase a metal insert, ensuring perfect adhesion and uniform material flow around the insert is critical to prevent failure points. This digital prototyping is not a one-off step but an iterative process. As one study on washing machine components notes, using MoldFlow to compare different gating systems "can effectively improve the molding quality of plastic parts and improve production efficiency".
Selecting the Optimal Material: Engineering for Performance and Economy
The choice of plastic material is perhaps the single most significant factor in balancing performance with cost. The coupling shaft sleeve operates in a challenging environment, requiring high wear resistance, dimensional stability, and strength.
Ansix Tech’s engineers follow a rigorous selection guide. For this bearing and friction application, the primary consideration is the material's PV (Pressure x Velocity) limit—a measure of its ability to withstand sliding friction without excessive wear. Materials like cast nylon (PA6), polyoxymethylene (POM/acetal), and reinforced polypropylene (PP) are all strong candidates.
Polyoxymethylene (POM): Known for its high stiffness, low friction, and excellent dimensional stability. It's often used in precision gears and bearings.
Reinforced Nylon (PA66+GF): Offers superior strength, heat resistance, and creep resistance. Glass fiber reinforcement significantly improves load-bearing capacity.
Enhanced Polypropylene (PP): A highly cost-effective option with good chemical resistance and fatigue endurance, suitable for less extreme duty cycles.
"For bearings and friction applications, the first consideration should be wear performance," states a material selection guide, emphasizing the need to calculate the operational PV value and choose a material whose limits exceed it. Ansix Tech often selects a glass-fiber reinforced polyamide (PA66-GF30). This material provides an optimal balance: the nylon base offers inherent lubricity and toughness, while the glass fibers boost tensile strength and reduce thermal expansion, ensuring the sleeve maintains a tight, reliable fit on the metal shaft insert throughout its lifecycle. This careful selection directly translates to customer savings by extending part life and reducing warranty claims.
Engineering the Mold: Where Precision Takes Form
With the design and material finalized, the focus shifts to creating the tool that will give it physical form. Mold design at Ansix Tech is a systematic, multi-stage process involving conceptualization, detailed design, and rigorous review.
Key Design Aspects:
Mold Steel Selection: The mold must be as robust as the part it creates. For high-volume production of a glass-filled material, Ansix Tech moves beyond traditional P20 steel. They often select a pre-hardened alloy steel like H13 or a premium powder-metallurgy steel. These alloys offer superior hardness and exceptional resistance to abrasive wear from the glass fibers, drastically extending the mold's life and protecting the customer's capital investment.
Runner, Gate, and Ejection System: Efficiency is designed into the mold's anatomy. A cold runner system is typically employed for this part, balanced to ensure uniform filling of the cavity. The gate—the entry point of plastic into the part—is carefully sized and positioned to minimize visual defects and stress. The ejection system uses strategically placed pins and sleeves to push the finished sleeve off the core without distortion.
The Critical Cooling System: Cooling accounts for over half of a typical injection cycle time. Ansix Tech designs conformal cooling channels that follow the contour of the mold cavity as closely as possible. This uniform heat extraction minimizes part warpage and reduces cycle time, a direct driver of per-part cost savings. As noted in industry analysis, optimal heat dissipation is essential for speeding up part removal.
The Manufacturing Crucible: Overcoming Challenges
Translating a digital design into a perfect physical mold is where expertise truly shines. Manufacturing a mold for an insert-molded sleeve presents distinct challenges.
- Precision for Insert Molding: The mold must have ultra-precise features to locate and secure the metal insert before injection. Any misalignment can lead to a non-uniform plastic wall or, worse, damage to the mold during clamping. Ansix Tech uses high-precision CNC machining and EDM (Electrical Discharge Machining) to create these features, ensuring the insert is perfectly positioned every time.
- Handling Abrasive Materials: The glass fibers in the plastic are highly abrasive. To protect the mold's intricate surfaces, especially those in direct contact with the flowing melt, Ansix Tech may apply specialized wear-resistant coatings to the steel or utilize alloys specifically formulated for high glass-content materials.
- Thermal Management in Processing: The mold's thermal performance is validated during sampling. Engineers meticulously fine-tune the temperatures of different mold zones and the molten plastic to achieve the perfect crystallization of the material, which defines the part's final strength and dimensions.
The Injection Molding Process: Optimization for Value
With the mold ready, the production of the coupling shaft sleeves begins. The insert molding process is a carefully choreographed sequence:
Insert Loading: The metal shaft (the insert) is placed into the mold cavity. For high-volume orders, Ansix Tech employs automated robotic systems for consistency, speed, and to handle the high mold temperatures.
Injection: Molten PA66-GF30 is injected into the mold under high pressure, enveloping the metal insert.
Cooling & Ejection: The plastic cools and solidifies, bonding firmly to the metal. The mold then opens, and the finished, combined metal-plastic component is ejected.
De-gating & Post-Processing: The part is separated from the runner system and may undergo de-flashing or other finishing touches.
Process Optimization is continuous. Ansix Tech's engineers relentlessly pursue efficiency gains:
Cycle Time Reduction: By optimizing cooling time, injection speed, and clamp travel, they squeeze seconds out of every cycle, directly boosting output.
Material & Energy Savings: Through rigorous gating design and process control, they minimize scrap (the wasted plastic in runners). Fine-tuning heater bands and machine hydraulics reduces energy consumption per part.
Quality by Process Control: Maintaining tight control over every parameter—melt temperature, injection pressure, cooling time—ensures that every millionth part is identical to the first, guaranteeing reliability.
A Culture of Quality and Partnership
Ansix Tech’s commitment extends beyond the factory floor. Their integrated quality control system involves in-process checks, coordinate measuring machine (CMM) verification of critical dimensions, and performance testing of sample parts under simulated load conditions. This meticulous approach to quality assurance ensures that every shipment meets the exacting standards required for automated assembly lines.
Furthermore, their expertise in the unique demands of appliance components informs every decision. They understand the long-term creep and relaxation behavior of polymers under constant load—a critical factor for a part that is clamped in place for the life of the washing machine. This knowledge allows them to design the part geometry and select materials that will maintain clamping force and integrity for decades.
Finally, the company's logistics are engineered for responsiveness. Components are carefully packaged to prevent damage during transit, and their rapid delivery protocols are designed to integrate seamlessly with customers' just-in-time manufacturing schedules, reducing inventory costs and enhancing supply chain agility.
How Ansix Tech Drives Down Total Cost for Clients
The Final Analysis: Delivering Reliability and Value
The washing machine motor coupling shaft sleeve project exemplifies a modern manufacturing truth: the lowest upfront cost is rarely the lowest total cost. Ansix Tech demonstrates that through sophisticated engineering—leveraging advanced materials science, predictive digital tools, and precision manufacturing—they can deliver components of superior reliability that simultaneously reduce the client's total cost of ownership.
By investing in the right mold steel, they ensure durability. By perfecting the cooling design, they maximize throughput. By mastering insert molding, they eliminate assembly steps. This holistic approach to value engineering is why leading appliance manufacturers partner with Ansix Tech. In an industry where margins are tight and reliability is non-negotiable, their ability to engineer cost out while building quality in is not just a service—it's a critical competitive advantage. As the demand for more efficient, longer-lasting home appliances grows, the expertise housed within companies like Ansix Tech will continue to be the silent, driving force behind the machines that power our daily lives.
