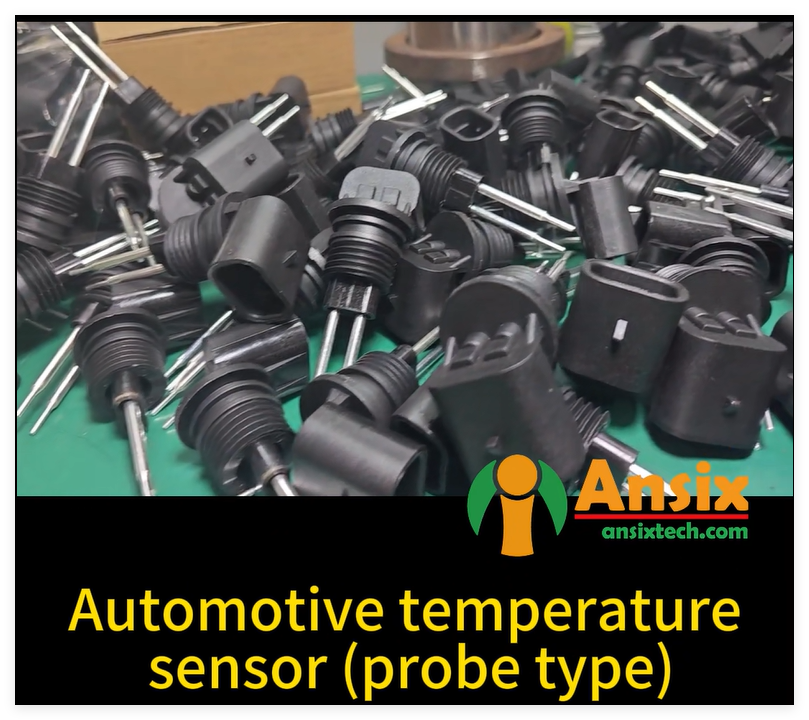

Automotive temperature sensor (probe type)

Automotive temperature sensor (probe type)



Engineering Excellence: How Ansix Tech Masters the Science of Automotive Temperature Sensor Manufacturing

Precision for the Engine's Pulse: Temperature sensors are critical components embedded in harsh automotive environments, requiring flawless manufacturing to ensure vehicle reliability and safety.

In the intricate ecosystem of a modern automobile, where thousands of components must work in perfect harmony, the probe-type temperature sensor acts as a vital nerve ending. Positioned in some of the harshest environments—from engine oil pans to transmission fluid lines—these sensors provide the critical data that engine control units rely on to optimize performance, ensure efficiency, and prevent catastrophic failure. The manufacturing of these components is a high-stakes discipline where microscopic precision meets heroic durability. At the forefront of this challenge is Ansix Tech, a specialist in high-precision injection molding, which has honed a comprehensive, science-driven approach over 28 years to not only meet these exacting standards but to systematically redefine value for its customers.



For automotive OEMs and Tier-1 suppliers, the equation is complex: achieve zero-defect reliability, withstand continuous thermal cycling and chemical exposure, and do so at a cost that supports mass production. Ansix Tech has built its reputation on solving this equation, transforming sensor mold manufacturing from an art into a predictable, optimized science. Through strategic material selection, advanced digital simulation, revolutionary Mold Design, and closed-loop process control, the company delivers more than just components—it delivers certified, cost-effective manufacturing solutions that engineer confidence into every vehicle that rolls off the line.



The Foundation: Strategic Material Science for Demanding Environments

The journey toward a reliable automotive temperature sensor begins not on the factory floor, but at the molecular level. The plastic housing must serve as a robust fortress for delicate electronic elements, enduring a cocktail of hot engine oils, temperature swings from frigid starts to over 150°C, constant vibration, and potential chemical attack. Selecting the wrong material is a failure point waiting to happen, while over-engineering with needlessly expensive polymers erodes profitability.



Ansix Tech treats material selection as a foundational engineering discipline, guiding clients toward the most cost-effective polymer that reliably meets all performance specifications. The company maintains an extensive database of engineering plastics, with expertise in high-temperature and high-performance grades essential for under-hood applications.



Table: Key Engineering Plastics for Automotive Temperature Sensor Housings

This strategic selection is the first lever Ansix Tech pulls to reduce total cost. By avoiding both under- and over-specification, they ensure customers pay only for the performance truly required, a philosophy that extends into every facet of their operation.



The Digital Crucible: Prototyping, DFM, and Mold Flow Analysis

Before a single block of premium steel is machined, the sensor's entire manufacturing lifecycle is perfected in a virtual environment. Ansix Tech's commitment to "right the first time" engineering is embodied in its exhaustive digital prototyping phase.



The process begins with a collaborative Design for Manufacturability (DFM) analysis. Engineers scrutinize the client's 3D CAD model, identifying potential production issues like problematic undercuts, wall thickness variations, or stress concentrations that could lead to failure in the field or on the production line. This upfront collaboration transforms part design into one that is inherently easier, faster, and cheaper to mold.



The cornerstone of this phase is advanced Mold Flow Analysis (MFA). Using sophisticated software, engineers simulate the injection of molten plastic into a virtual mold. This simulation predicts:



Filling Patterns: Ensuring the cavity fills completely and uniformly, preventing "short shots" where plastic solidifies before filling intricate probe geometries.



Weld Line Formation: Predicting where flow fronts meet, as weld lines can be structural weak points. Engineers optimize gate locations and runner systems to reposition these lines to non-critical areas.



Air Traps and Burn Marks: Identifying where air can be trapped and compressed, leading to burning of the material. This informs optimal venting placement.



Cooling Efficiency and Warpage: Most critically, the software simulates the cooling phase and predicts part shrinkage and warpage. For a sensor housing, even micron-level distortion can affect seal integrity or connector alignment. Studies show warpage is most influenced by melt temperature and packing pressure, allowing engineers to focus optimization efforts with precision.



This digital verification slashes physical prototyping costs and time by over 50%. It allows Ansix Tech to determine the optimal gate position—often at the part's geometric center for balanced filling—and establish a robust, stable process window long before the mold exists. For complex sensors, this may involve simulating multi-stage overmolding processes to understand the interaction between different materials and minimize residual stress on sensitive electronic elements.



Engineering the Heart: Precision Mold Design and Manufacturing

The mold is the precision instrument that translates digital perfection into physical reality. Ansix Tech's mold design is a holistic integration of several critical subsystems, each engineered for peak performance, longevity, and efficiency.



Mold Steel Selection: Based on production volume and material abrasiveness, Ansix Tech selects premium steels. For high-volume sensor production with glass-filled materials, hardened steels like H13 are chosen for exceptional wear resistance. For applications requiring flawless polish or corrosion resistance, stainless steels like S136 or 420SS are employed.



The Cooling System – The Engine of Efficiency: Up to 80% of an injection cycle is cooling time, making this system the primary driver of production cost. Ansix Tech has pioneered the use of 3D-printed conformal cooling channels. Unlike traditional straight-drilled channels, these follow the exact contours of the mold cavity at a consistent distance, enabling uniform and rapid heat extraction. This innovation alone has led to cycle time reductions of 28-36% in production applications, directly translating to higher throughput and lower cost per part.



Runner and Gate Systems: Ansix Tech typically employs hot runner systems for sensor production to eliminate cold runner waste, reduce cycle time, and allow for fully automated molding. The gate type and location, finalized during MFA, are critical to ensure balanced filling, minimal cosmetic witness marks, and optimal material properties.



Ejection System: Sensor housings often have delicate internal features. The ejection system is designed with precisely placed pins, sleeves, or blades to apply gradual, distributed force, releasing the part without marks or distortion.



The physical creation of the mold is a symphony of high-precision processes: CNC machining, Electrical Discharge Machining (EDM) for intricate details, and grinding and polishing to micron-level tolerances and mirror finishes. The challenge of machining the deep, narrow features that form a sensor probe requires exceptional skill, with tolerances often held within ±0.005mm to ensure perfect sealing surfaces and connector alignment.



Process Mastery: Optimization, Quality, and Rapid Delivery

With the completed mold mounted in a high-tonnage injection press, Ansix Tech's focus shifts to process mastery and scientific molding principles. The goal is to establish a stable, repeatable process window that maximizes quality and efficiency.



Parameter Optimization & Cycle Time Reduction: Using data from initial MFA and Design of Experiments (DOE), technicians fine-tune the six key parameters: melt temperature, mold temperature, injection speed, switchover point, packing pressure, and time. For instance, an optimized parameter set for a PA66 sensor housing was documented to reduce maximum warpage by 36.7%. Every second saved in the cycle lowers the cost per part, achieved through optimized conformal cooling, minimized packing time, and synchronized robotic part removal.



The Gold Standard in Quality Assurance: Cavity Pressure Control Ansix Tech moves beyond traditional statistical sampling to implement 100% real-time quality monitoring. A piezoelectric sensor embedded in the mold cavity measures the pressure curve of the plastic during each shot. The curve from a "golden shot" becomes a quality fingerprint. Every subsequent shot is compared to it; any deviation triggers an automatic part rejection and operator alert. This system virtually eliminates the risk of shipping defective sensors, preventing the immense hidden costs of field failures, sorting, and recalls.



Packaging and Rapid Delivery: Understanding that sensor molds and components are critical-path items, Ansix Tech has streamlined logistics. Molds are securely crated in custom packaging, and finished sensors are cleaned, inspected, and packed according to client specifications—from bulk bins to customized kits. All documentation is digitized for seamless integration into the client's production system, ensuring the solution is production-ready upon arrival.



The Ansix Tech Advantage: A Partnership Engineered for Value

The culmination of this rigorous, end-to-end process is a compelling value proposition for automotive manufacturers. Ansix Tech's approach systematically attacks cost drivers while fortifying quality:



Cost Reduction Through Intelligent Engineering: Savings are engineered in, not cut out. This is achieved via material optimization, process efficiency gains from conformal cooling (28%+ cycle time reduction), and maximized first-pass yield rates that drastically reduce scrap and rework.



Reliability Built on Experience and Integration: With over 28 years of experience, Ansix Tech acts as an extension of its clients' engineering teams. Their unique integration of material science, mold design, and processing under one roof eliminates the friction common in multi-supplier chains, ensuring perfect harmony between every element of production.



Empowering Innovation: By mastering the complexities of molding high-performance materials like PPS and PEI, and by tackling challenges such as overmolding delicate sensor elements, Ansix Tech enables its customers to design the next generation of automotive systems with confidence.



In an industry where marginal gains define competitiveness, Ansix Tech provides a decisive edge. They prove that in the high-precision world of automotive temperature sensors, uncompromising reliability and significant cost reduction are not opposing goals—they are the simultaneous outcomes of a superior, science-driven manufacturing philosophy.
