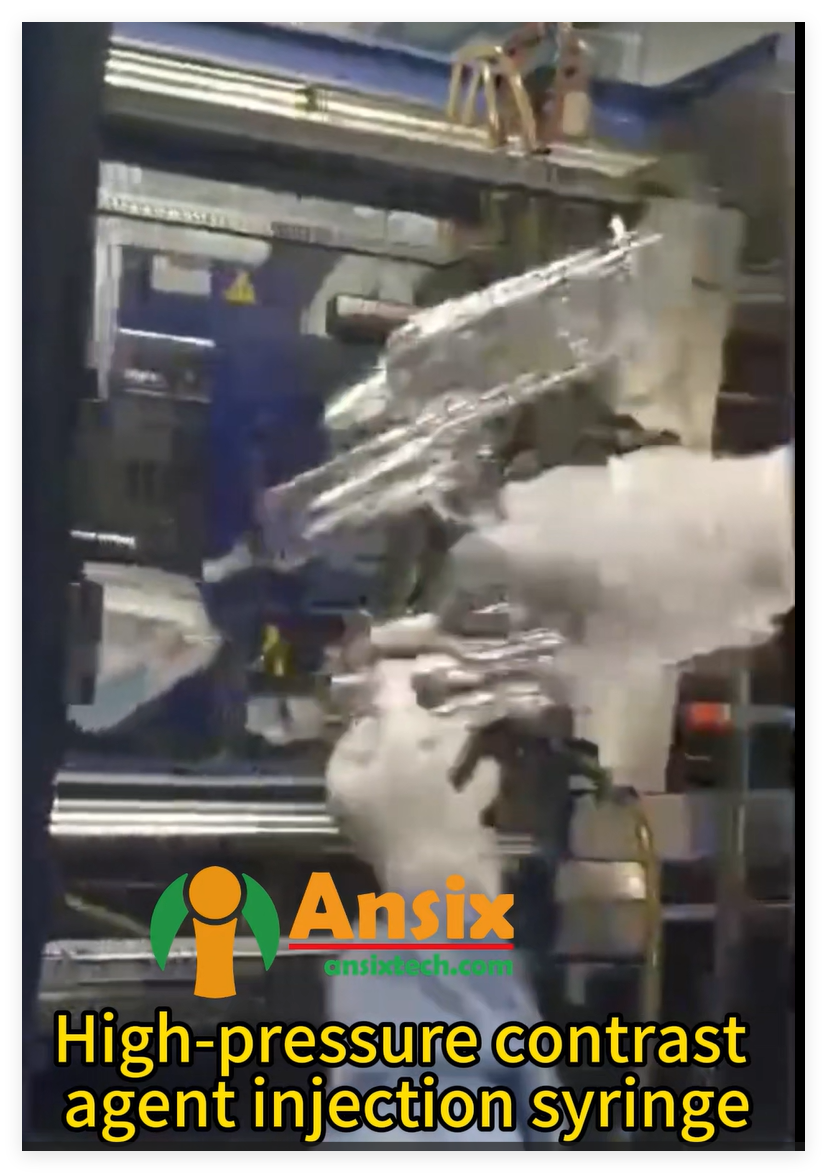

High-pressure contrast agent injection syringe

High-pressure contrast agent injection syringe



Revolutionizing Medical Imaging: Ansix Tech’s Precision Approach to High-Pressure Contrast Syringe Manufacturing

A single high-pressure contrast agent injection syringe, a critical component in modern diagnostic imaging, represents a culmination of advanced material science, precision engineering, and stringent regulatory compliance, all aimed at delivering life-saving clarity in medical diagnostics.

The global market for high-pressure contrast agent injection syringes is experiencing significant growth, driven by an increasing demand for advanced diagnostic imaging procedures such as CT scans and MRI. This specialized sector, projected to grow from a market size of approximately 137.3 billion yuan in 2025 to near 215.2 billion yuan by 2032, represents a critical juncture in medical device manufacturing . These syringes are classified under specific product standards, such as the ECLASS designation "34-26-08-04," defined as a "special pressure-stable syringe used in radiology to inject contrast medium into the body under high pressure" .



Manufacturing these devices presents unique challenges, requiring components that can withstand extremely high Injection Pressures while maintaining absolute sterility and biocompatibility. Ansix Tech has positioned itself at the forefront of this demanding field, leveraging deep industry experience in injection molding to deliver reliable, high-value solutions that significantly reduce costs for medical device companies through optimized materials, processes, and manufacturing efficiency.



1 Market Demand and Product Standards

The rising global prevalence of cardiovascular diseases, cancer, and neurological disorders has directly fueled the demand for precise diagnostic imaging, making high-pressure contrast agent injectors indispensable in modern hospitals and clinics. These devices enable the rapid and uniform distribution of contrast agents, providing the image clarity necessary for accurate diagnosis and treatment planning in cardiology, neurology, and oncology . The market is served by leading global manufacturers, including Bracco, Bayer, Medtron, and Ulrich, who compete on innovation, reliability, and compliance with increasingly stringent global standards .



Adherence to rigorous product standards is non-negotiable. In China, for instance, high-pressure contrast injection syringes and their attachments are regulated as Class III medical devices, the highest risk category. This classification subjects them to comprehensive review under guidelines such as the "一次性使用高压造影注射器及附件产品注册审查指导原则" (Guidelines for Registration and Review of Single-Use High-Pressure Contrast Agent Injectors and Attachments) . These guidelines mandate exhaustive documentation covering everything from risk management (per YY/T 0316) and raw material control to performance studies and sterilization validation.



Internationally, standards like ISO 10993 for biological evaluation and various pharmacopoeial standards (e.g., USP Class VI) govern material biocompatibility. Products must demonstrate safety concerning cytotoxicity, sensitization, and irritation, ensuring they are safe for patient contact . Manufacturers must also conduct detailed compatibility studies with specific contrast agents and validate that their products function flawlessly with various brands of high-pressure injection equipment . This complex regulatory landscape forms the essential framework within which Ansix Tech operates, ensuring every component manufactured meets global market entry requirements.



2 Material Science: Selecting the Right Plastic

The selection of plastic materials is a cornerstone of both performance and cost-effectiveness in syringe manufacturing. The chosen polymer must satisfy a triad of critical requirements: exceptional mechanical strength to withstand high internal pressures, proven biocompatibility for patient safety, and suitability for high-precision, high-volume injection molding.



Through extensive research and testing, Ansix Tech has identified several medical-grade thermoplastics as optimal candidates for different components of the high-pressure syringe system.



Table: Key Medical-Grade Plastics for High-Pressure Syringe Components

For Ansix Tech’s clients, the choice often centers on medical-grade polypropylene for the primary syringe body. Its balance of chemical resistance (against various contrast agents), ability to withstand repeated sterilization cycles, favorable processing characteristics, and relatively low cost makes it an industry standard. Ansix Tech’s expertise lies in sourcing resins with consistent purity and lot-to-lot uniformity from certified suppliers and tailoring the molding process to the specific flow and crystallization behavior of the selected grade, thereby ensuring component integrity and minimizing per-unit cost.



3 Engineering the Mold: From DFM to Precision Manufacturing

The journey from a component design to a mass-produced part begins with Design for Manufacturability (DFM) analysis, a phase where potential production issues are solved on the computer screen long before steel is cut. Ansix Tech employs advanced Moldflow simulation software to create a virtual prototype of the molding process. This analysis predicts how the molten plastic will fill the mold cavity, identifying potential defects such as air traps, weld lines, or sink marks that could compromise the syringe's strength or clarity . More importantly, it allows engineers to optimize the cooling channel layout to ensure uniform part cooling, which is critical for minimizing warpage and achieving consistent dimensional stability—a must for syringes that must fit precisely into injection guns .



The mold design itself is a masterpiece of precision engineering, with several key systems demanding meticulous attention:



Cooling System: An efficient, balanced cooling system is paramount for cycle time reduction and part quality. Ansix Tech designs conformal cooling channels that follow the contour of the part as closely as possible, ensuring rapid and even heat extraction, which directly translates to faster production cycles and lower energy costs per part .



Runner and Gate System: For multi-cavity molds producing several syringe barrels or plungers simultaneously, a hot runner system is often employed. This system keeps the plastic molten in the channels, eliminating solid sprue waste, reducing cycle time, and allowing for more precise control over filling each cavity. The gate—the point where plastic enters the part—is strategically sized and located to ensure clean filling and easy de-gating without leaving visually or functionally objectionable marks on the final product.



Ejection System: Given the deep, thin-walled nature of a syringe barrel, a perfectly balanced ejection system is crucial. Multiple ejector pins must act in unison to push the delicate part out of the core without causing distortion or stress marks. The design must account for the high draft angles needed for release and the surface finish required on the inner barrel for smooth plunger movement.



The choice of mold steel is another critical decision. For high-volume medical production, Ansix Tech selects premium stainless steels (such as SUS420 or a hardened tool steel). These materials offer the necessary hardness to resist wear over millions of cycles, excellent polishability to achieve the high-gloss finish required inside the syringe barrel, and superior corrosion resistance to withstand the humid environment of cooling channels and potential cleaning with corrosive agents.



4 Mastering the Molding Process and Quality Assurance

Injection molding a high-pressure syringe component is a delicate balancing act. The primary challenge lies in molding a part that is both thin-walled (to minimize material use and weight) and structurally sound enough to contain high pressure without failure. Any inconsistency—in material viscosity, melt temperature, injection speed, or packing pressure—can lead to variations in wall thickness, which become critical failure points under pressure.



Ansix Tech overcomes these challenges through a data-driven, optimized process:



Process Optimization: By leveraging insights from Moldflow simulations, engineers establish a robust process window. Parameters like injection speed are carefully controlled to fill the cavity quickly without causing shear-related material degradation. Holding pressure and time are precisely calibrated to pack additional material into the cavity as the plastic cools and shrinks, preventing sinks and ensuring dimensional accuracy.



Efficiency through Early Ejection: Research validated by Ansix Tech’s practice shows that ejecting plastic parts at a higher-than-normal temperature and allowing them to cool in a controlled ambient environment can significantly shorten the molding cycle time . This technique, known as early ejection, reduces the time the part spends in the mold, increasing overall equipment productivity. Ansix Tech uses integrated Moldflow-Ansys simulations to predict and compensate for any additional warpage that may occur during this air-cooling phase, ensuring final part quality is not sacrificed for speed .



Statistical Process Control (SPC): During mass production, every critical parameter—from barrel inner diameter and wall thickness to plunger tip dimensions—is continuously monitored using SPC. Automated vision systems and laser measurement tools collect data in real-time, ensuring any drift from the specification is detected and corrected immediately, guaranteeing lot-to-lot consistency.



Quality assurance extends far beyond the molding machine. Every batch of components undergoes rigorous inspection per the regulatory guidelines, which may include testing for particulate matter, tensile strength, and leakage under pressure . For components in sterile fluid paths, validation of cleaning and sterilization processes (like EtO or gamma radiation) is essential . Ansix Tech supports its clients by providing comprehensive Device History Records (DHRs) and certificates of conformity, which are vital for the client’s regulatory submissions and audits.



5 Ansix Tech’s Value Proposition: Reliability and Cost Innovation

Ansix Tech distinguishes itself in the competitive medical molding landscape through a dual commitment to unwavering reliability and continuous cost innovation. The company’s experience with high-pressure syringe projects means it understands the failure modes and critical control points unique to these devices. This knowledge is baked into every project phase, from initial DFM to final packaging, ensuring that risks are designed out and reliability is built in.



The cornerstone of Ansix Tech's customer value is a systematic value engineering process that targets cost reduction without compromising quality.



Table: Ansix Tech's Value Engineering Process for Cost Optimization

This holistic approach to cost control is encapsulated in Ansix Tech’s rapid delivery workflow. From the receipt of 3D models, the company leverages its standardized DFM protocols and library of proven mold designs to accelerate the prototyping phase. Once the design is frozen, parallel processing of mold manufacturing, material procurement, and quality documentation preparation slashes lead times. By the time mass production certification begins, all systems are primed for a seamless transition, enabling clients to get their life-saving products to market faster.



Ultimately, Ansix Tech’s mission transcends simple part manufacturing. The company functions as a strategic engineering partner, empowering medical device innovators to navigate the complexities of high-pressure injection molding. By assuming the burden of technical execution, regulatory diligence, and cost efficiency, Ansix Tech allows its clients to focus on their core competencies: developing next-generation medical imaging technologies that improve patient care worldwide. In an industry where precision, reliability, and cost-effectiveness are paramount, this partnership model is not just an advantage—it is a necessity for success.
