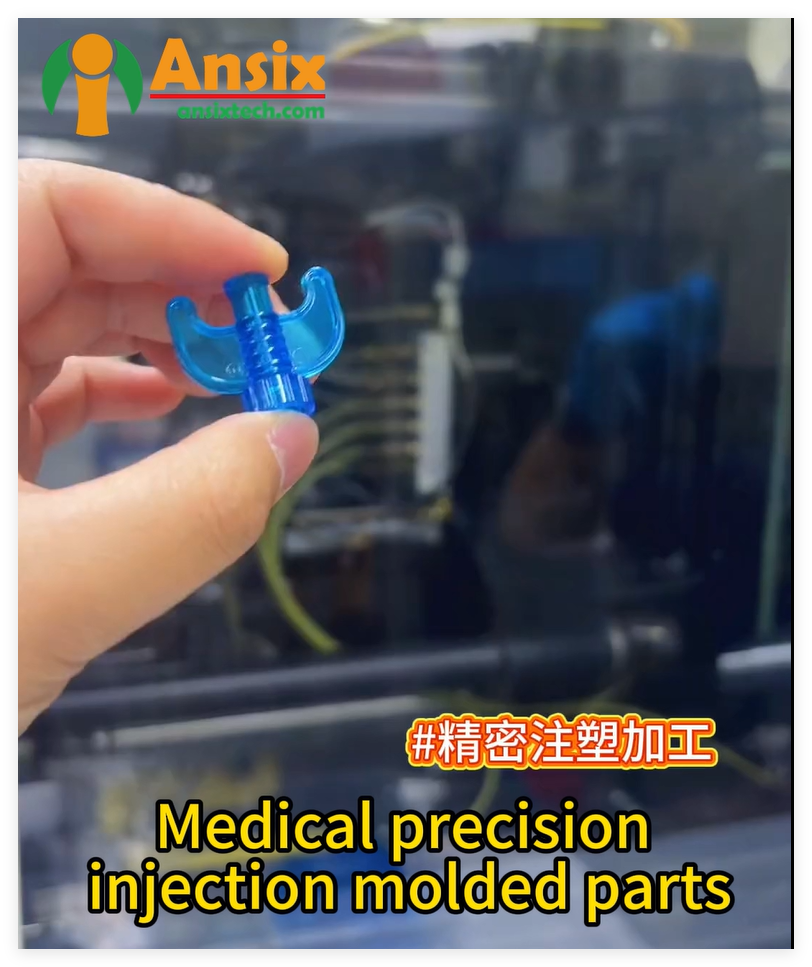

Medical precision injection molded parts

Medical precision injection Molded Parts



Precision at Scale: How Ansix Tech Is Reshaping Medical Device Manufacturing

In the high-stakes world of medical device manufacturing, precision is non-negotiable. From anesthetic needles and catheter tubing to complex diagnostic instrument housings, each component must meet exacting standards for dimensional stability, biocompatibility, and reliability. The global medical injection molding market, valued at over $27 billion in 2025 and projected to grow steadily, is fueled by rising demand for disposable devices, minimally invasive surgery tools, and advanced diagnostic equipment. At the forefront of this specialized sector is Ansix Tech, a precision engineering firm whose integrated approach—from digital design to rapid delivery—is setting new benchmarks for quality, efficiency, and cost-effectiveness.



The Ansix Tech Advantage: A Holistic Approach to Precision

Ansix Tech has built its reputation on mastering the entire lifecycle of precision injection molding, particularly for medical applications. The company’s recently unveiled ANSIX Mold Workshop project exemplifies this philosophy. It is not merely a production line but a holistic re-engineering of the manufacturing process, designed to drive down costs without compromising quality. For medical device giants, this translates into a reliable partner capable of delivering micron-perfect components that meet stringent international standards, including ISO 13485, FDA 510(k), and GMP requirements within an ISO 8 cleanroom environment.



Phase 1: Laying the Digital Foundation – From Concept to Verified Prototype

The journey of a medical component at Ansix Tech begins in silicon, not steel. Every project is anchored in a rigorous Design for Manufacturability (DFM) analysis. Using advanced simulation software like Autodesk Moldflow, engineers create a digital twin of the mold and the plastic flow within it. This Mold Flow Analysis (MFA) predicts filling patterns, pressure requirements, cooling times, and potential defects such as weld lines, air traps, and sink marks. For a delicate anesthetic needle hub or a thin-walled tube, achieving a balanced fill is critical to prevent stresses that could compromise structural integrity.



Once the digital model is perfected, functional prototypes are produced via rapid prototyping or soft aluminum prototype molds. This "test before you invest" step provides final verification of fit, form, and function, de-risking the project before committing to high-cost production tooling.



Phase 2: Strategic Material Selection – Synergy Between Polymer and Performance

The performance of a medical part is a direct function of its material. Ansix Tech guides clients through a rigorous selection process, balancing mechanical requirements, chemical compatibility, sterilization needs, and cost. The company maintains an extensive material database, selecting from thousands of polymer grades based on simulation results.



Common medical-grade selections include:



Polypropylene (PP) and Polyethylene (PE): Chosen for components like protective caps and sheaths due to excellent chemical resistance, flexibility, and low cost.



Acrylonitrile Butadiene Styrene (ABS): Used for needle hubs and structural parts for its good rigidity, impact strength, and surface finish.



Polycarbonate (PC) and PC/ABS Blends: Selected for applications requiring high strength, thermal resistance, and clarity.



High-Performance Engineering Plastics: For rigid, dimensionally stable tubing in diagnostic instruments, materials like Polysulfone (PSU) are often selected. For flexible, kink-resistant medical tubing, Thermoplastic Polyurethanes (TPUs) and silicone-based Thermoplastic Elastomers (TPEs) are preferred for their biocompatibility and elasticity.



Ansix’s expertise extends to material optimization for cost reduction. This may involve recommending a high-flow grade that allows for lower injection pressure and faster cycles, or a tailored compound that achieves required performance at a lower raw material cost.



Phase 3: Engineering the Master Tool – Precision Mold Design

The mold is the heart of the process, a precision instrument whose design dictates part quality, cycle time, and tool longevity. Ansix Tech’s design focuses on several critical systems:



Gating System: Optimized gate type (pin, edge, submarine) and size ensure smooth filling while minimizing visible marks. For aesthetic needle components, sub-marine or pinpoint gates are often used.



Cooling System: Up to 80% of a molding cycle is dedicated to cooling. Ansix designs conformal cooling channels that follow the part contour as closely as possible. Validated through thermal simulation, this approach extracts heat uniformly, reducing cooling time by up to 30% and minimizing warpage.



Ejection System: Designed with precisely placed ejector pins, sleeves, or air valves to gently release delicate parts without deformation.



Venting: Meticulously incorporated micro-vents allow trapped air to escape, preventing burns, short shots, or poor surface finish.



Phase 4: The Crucible of Creation – Precision Mold Manufacturing

Translating a perfect digital design into a hardened steel reality is where experience matters. The processing workflow is a symphony of high-precision machining: CNC milling, Electrical Discharge Machining (EDM) for intricate details, and grinding/polishing to micron-level tolerances and mirror finishes (often below Ra 0.4 μm).



Mold steel selection is a foundational decision impacting mold life and part quality. Ansix follows a rigorous logic:



P20 Steel: A pre-hardened, all-purpose steel for medium-volume production and prototype molds.



H13 Tool Steel: The industry standard for high-volume production, known for excellent toughness and thermal fatigue resistance.



Stainless Steels (e.g., 420SS): Essential for molding medical-grade or optically clear parts where corrosion resistance and perfect polish are mandatory.

For high-volume anesthetic needle molds, pre-hardened steels (PMS) or corrosion-resistant steels (PCR) are often specified to resist wear and corrosive gases.



Challenges in this phase are formidable, including machining deep, narrow cores for needle hubs and maintaining perfect alignment in multi-cavity molds.



Phase 5: Mastering the Process – Injection Molding Optimization

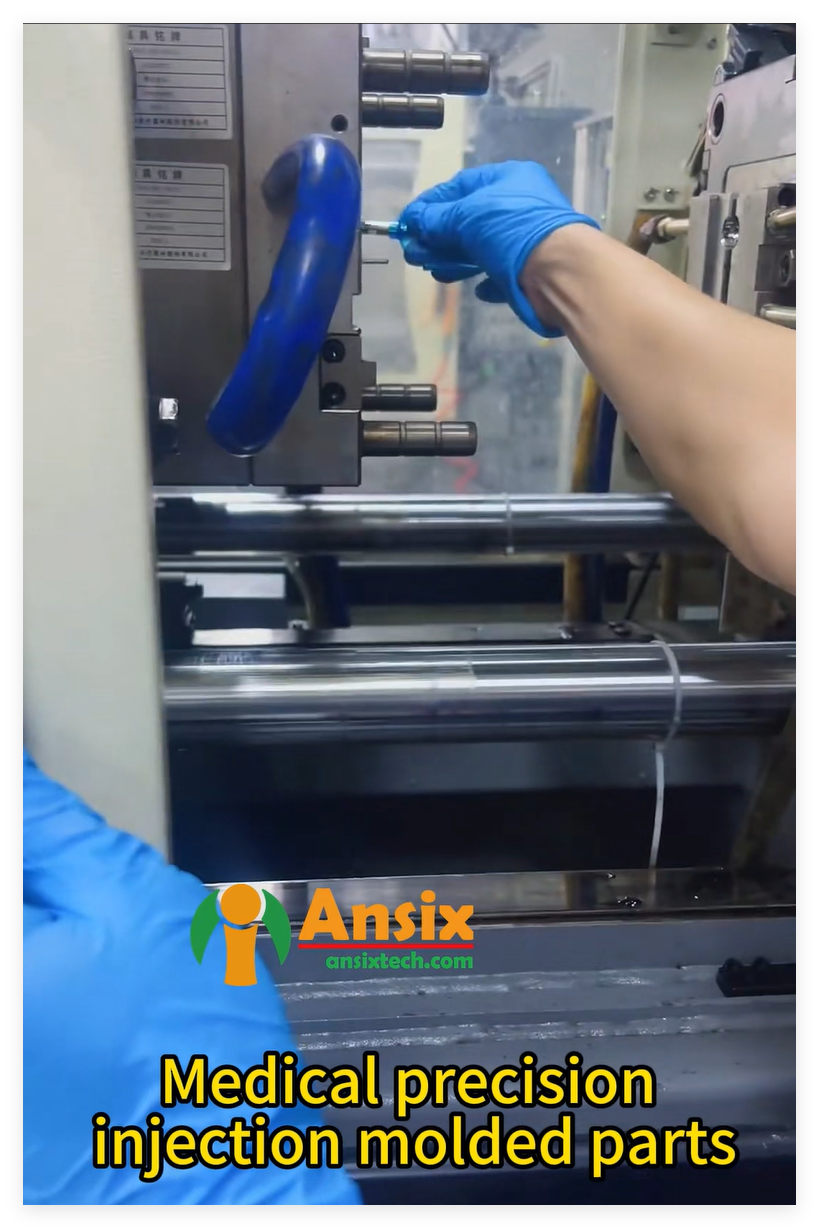

With the mold mounted in a high-precision electric injection press (ideal for cleanroom environments), the focus shifts to process mastery. Ansix Tech employs Scientific Molding principles, establishing a robust process window by documenting the relationship between melt temperature, injection speed, packing pressure, and cooling time.



Efficiency improvements are systematically pursued:



Reduced Cooling Time: Via optimized conformal cooling channels.



Faster Injection Speeds: Balanced with material properties to avoid defects.



Automated Robotics: For consistent part removal, minimizing cycle time variance.



Quick Mold Change (QMC) & SMED: Methodologies that can slash setup time by over 50%, significantly boosting equipment uptime.



Cost control and defect elimination are continuous. The process is monitored against a vast catalog of potential issues—sink marks, warpage, short shots, burn marks—each addressed through precise parameter adjustments.



Phase 6: A Culture of Certainty – Quality Assurance and Rapid Delivery

Quality at Ansix Tech is an integrated principle, not a final inspection step. Their system, aligned with ISO 9001:2015, embeds checks throughout the value stream. This includes incoming material inspection, in-process validation at every machining milestone, and comprehensive first-article inspection of molded samples using coordinate measuring machines (CMM), optical comparators, and functional test rigs.



This rigorous approach provides clients with ongoing reliability test (ORT) data and the assurance that every component meets print. Furthermore, Ansix’s integrated control over the entire process—from design to manufacturing to packaging—enables a rapid delivery process, crucial for time-sensitive medical device launches.



Application Areas and Customer Value

Ansix Tech’s precision molding expertise serves a wide spectrum of medical applications: anesthetic needles, syringe components, catheter tubing, fluidic connectors, diagnostic instrument housings, implantable device parts, and ophthalmic devices. The company’s deep industry experience allows it to deliver uncompromising precision while actively engineering cost savings for clients. This is achieved through strategic material selection, process optimization, and efficiency innovations that lower the total cost of ownership without sacrificing the critical properties required for patient safety and regulatory compliance.



Conclusion: Setting a New Standard

In an industry where margins are tight and tolerances are microscopic, Ansix Tech’s ANSIX Mold Workshop project represents a seismic shift. By relentlessly optimizing every link in the chain—digital design, material science, mold engineering, process control, and quality assurance—the company delivers more than just parts. It delivers reliability, value, and a competitive edge to medical device manufacturers worldwide. As demand for precision medical components continues to grow, Ansix Tech’s holistic, cost-conscious approach positions it as a pivotal partner in shaping the future of healthcare manufacturing.
