Engineering Reliability: How Ansix Tech Drives Down Costs in Safety-Critical Airbag Clock Spring Manufacturing

Precision at the Wheel: A Masterclass in Automotive Safety Component Production

As vehicles evolve into sophisticated electronic platforms, the demand for flawless, affordable safety components has never been higher. At the heart of the steering wheel, the humble clock spring is a lifeline, ensuring critical electrical connections to the driver's airbag remain intact through thousands of rotations. For global manufacturer Ansix Tech, producing these components is not just about precision—it's a systematic exercise in engineering value, where material intelligence, process mastery, and digital foresight converge to significantly lower customer costs without compromising the uncompromisable: safety.

The Critical Component: Design and standards of the Airbag Clock Spring

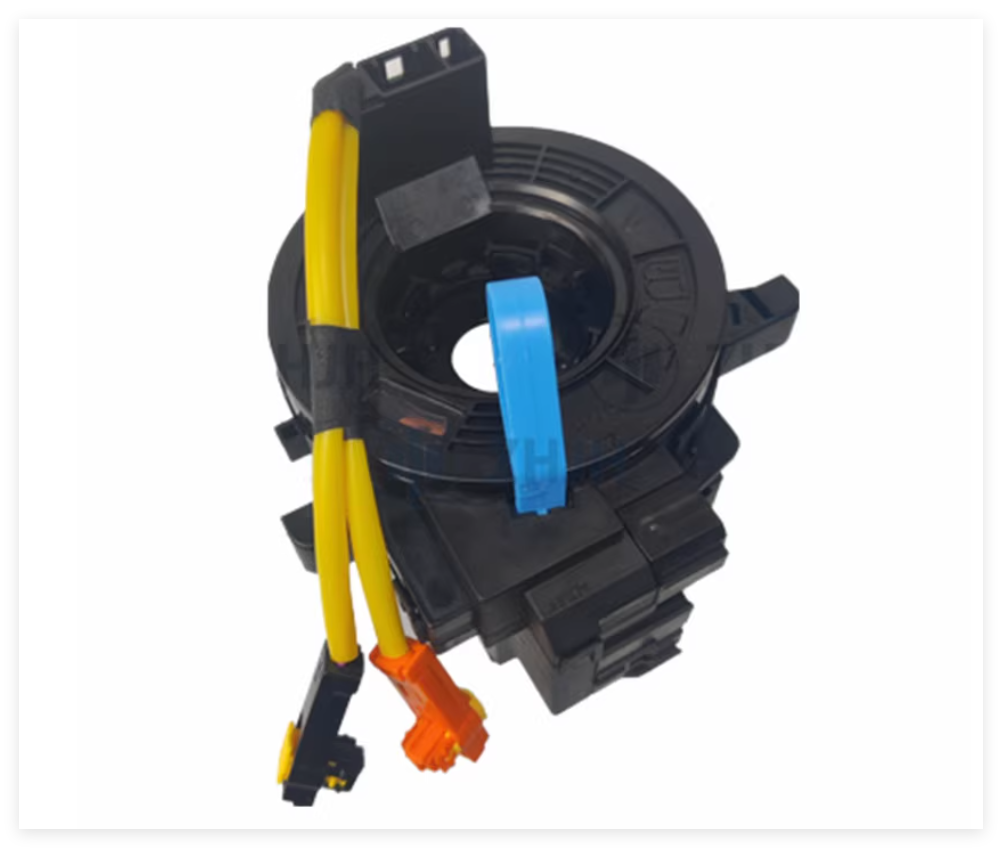

A clock spring is a spiral-wound, ribbon-like component housed within the steering column. Its primary function is deceptively simple yet vitally important: to maintain continuous electrical connectivity between the stationary vehicle body and the rotating steering wheel. This allows the driver's airbag, horn, audio controls, and heating elements to function flawlessly no matter the steering position. During a collision, this connection is the critical pathway for the signal that triggers airbag deployment, making the clock spring a silent but essential guardian of passenger safety.

The design and market requirements for this component are exceptionally stringent. It must accommodate the steering wheel's full rotational range—typically between 2.5 to 5 full turns—without ever becoming over-rotated, tangled, or damaged. It operates within a vehicle's standard electrical range (5-12 volts) but must do so with absolute reliability for the life of the vehicle, often a decade or more. Furthermore, it must withstand extreme environmental factors, from temperature swings in the cabin to potential moisture ingress, without corrosion or degradation of its electrical contacts.

Consequently, clock springs are governed by a rigorous framework of automotive safety and performance standards, including ISO and SAE specifications. Manufacturers like Ansix Tech subject prototypes to accelerated life testing, environmental stress screening, and exhaustive performance evaluations to ensure every unit meets these high-stakes reliability demands before certification for mass production.

The Ansix Tech Advantage: A Phased Gateway to Perfection and Value

Ansix Tech approaches every clock spring project with a phase-gated methodology, viewing each stage not as a step but as an opportunity to engineer out cost and engineer in reliability.

Phase 1: Digital Foundation and Prototype Design

The journey begins in the digital realm, long before steel is cut. Ansix Tech's engineers initiate a collaborative Design for Manufacturability (DFM) analysis, scrutinizing the client's 3D model for potential issues in wall thickness, draft angles, and material transitions that could lead to defects or manufacturing difficulties. Concurrently, advanced Mold Flow Analysis (MFA) simulates the injection molding process using software like Moldex3D. This virtual prototyping predicts how molten plastic will fill the mold, identifying potential weld lines, air traps, and pressure variations. It allows engineers to strategically optimize gate locations—the entry points for plastic—to ensure balanced filling, which is paramount for preventing warpage and achieving dimensional stability in the final part.

Phase 2: Strategic Material and Mold Steel Selection

Material selection is a pivotal cost and performance decision. For clock spring housings and components, Ansix Tech evaluates polymers based on a holistic set of requirements: high strength, excellent dimensional stability, resistance to creep, and reliable performance across a wide temperature range.

Table 1: Common Engineering Polymers for Automotive Clock Spring Components

The selection extends to the mold steel itself. For high-volume, long-production-run projects like automotive clock springs, Ansix Tech typically employs pre-hardened steels like P20 or H13 tool steel, chosen for their excellent toughness, resistance to thermal fatigue, and ability to maintain precision over millions of cycles.

Phase 3: Intelligent Mold Design – The Heart of Efficiency

The mold is where the digital blueprint becomes a physical reality, and its design is central to cost control. Ansix Tech engineers each subsystem for maximum efficiency:

Conformal Cooling Channels: Recognizing that cooling typically consumes over 50% of the cycle time, Ansix Tech employs a revolutionary approach. Using metal additive manufacturing (3D printing), they create cooling channels that conform perfectly to the contour of the mold cavity. Unlike traditional straight-drilled channels, these conformal systems extract heat uniformly and rapidly, eliminating hot spots that cause slow cooling and part warpage. This innovation alone can reduce cycle times by 15-30%, directly slashing the cost per part.

Runner and Gating Systems: The "highways" for molten plastic are designed using MFA data to minimize volume (reducing material waste) while ensuring balanced pressure to all cavities. Hot runner systems are often used to further reduce waste and improve fill consistency.

Ejection Systems: Precision-ejector pins, sleeves, and blades are strategically placed on non-cosmetic surfaces to ensure the delicate clock spring component is released flawlessly without marks or distortion, which is crucial for both function and appearance.

Phase 4: Manufacturing Validation and Process Mastery

With the mold manufactured via precision CNC machining and EDM processes, the focus shifts to the injection molding press. Here, Ansix Tech utilizes scientific molding principles, establishing a robust, data-driven process window rather than relying on trial and error.

Key challenges in clock spring molding, such as managing sink marks in thick sections or preventing warpage in thin flanges, are addressed upfront through DFM and then controlled in production through precise management of injection speed, packing pressure, and cooling profiles. Cavity pressure sensors provide a digital fingerprint for every shot, allowing for real-time monitoring and automatic rejection of any part that falls outside the perfect process window, ensuring built-in quality.

Phase 5: Quality Assurance and Rapid Delivery

Quality control is integrated throughout the manufacturing chain. First-article inspections using Coordinate Measuring Machines (CMM) verify all critical dimensions. During production, Statistical Process Control (SPC) charts track key metrics, while automated vision systems may perform 100% inspection for surface defects. For final delivery, components are packaged in customized, protective solutions designed to prevent damage in transit and facilitate handling at the customer's assembly line, completing a seamless flow from order to delivery.

Delivering Tangible Value: The Cost Reduction Imperative

Ansix Tech's comprehensive approach translates into direct, measurable cost savings for customers through several key levers:

*Table 2: Primary Cost-Saving Levers in Ansix Tech's Injection Molding Projects*

Conclusion: A Partner for Safety and Value

In the high-stakes arena of automotive safety components, the choice of a manufacturing partner carries profound implications for cost, quality, and reliability. Ansix Tech’s project experience—from semiconductor packaging to complex sensor housings—demonstrates a proven, holistic model where engineering excellence is harnessed specifically to drive down the total cost of ownership.

By investing in digital validation, innovative mold technologies like conformal cooling, and data-driven process control, Ansix Tech does more than manufacture parts. They engineer reliability and value directly into the DNA of critical components like the steering wheel airbag clock spring. In doing so, they provide automotive manufacturers with a decisive advantage: the confidence of unwavering safety, delivered at a cost that ensures competitiveness in an ever-evolving global market.
