Engineering Reliability: Inside Ansix Tech's Precision Manufacturing of Surgical Stapler Cartridges
In the high-stakes world of medical device manufacturing, where component failure is not an option, the production of a surgical stapler cartridge represents one of injection molding's most demanding challenges. These small, complex devices must function with absolute reliability during critical procedures, demanding micron-level precision, biocompatible materials, and flawless production consistency. For Ansix Tech, a leader in high-performance injection molding, a recent project to manufacture these life-critical components became a showcase for how deep engineering integration, from material science to final packaging, can deliver uncompromising quality while strategically controlling costs. This article delves into their holistic approach, revealing how a cartridge moves from concept to a sterile, packaged product ready for the operating room.
- The Critical Design and Market Imperative
A surgical stapler cartridge is a marvel of miniaturized mechanical engineering. It houses rows of precisely formed staples, a pusher system, and often a cutting blade, all within a polymer housing that must guide these elements with perfect alignment. The market requirements are unequivocal: zero defects, batch-to-batch consistency, and performance that meets stringent regulatory standards like ISO 13485 for medical devices. The design must facilitate sterilization (via autoclave, gamma radiation, or ethylene oxide), resist bodily fluids, and possess the exact mechanical properties—often a specific flexural modulus and impact strength—to interact flawlessly with the stapler’s metal jaws.
For Ansix Tech, the project began not with a mold drawing, but with a comprehensive Critical Design Review (CDR). This phase-gated process ensures every aspect of the part design is scrutinized for manufacturability, cost, and, above all, functional reliability in its end-use environment. The cornerstone of this stage is Design for Manufacturing (DFM), where engineers collaborate with the client to optimize the part geometry. Key considerations include uniform wall thickness to prevent sink marks and warpage, adequate draft angles (often a minimum of 1-2 degrees) for clean ejection, and the strategic placement of gates and parting lines to minimize cosmetic defects on critical surfaces. For a cartridge, this might involve redesigning internal ribs or snap-fit features to eliminate complex undercuts that would require costly mold actions.
- Prototyping and the Digital Validation Gateway
Before committing to high-cost production tooling, digital and physical prototyping de-risk the project. Ansix Tech employs sophisticated mold flow analysis (DFM) software, such as Moldex3D or Autodesk Moldflow, to simulate the Injection Process. This virtual testing predicts how the chosen plastic will fill the mold, allowing engineers to identify and eliminate potential defects like air traps, weld lines (which could weaken the structure), or uneven cooling long before steel is cut.
A pivotal outcome of this simulation is the optimization of the gate system—the point where molten plastic enters the cavity. For a multi-cavity mold producing several cartridges simultaneously, achieving perfect flow balance is paramount to ensure every cavity fills uniformly, guaranteeing identical part weight and dimensions. Following simulation, functional prototypes are often produced using rapid tooling or high-resolution 3D printing. These prototypes allow for real-world fit, form, and function testing, providing final verification and facilitating any last-minute design adjustments with minimal cost and time impact.
- The Science of Material Selection for Medical Devices
The choice of polymer is a strategic decision that irrevocably defines the cartridge's performance, sterility compatibility, and cost. Ansix Tech treats material selection as a foundational engineering discipline, drawing from an extensive portfolio of medical-grade polymers.
Table: Key Medical-Grade Polymer Considerations for Surgical Stapler Cartridges
For the surgical stapler cartridge project, the selection likely involved a high-performance polymer like PEI, PPS, or a glass-filled Polyamide (PA). The decision balances the need for strength, dimensional stability, and compatibility with the client's chosen sterilization method. Ansix Tech’s capability for custom material formulation is a significant advantage, allowing them to tailor a resin’s properties—such as adding colorants for part identification or modifiers to enhance lubricity—to the exact application need.
- Precision Mold Manufacturing: The Heart of the Process
The mold is the precision engine that will produce hundreds of thousands of identical cartridges. Its design and construction are where Ansix Tech’s expertise becomes tangible.
Mold Steel Selection: Given the abrasive nature of many medical-grade polymers and the need for a long production life with consistent quality, Ansix Tech selects premium steels. For high-volume medical production, pre-hardened steels like H13 or corrosion-resistant stainless steels like 420SS are common choices. These materials withstand wear, resist corrosion from cooling water and potential chemical exposure, and can be polished to a flawless finish necessary for easy part release and perfect cartridge surface quality.
Core System Design:
Cooling System/Water Channels: Cooling typically consumes over 50% of the cycle time. Ansix Tech prioritizes high-efficiency cooling layouts, often employing conformal cooling channels. Unlike traditional straight-drilled channels, conformal channels are 3D-modeled to follow the exact contour of the part cavity at a consistent distance. This innovation, sometimes made possible via metal 3D printing, enables uniform heat extraction, reducing cycle times by up to 30% and critically minimizing thermal-induced warpage.
Runner and Gate System: To minimize material waste (a key cost factor with expensive engineering plastics), a hot runner system is typically used. This keeps the plastic molten in the runners between shots. The gate design—often a submarine or pinpoint gate—is carefully engineered to allow clean, automatic degating, leaving a minimal vestige on the non-critical surface of the cartridge.
Ejection System: Ejecting the delicate cartridge without marks or distortion is vital. The system uses a calculated arrangement of ejector pins, sleeves, and blades, placed on robust sections of the part. Adequate venting is also meticulously designed along parting lines and at the end of fill paths to allow trapped air to escape, preventing burns or short shots.
- Mastering the Injection Molding Process and Validation

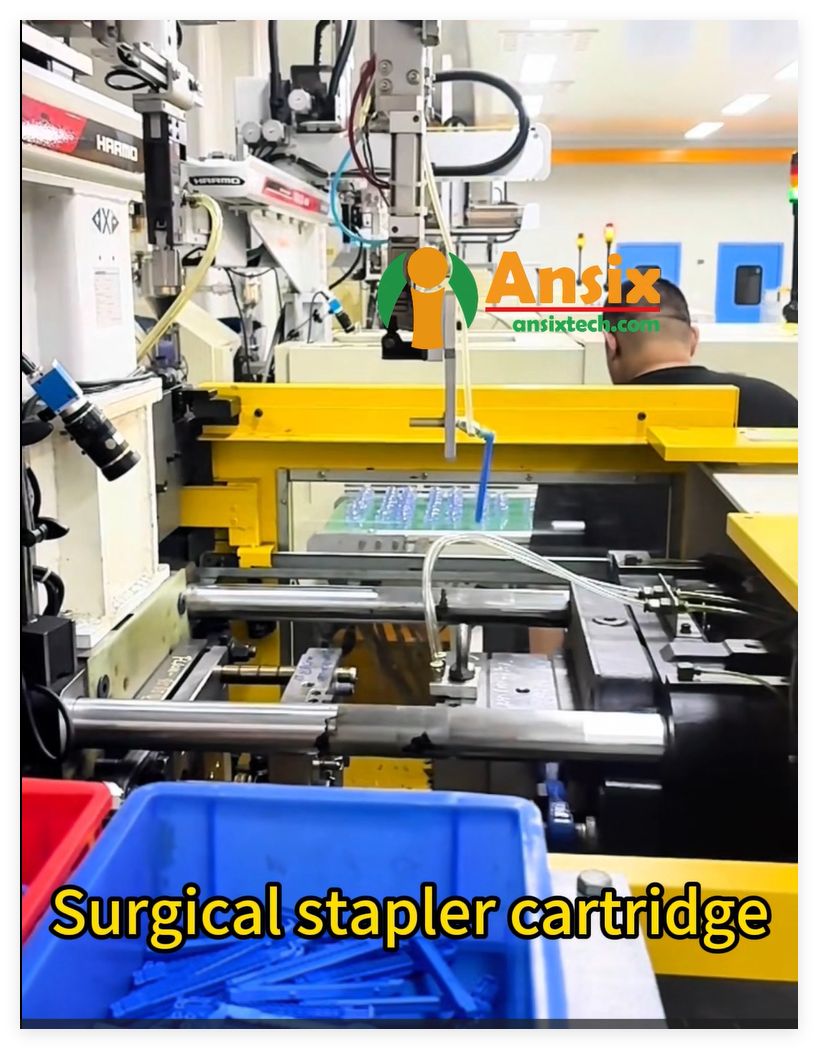

With the mold installed in a specially configured injection press, the focus shifts to process mastery. Standard machines are insufficient for high-performance polymers; Ansix Tech uses machines with barrels and screws capable of reaching and maintaining temperatures exceeding 400°C, equipped with closed-loop servo controls for shot-to-shot consistency.
Challenges and Optimization:
The thin walls and intricate internal features of a cartridge present specific challenges: flow hesitation in thin sections, sink marks where thick and thin walls meet, and warpage from uneven cooling or stress. Ansix Tech’s optimization strategy is scientific and data-driven.
Process Efficiency: They employ scientific molding principles to establish a robust, repeatable process window. Parameters like fill speed, pack/hold pressure, and cooling time are optimized not by guesswork but through data from cavity pressure sensors. This data provides a "fingerprint" of a good shot, allowing for real-time monitoring and adjustment.
Cost Control: Significant savings are engineered in. Reduced cycle time from conformal cooling directly lowers the cost per part. Energy consumption is minimized by fine-tuning barrel temperatures and hydraulic settings. Most importantly, scrap reduction is achieved through upfront simulation and in-process monitoring, driving first-pass yield rates above 99%.
Validation and Large-Scale Production Certification:
Before full-scale production, the process undergoes rigorous Manufacturing Validation. This includes First Article Inspection (FAI) using Coordinate Measuring Machines (CMM) to verify all critical dimensions against the CAD model. Process Validation runs establish that the molding process, under set parameters, consistently produces parts meeting all specifications. Documentation for Production Part Approval Process (PPAP) is generated, providing the client with full traceability and evidence that the manufacturing system is capable and ready for certified large-scale production.
- Quality Assurance, Packaging, and Rapid Delivery
Quality is not inspected in; it is built into every step. Ansix Tech implements a multi-layered quality control system:
Incoming Material Certification: Every batch of resin is verified.
In-Process Statistical Process Control (SPC): Key dimensions are measured and charted in real-time to detect any process drift.
Automated Vision Inspection: For high-volume runs, systems can perform 100% inspection for visual defects.
Packaging for medical devices is critical. Cartridges are cleaned, often in a controlled environment, and packaged in sealed, medical-grade tyvek or blister packs designed to maintain sterility and protect the components during shipping. The entire workflow, from order processing to logistics, is streamlined for rapid delivery, supporting clients' just-in-time inventory models and reducing their supply chain risk.
- The Ansix Tech Advantage: Delivering Reliability and Value
The surgical stapler cartridge project exemplifies Ansix Tech’s core value proposition: providing unmatched reliability through integrated control. By managing the entire chain—material science, precision mold manufacturing, and dedicated processing—under one technical philosophy, they eliminate the friction and finger-pointing common in segmented supply chains.
This integration is also the engine for significant cost reduction. Savings are achieved not through corner-cutting, but through intelligent value engineering:
Material Optimization: Recommending the most cost-effective polymer that reliably meets all performance specs.
Process Efficiency: Advanced mold design and scientific processing slash cycle times and energy use.
Yield Maximization: High first-pass yields and near-zero scrap dramatically reduce the total cost of ownership.
Table: Value Engineering Levers in Medical Device Molding
Conclusion: A Partner in Precision and Innovation
Surgical stapler cartridges, and medical devices at large, represent the apex of injection molding demands. Through the lens of this project, Ansix Tech demonstrates that meeting these demands requires more than just advanced machinery—it requires a holistic, engineering-driven partnership. Their deep industry experience allows them to anticipate challenges, their integrated capabilities enable them to solve them efficiently, and their commitment to value ensures that life-critical reliability is delivered in a commercially sustainable way.
For medical device OEMs navigating the complexities of material regulations, precision manufacturing, and cost pressures, partners like Ansix Tech, who can provide a seamless journey from design to delivery, are not just suppliers but vital collaborators in innovation. They prove that in the world of medical manufacturing, the highest quality and strategic cost control are not mutually exclusive goals, but achievable outcomes of superior engineering.
